Title: U.S. Space-Based Positioning, Navigation, and Timing:


1

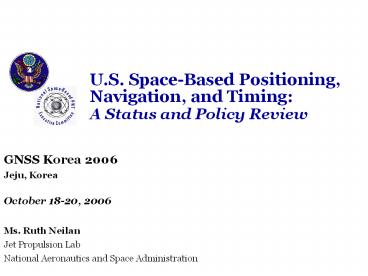

U.S. Space-Based Positioning, Navigation, and
Timing  A Status and Policy Review
GNSS Korea 2006 Jeju, Korea October 18-20,
2006 Ms. Ruth Neilan Jet Propulsion Lab National
Aeronautics and Space Administration
2
Overview
  • Background
  • U.S. Space-Based PNT Policy
  • GPS Modernization Status
  • International Cooperation

3
Global Positioning System
  • Baseline 24 satellite constellation in medium
    Earth orbit
  • Global coverage, 24 hours a day, all weather
    conditions
  • Satellites broadcast precise time and orbit
    information on L-band radio frequencies
  • 3 dimensional position worldwide
  • Two types of services
  • Civil (free of direct user fees)
  • Military (U.S. and Allied military)
  • Three system elements
  • Space
  • Ground control
  • User equipment

4
GPS is a Global Public Service
  • Free access to civilian signals
  • One-way broadcast, like FM radio
  • Public domain documentation
  • Anyone can develop user equipment
  • Worldwide utility providing consistent,
    predictable, dependable performance
  • Critical component of global information
    infrastructure
  • Owned and operated by the U.S. Government
  • Paid for by U.S. taxpayers
  • Guided at a national level as multi-use asset
  • Acquired and operated by Air Force on behalf of
    USG

Available NowEmpowering the Future
5
What is Space-Based PNT and GPS?
  • Space-based positioning, navigation, and timing
    (PNT) includes the global navigation satellite
    systems (e.g. GPS, GLONASS, Galileo, etc.) and
    their augmentations
  • GPS is a space-based radio-navigation system
  • Satellites broadcast precise and synchronized
    time signals and data to allow users to estimate
    their position, velocity, and time
  • Augmentations improve performance of space-based
    PNT systems such as GPS

6
Current Constellation
29 Operational Satellites (Baseline
Constellation 24)
  • 28 Block II/IIA/IIR satellites operational
  • 1 Block IIR-M satellite operational
  • Transmitting new second civil signal (L2C)
  • Continuously assessing constellation health to
    determine launch need
  • New IIR-M satellite launched Sep 06
  • 6 remaining Block IIR-M satellites
  • Next launch November 2006
  • Global GPS civil service performance commitment
    met continuously since Dec 1993

7
Recent Launches
Providing worldwide position, navigation timing
GPS IIR-1120 Mar 04 50th GPS Satellite
GPS IIR-12 23 Jun 04
GPS IIR-13 06 Nov 04
GPS IIR-14/15(M) 25 Sep 05 and 25 Sep
06 Modernized GPS Satellites
8
U.S. Augmentations
9
International Augmentations
10
Overview
  • Background
  • U.S. Space-Based PNT Policy
  • GPS Modernization Status
  • International Cooperation

11
U.S. 2004 Policy
  • First U.S. national policy was titled
  • U.S. GPS Policy 1996
  • U.S. Space-Based Positioning, Navigation, and
    Timing (PNT) Policy
  • Signed on December 8, 2004
  • Recognized changing national and international
    scene since 1996
  • Updated U.S. policy while retaining principles in
    previous policy

12
2004 Policy Objectives
  • Improve the performance of space-based PNT
  • Ensure civil services exceed, or are at least
    equivalent to, those of foreign civil space-based
    PNT services
  • Includes robust resistance to interference for
    civil, commercial, homeland security, and
    scientific users worldwide
  • Provide space-based civil PNT services free of
    direct user fees on a continuous, worldwide basis
  • Civil, commercial, homeland security and
    scientific use
  • Provide uninterrupted access to U.S. space-based
    PNT services for U.S./allied national security
    purposes

13
2004 Policy Objectives (contd)
  • Provide open, free access to information
    necessary to use these civil services
  • Improve capabilities to deny hostile use of any
    space-based PNT services
  • Without unduly disrupting civil and commercial
    access
  • Maintain the GPS as a component of multiple
    sectors of the U.S. Critical Infrastructure
  • Ensure that foreign PNT systems are interoperable
    with GPS
  • Or, at a minimum, are compatible

14
2004 U.S. Policy Summary
  • Demonstrates continued U.S. Government commitment
    to space-based PNT for all stakeholders
  • Provides framework for public/private decision
    makers
  • Improves ability to coordinate efforts across the
    various agencies of the U.S. Government
  • Creates basis for meaningful dialogue between
    service providers and end users
  • Promotes common standards for worldwide
    interoperability

15
Policy Implementation
  • Established a stronger National Space-Based PNT
    Executive Committee IGEB disestablished
  • Chaired by Deputy Secretaries of Defense and
    Transportation
  • Membership includes State, Commerce, Homeland
    Security, JCS, and NASA
  • Supported by a new National Coordination Office
  • National Coordination Office for Space-Based PNT
    was established on November 1, 2005
  • Director, Deputy Director, and staff from the
    Departments and Agencies

16
Organizational Structure
WHITE HOUSE
Defense
Transportation
NATIONALSPACE-BASED PNT EXECUTIVE
COMMITTEE Co-Chairs Defense, Transportation
State
ADVISORYBOARD Sponsor NASA
Commerce
Homeland Security
NASA
COORDINATIONOFFICE Host Commerce
Joint Chiefs of Staff
17
National Coordination Office
  • Facilitates information sharing, coordination,
    and issue resolution regarding space-based PNT
    across the U.S. Government
  • Evaluates plans to modernize the U.S. space-based
    PNT infrastructure
  • Conducts or oversees space-based PNT studies and
    analyses
  • Represents the National Executive Committee
  • As well as with the private sector and
    representatives of foreign governments

18
Web-based Information
  • PNT.gov established to disseminate information on
    the National Executive Committee
  • Contains information on policy, ExCom Membership,
    Policy, the Advisory Board, frequently asked
    questions, and recent public presentations
  • GPS.gov established to disseminate information on
    GPS applications
  • Brochure on GPS applications available for
    download
  • Copies available upon request
  • Contains additional links to various other
    websites

19
Overview
  • Background
  • U.S. Space-Based PNT Policy
  • GPS Modernization Status
  • International Cooperation

20
GPS Modernization
  • For all users
  • System-wide improvements in accuracy,
    availability, integrity, and reliability
  • Backward compatibility
  • For civil users
  • Higher standalone accuracy
  • Robustness against interference
  • Improved indoor, mobile, and urban use
  • Interoperability with other GNSS constellations
  • Maintains international competitiveness

21
GPS Modernization (contd)
Increasing System Capabilities w Increasing
Defense / Civil Benefit
Block IIA/IIR
Block III
Block IIR-M, IIF
  • Backward compatibility
  • 4th civil signal (L1C)
  • Increased accuracy
  • Increased anti-jam power
  • Assured availability
  • Increased security
  • System survivability
  • IIR-M IIA/IIR capabilities plus
  • 2nd civil signal (L2C)
  • M-Code (L1M L2M)
  • IIF IIR-M capability plus
  • 3rd civil signal (L5)
  • Anti-jam flex power
  • Basic GPS
  • Standard Service (16-24m SEP)
  • Single frequency (L1)
  • Coarse acquisition (C/A) code navigation
  • Precise Service (16m SEP)
  • Y-Code (L1Y L2Y)
  • Y-Code navigation

22
Second Civil Signal (L2C)
  • Designed to meet commercial needs
  • Freely available since Dec 2005
  • Currently on 2 satellites
  • Will be on all future satellites
  • 24 satellites - 2014
  • Expected to generate over 5 billion in user
    productivity benefits

Benefits existing professional receivers
Increases accuracyfor consumers
Supports miniaturization, possible indoor use
23
Third Civil Signal (L5)
  • Available on 1st IIF 2008
    24 satellites 2016
  • Designed to meet demanding requirements for
    transport safety
  • May also enable global, centimeter-level accuracy
    using new techniques
  • Opportunity for international interoperability

24
Fourth Civil Signal (L1C)
  • Designed with international partners for
    interoperability
  • Specifically for interoperability with the
    Galileo Open Service
  • Modernized civil signal at L1 frequency
  • Original signal retained for backward
    compatibility
  • More robust navigation across a broad range of
    user applications
  • Improved performance in challenged tracking
    environments

Under trees
Inside cities
25
GPS III
  • Next-generation satellites are needed to
    accommodate increasing capabilities
  • First launch 2013 24 satellites 2021
  • Civil benefits
  • Delivers full operational capability for L2C and
    L5
  • In combination with GPS IIR-M and IIF satellites
  • Provides L1C for interoperability with Galileo,
    QZSS
  • Significant increase in system accuracy
  • Improved availability of accuracy with integrity
  • Revised acquisition strategy
  • Incremental development approach to reduce risk,
    increase flexibility
  • Separate contracts for space and ground segments
    to ensure best technology and most efficient
    implementation

26
GPS III Proposed Accuracy
  • Horizontal Accuracy (95) 1.8 meters
  • Vertical Accuracy (95) 3.19 meters
  • Timing 5.2 nanoseconds
  • Assumptions
  • - Global Average
  • - Dual frequency
  • - SIS URE 0.25 meters
  • - UEE 0.8 meters
  • - SS-SYS-800 GPS III System Spec

27
Overview
  • Background
  • U.S. Space-Based PNT Policy
  • GPS Modernization Status
  • International Cooperation

28
Global Navigation Satellite Services (GNSS)
Expanding
  • Sep 2005 2nd civil GPS signal
  • Dec 2005 first Galileo test satellite
  • Dec 2005 3 GLONASS satellites
  • This year European EGNOS operational
  • Japan preparing for MSAS ops in 2007 and QZSS
  • India moving forward with GAGAN and IRNS
  • China Beidou, Compass

Interoperability key to seamless global operations
29
U.S. International Cooperation
Outlined in 2004 Presidential Policy on
Space-Based Positioning, Navigation, and Timing
(PNT)
  • Provide civil GPS and augmentation services free
    of direct user fees on a continuous, worldwide
    basis
  • Provide open, free access to information needed
    to develop equipment
  • Improve performance of civil GPS and
    augmentations to meet or exceed that of
    international systems
  • Encourage international development of PNT
    systems based on GPS
  • Seek to ensure international systems are
    interoperable with civil GPS and augmentations
  • Or at a minimum, are compatible
  • Address mutual security concerns with
    international providers to prevent hostile use

30
U.S. International Cooperation (contd)
  • Ongoing cooperation with Europe, Japan, Russia
  • Compatibility and interoperability
  • National security
  • Level playing field in global markets
  • Seeking formal relations with Australia, India,
    Brazil
  • Multilateral cooperation
  • U.N. International Committee on GNSS
  • ICAO, IMO, NATO

31
GPS-Galileo Agreement
  • In 2004, United States and European Community
    signed agreement on GPS-Galileo cooperation
  • Recognizing importance of compatibility and
    interoperability for all parties
  • Agreed to spectrally separate signals for
    military, civilian, and public regulated services
  • Agreed to implement a common, open, civil signal
    on both Galileo and GPS III, free of direct user
    fees
  • Working groups establishedto continue
    cooperation
  • Compatibility and Interoperability
  • Trade and Commercial Applications
  • Next-Generation GNSS
  • Security Issues

June 26, 2004, press conference at U.S.-EU Summit
in Ireland (U.S. Sec. of State Colin Powell,
Irish Foreign Minister Brian Cowen, EU
Vice-President Loyola De Palacio)
32
Japan
  • Worlds largest consumer of GPS technology
  • U.S.-Japan cooperation began in 1998
  • Initially focused on interoperability with MSAS,
    Japans GEO-based augmentation system
  • Promotes common principles such as free market
    access
  • Annual plenary meetings, technical working groups
  • Current focus is on Quasi-Zenith Satellite System
    (QZSS)
  • Regional system to complement, augment GPS over
    Japan
  • Will improve performance in urban canyons and
    mountains
  • Will freely broadcast GPS L1C, L2C, L5 signals
  • GPS-QZSS interoperability achieved

MT-SAT used for MSAS
33
Russia
  • Cooperation started in 2004
  • Working groups are pursuing GPS-GLONASS
    interoperability
  • Enhanced PNT through combined service
  • Combined search and rescue capabilities
  • Currently pursuing formal cooperation agreement

GLONASS satellite
34
International Committee on GNSS
  • Multilateral group chartered through United
    Nations
  • First meeting December 2005
  • Next meeting November 2006
  • Purpose Promote use of GNSS to improve
    efficiency and security of transport, search and
    rescue, geodesy, etc., particularly in developing
    countries
  • Coordination among GNSS providers to ensure both
    compatibility and interoperability
  • Assistance to developing countries in use of PNT
    services
  • Focal point for international information
    exchange
  • Forum for addressing future user needs

35
Summary
  • U.S. policy encourages and promotes worldwide use
    of civil GPS and augmentations
  • International cooperation is a priority
  • Supporting and promoting interoperability and
    compatibility with other GNSS systems to include
  • Europes Galileo, Russias GLONASS, and Japans
    QZSS
  • Opportunity for partnership with all nations
  • GPS getting better and will continue to improve
  • Augmentations enable high performance today
  • New GPS signal (second civil signal) now
    available
  • Many additional upgrades in the future

36
Contact Information
Ms. Ruth E. Neilan Jet Propulsion Laboratory
(JPL) IGS Central Bureau M/S 238-540 4800 Oak
Grove Drive Pasadena, California 91109 Ph
818-354-8330 Fax 818-393-6686
Ruth.Neilan_at_jpl.nasa.gov Presentation and other
GPS information available PNT.gov
37
Contact Information
Michael E. Shaw Director U.S. National
Space-Based PNT Coordination Office 14th and
Constitution Ave, N.W. Washington, D.C. 20230
Ph (202) 482-5809 Fax (202)
482-4429 Michael.Shaw_at_pnt.gov Presentation and
other GPS information available PNT.gov GPS.gov
38
  • Backups

39
Baseline GPS and Galileo Signal Structures
  • Civil GPS
  • L5 BPSK-10 1176.45 MHz
  • L2 BPSK-1 1227.6 MHz
  • L1 BPSK-1 with a future
  • BOC (1,1) 1575.42 MHz
  • Galileo (as currently understood)
  • E5A/E5B 2 x BPSK-10 or BOC (15,10)
  • 1164-1214 MHz
  • E6 BPSK-5 BOC (10,5) 1279 MHz
  • E2/L1/E1 BOC (1,1) OS BOC (15,2.5)
  • cosine phased PRS
    1575.42 MHz

C/A
CS
OS/GPS III
PRS
PRS
E5b
L5
E5a
M
P(Y)
L1 (1575.42 MHz)
E6 (1278.75 MHz)
L2 (1227.6 MHz)
L5/E5A (1164-1214
E5b MHz)
U.S. Europe have agreed to a common baseline L1
open civil signal that can become a global
standard and is compatible with
national/allied/NATO security
BOC(15,10) modulation option shown for E5a/E5b.
40
GPS Signal in Space Modernization
GPS IIR
L1 1575.42 MHz
L2 1227.6 MHz
GPS IIR-M
GPS IIF
L5 1176.45 MHz
GPS III
Galileo
E5a 1176.45 MHz
E5b 1207.14 MHz
E6 1278.75 MHz
L1 1575.42 MHz
Write a Comment
User Comments (0)
About PowerShow.com
