Metamodel Access Protocols for Extensible AspectOriented Modeling

1

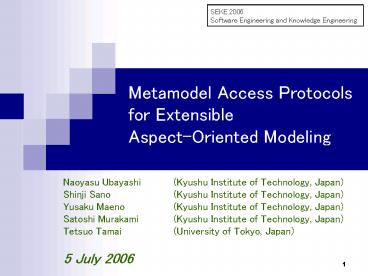

Metamodel Access Protocolsfor ExtensibleAspect-O
riented Modeling
SEKE 2006Software Engineering and Knowledge
Engineering

• Naoyasu Ubayashi (Kyushu Institute of Technology,
  Japan)
• Shinji Sano (Kyushu Institute of Technology,
  Japan)
• Yusaku Maeno (Kyushu Institute of Technology,
  Japan)
• Satoshi Murakami (Kyushu Institute of Technology,
  Japan)
• Tetsuo Tamai (University of Tokyo, Japan)
• 5 July 2006

2
Overview

• Motivation
• Metamodel Access Protocol MMAP
• Implementation
• Related work
• Conclusion

3
1. Motivation
4
What is Aspect Orientation ?

• Aspect-oriented programming (AOP) can separate
  crosscutting concerns including logging, error
  handling, and transaction.
• These concerns are modularized as aspects.

logging
5
AO Mechanism--- JPM Join Point Mechanism
advice
join point
pointcut
logging code
program execution points including method calls
and field access points
extract a set of join points related to a
specific crosscutting concern from all join points
raise effects at the join points
AspectJ
aspect Logging pointcut publiccall () call
(public (..)) before() publiccall()
logging()
6
Towards AO Modeling

• Recently, aspect orientation has been proposed
  for coping with concerns at the early stages of
  the software development phases including
  requirements analysis, domain analysis, and
  architecture design phases.
• We previously proposed a UML-based
  aspect-oriented modeling language called AspectM.

7
AspectM
Extension of JPM (Join Point Mechanism) in AOP
join point (class)
pointcut
advice
classA
classA classB
add new attributes add new operations
attributes new attributes
classA
attributes
operations new operations
operations
classB
classB
attributes
join point (class)
attributes new attributes
operations
operations new operations
classC
join point (class)
attributes
operations
8
AspectM JPM
PA(pointcut advice),CM(composition),NE(new
element),OC(open class),RN(rename),RL(relation)
9
Example of AspectM descriptions
pointcut classA classB
aspect
advice
ltlt OC gtgt addAttributeX
classA
classA
add new attributes
new attributes
classB
classeAandB class pointcut-bodycname(cla
ssA) cname(classB)
classC
classB
new attributes
merge classAandB add-attribute
advice-bodyattributeX
ltaspect nameaddAttributeX typeordinary
jpmOC" gt ltpointcut nameclasseAandB
typeclassgt ltpointcut-bodygt cname(classA)
cname(classB) lt/pointcut-bodygt lt/pointcutgt
ltadvice nameadd-attributeX typeadd-attribute
ref-pointcutclassAandBgt ltadvice-bodygt
attributeX lt/advice-bodygt lt/advicegt lt/aspectgt
10
AspectM is nice, but

• Although AspectM provides major JPMs, there might
  be situations in which a modeler wants to define
  a JPM specific to an application.
• For example, a modeler wants to capture a group
  of methods that are targets of an
  application-specific logging or transaction.
• However, current aspect-oriented modeling
  languages including AspectM do not allow a
  modeler to extend JPMs.

11
We want to use application-specific rich
vocabularies
aspect
class
12
Contribution

• We introduce a mechanisms called metamodel access
  protocol (MMAP) that allows an application
  modeler to access and modify the AspectM
  metamodel, an extension of the UML metamodel.
• MMAP enables a modeler to define a new JPM that
  includes application-specific join points,
  pointcut designators, and advice.

13
2. Metamodel access protocol MMAP
14
Two approaches forextending model elements in UML
Lightweight
An approach using UML profiles
Heavyweight
An approach that extends the UML metamodel by
using MOF (Meta Object Facility), a language for
modeling a metamodel
15
UML profile approach

• UML profiling mechanisms use stereotypes for
  introducing rich vocabularies.
• While an application modeler can easily introduce
  some kinds of application-specific JPMs, there
  are situations in which stereotypes as a mere
  annotation mechanism are insufficient the typing
  of tags is weak and we cannot declare new
  associations among UML metamodel elements.

16
Problems in UML profiles
aspect
Stereotypes as annotations cannot describe
relations among application-specific model
elements including DCEntityContract,
DCControllerContract, UniqueId, and DCLogger.
class
17
MOF approach

• MOF approach is very strong because all of the
  metamodel elements can be extended.
• However, it is not easy for an application
  modeler to extend the UML metamodel by using the
  full power of the MOF.

18
Our approach -- MMAP

• Our approach is a middle weight approach that
  restricts available extension by MOF.
• MMAP (Metamodel Access Protocol) aims at
  introducing an application-specific JPM. An
  application modeler can access and modify the
  AspectM metamodel by using protocols exposed by
  MMAP.
• The target of MMAP is not a tool developer that
  needs full access to the AspectM metamodel but an
  application modeler that wants to introduce rich
  vocabulary at small cost.

19
Our concept
meta level (MOF L2)
reify
modify the AspectM metamodel
protocols
extension point
MMAP
Editing-time reflection
base level (MOF L1)
reflect
introduce a new kind of application-specific model
element
new model element
model editor
20
MMAP
AspectM metamodel
Extension points

• Class, Attribute, Operation
• PA, CM, NE, OC, RN, RL

Extension operations

• define subclasses
• add attributes to subclasses
• create associations among subclasses

Primitive predicates

• predicates for navigating the AspectM metamodel

21
MMAP Primitive predicates
Predicate Explanation meta-class-of (mc, c) mc
is a metaclass of c member-of (m, c) m is a
member of a class c value-of (v, a) v is value
of an attribute a super-class-of (c1, c2) c1 is a
superclass of c2 related-to (c1, c2) c1 is
related to c2
22
Example
DCEntityContract_UniqueId_isUserAssigned (c)
meta-class-of ("DCEntityContract", c)
member-of (a, c) meta-class-of
("UniqueId", a) member-of
("isUserAssigned", "UniqueId") value-of
("true", "isUserAssigned")
member-of
meta-class-of
meta-class-of
Meta model
member-of
Base model
value-of
23
MMAP vs. MOP

• The idea of MMAP originates in the mechanisms of
  extensible programming languages, such as
  metaobject protocol (MOP) and computational
  reflection.
• MOP is useful at the modeling-level although the
  targets of MOP are different from those of MMAP
  the former focuses on execution behavior, and the
  latter focuses on model structures.

24
3. Implementation
25
Our Prototype AspectM Tools
Model Compiler
Model Editor
XMI (from UML diagrams)
AspectM metamodel
Prolog predicates
XSLT Model Tranformation (from Aspect diagrams)
UML diagrams
Aspect diagrams
XMI (UML)

• AspectM metamodel and application models are
  transformed to a set of Prolog predicates.
• Model transformation accesses these model
  elements by MMAP predicates.

Java code
26
4. Related work
27
Related Work
Extensible AOP language

• Three-part modeling framework ECOOP2003,
  H.Masuhara and G.Kiczales
• Parameterized AO interpreter ASE2005, N.Ubayashi
  et al.
• XAspect OOPSLA2003, M.Shonle, K.Lieberherr, and
  A.Shah
• Versatile kernel for multi-language AOP
  GPCE2005, E.Tanter and J.Noye

In AspectM, application-specific AOP features can
be introduced by using MMAP.
28
Related Work (Contd)
Domain-specific aspect orientation

• Domain-specific aspect-oriented modeling
  GPCE2003, J.Gray

Reflective editor

• Edit-time metaobject protocol ETMOP ODAL2006,
• A.D.Eisenberg and G.Kiczales

29
5. Conclusion
30
Conclusion

• We proposed MMAP that enables a modeler to define
  a new JPM that represents application-specific
  crosscutting concerns.
• Our approach is the first step towards extensible
  aspect-oriented modeling based on metamodel
  access protocols.
