Leonardo Ristori

1

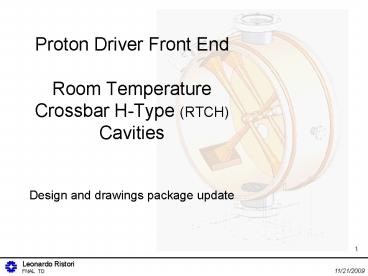

Proton Driver Front EndRoom Temperature
Crossbar H-Type (RTCH) Cavities Design and
drawings package update
2
Overview of cavities
All 16 Cavities are different in length and radius
3
Views Sections of RTCH 1 (ß0.0744)
4
Components
OFECu Cylinder
OFECu Bases (4)
OFECu Spokes (3-4)
Cu Cooling tubes
OFECu End wall Drift Tube
SST-OFECu 2layer End wall
Cu plated SST Vacuum Grid
5
Connections
RF Coupler Flange 3 ½ CF
Tuners Flanges 2 ½ CF
Cooling System ID Ø1/3 8mm
Solenoid Connection 2 NW40 Seal
Probe Flange 1 1/3 CF
Vacuum Flange 3 ½ CF
6
(No Transcript)
7
Design update
8
End wall design improvement

• Double layer wall to eliminate RF Cu wall
  deformations
• 3mm OFE Cu wall inside, 5mm SST wall outside
• Overall thickness of wall is 10mm (same as former
  design)
• 2mm gap between walls. Under vacuum, outside wall
  deforms lt1mm
• Two options for mounting
• Assemble SST-Cu walls together and braze to
  cavity
• Braze Cu wall on cavity first and Braze SST wall
  on cavity after eventual RF wall and DT
  corrections made

Previous design
Def940µm
smax120MPa
9
Cylinder design modified

• Due to temperature gradient, spokes expand more
  than cylinder
• Thinner cylinder deforms more to release stress
  on drift tubes (15)
• Deformations of cylinder are still under
  acceptable limits

Tmax34C
smax38.3 MPa
10
Drawings Package update

• From
• Providing not many drawings of finished cavity
  considered as a single part
• Risk of permanent contacts with all vendors
• To
• Providing more self-explanatory package where
  every obvious operation is specified (i.e.
  welding, brazing, )
• Some options are still left to vendors

11
Drawings package outline
12
Full Assembly Drawing
13
Brazing Assembly Drawing
14
Simple brazing features
Cylinder Part drawing
15
Base Part drawing
Brazing option
Spoke Part drawing
16
Tuner Port Part drawing
Probe Port Part drawing
RF Port Part drawing
Vacuum Port Part drawing
17
End wall Assembly Drawing
Update in progress
18
Update in progress
End wall Part drawing
Drift Tube Part drawing
19
Tubes Part drawing
20
Notes on fabrication of Spokes

• Spokes will have the highest surface quality
  compared to the other cavity elements
• Higher losses
• Train vendor
• Option of fabricating in 3 brazed parts is left
  open to vendors (option is specified anyways)
• Spokes in cavities with bigger beta may require
  reinforced drift tubes (Cu plated SST is an
  option)

21
Longitudinal dimensions
22
3 4 Spokes Transition
