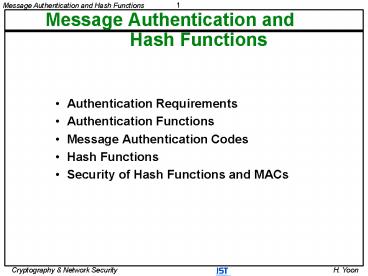

Message Authentication and Hash Functions

1
Message Authentication and Hash Functions

• Authentication Requirements
• Authentication Functions
• Message Authentication Codes
• Hash Functions
• Security of Hash Functions and MACs

2
Authentication Requirements

• Kind of attacks (threats) in the context of
  communications across a network
• Disclosure
• Traffic analysis
• Masquerade
• Content modification
• Sequence modification
• Timing modification
• Repudiation
• Measures to deal with first two attacks
• In the realm of message confidentiality, and are
  addressed with encryption
• Measures to deal with items 3 thru 6
• Message authentication
• Measures to deal with items 7
• Digital signature

3
Authentication Requirements

• Message authentication
• A procedure to verify that messages come from the
  alleged source and have not been altered
• Message authentication may also verify sequencing
  and timeliness
• Digital signature
• An authentication technique that also includes
  measures to counter repudiation by either source
  or destination

4
Authentication Functions
Authentication Functions

• Message authentication or digital signature
  mechanism can be viewed as having two levels
• At lower level there must be some sort of
  functions producing an authenticator a value to
  be used to authenticate a message
• This lower level functions is used as primitive
  in a higher level authentication protocol
• Three classes of functions that may be used to
  produce an authenticator
• Message encryption
• Ciphertext itself serves as authenticator
• Message authentication code (MAC)
• A public function of the message and a secret key
  that produces a fixed-length value that serves as
  the authenticator
• Hash function
• A public function that maps a message of any
  length into a fixed-length hash value, which
  serves as the authenticator

5
Message Encryption
Authentication Functions

• Conventional encryption can serve as
  authenticator
• Conventional encryption provides authentication
  as well as confidentiality
• Requires recognizable plaintext or other
  structure to distinguish between well-formed
  legitimate plaintext and meaningless random bits
• e.g., ASCII text, an appended checksum, or use of
  layered protocols

6
Basic Uses of Message Encryption
Authentication Functions
7
Authentication Functions
Ways of Providing Structure

• Append an error-detecting code (frame check
  sequence (FCS)) to each message

8
Authentication Functions
Ways of Providing Structure - 2

• Suppose all the datagrams except the IP header is
  encrypted.
• If an opponent substituted some arbitrary bit
  pattern for the encrypted TCP segment, the
  resulting plaintext would not include a
  meaningful header

9
Authentication Functions
Confidentiality and Authentication Implications
of Message Encryption
10
Message Authentication Code
Authentication Functions

• Uses a shared secret key to generate a fixed-size
  block of data (known as a cryptographic checksum
  or MAC) that is appended to the message
• MAC CK(M)
• Assurances
• Message has not been altered
• Message is from alleged sender
• Message sequence is unaltered (requires internal
  sequencing)
• Similar to encryption but MAC algorithm needs not
  be reversible

11
Authentication Functions
Basic Uses of MAC
12
Authentication Functions
Basic Uses of MAC
13
Why Use MACs?
Authentication Functions

• i.e., why not just use encryption?
• Cleartext stays clear
• MAC might be cheaper
• Broadcast
• Authentication of executable codes
• Architectural flexibility
• Separation of authentication check from message
  use

14
Hash Function
Authentication Functions

• Converts a variable size message M into fixed
  size hash code H(M) (Sometimes called a message
  digest)
• Can be used with encryption for authentication
• E(M H)
• M E(H)
• M signed H
• E( M signed H ) gives confidentiality
• M H( M K )
• E( M H( M K ) )

15
Authentication Functions
Basic Uses of Hash Function
16
Authentication Functions
Basic Uses of Hash Function
17
Authentication Functions
Basic Uses of Hash Function
18
Message Authentication Codes
MACs

• MAC CK(M)
• Key length requirements
• Sufficient key length to thwart brute force
  attack

19
Brute-force Attacks on MACs
MACs

• Let k key length, n MAC length
• Suppose confidentiality is not employed i.e.,
  the opponent has access to plaintext messages and
  their associated MACs
• If k gt n
• Brute force gives 2(k-n) candidate keys
• Given known M1 and MAC1, with MAC1CK1(M1), the
  cryptanalyst can perform MACi CKi(M1) for all
  possible key values Ki.
• Al least one key is guaranteed to produce a match

• On average, a total of 2k/2n 2(k-n) keys will
  produce a match
• Second round (new M and MAC) reduces this to
  2(k-2n) candidate keys
• On average, this requires k/n rounds
• If k ? n, one round should suffice

20
Attacks on MACs
MACs

• Other attacks are possible, depending on the MAC
  algorithm
• E.g., consider the following MAC algorithm
• Let M (X1 X2 Xm) be a message that
  is treated as a concatenation of 64-bit blocks Xi
• Define ?(M) X1 ? X2 ? ... ? Xm Ck(M)
  DESK?(M)
• The opponent can attack the system as follows
• Replace Xi by Yi for i 1 to m-1
• Calculate Ym to produce the right checksum, and
  replace Xm by Ym
• Ym Y1 ? Y2 ? ... ? Ym-1 ? ?(M)
• The new message, Y1 thru Ym, with the original
  MAC will be accepted as authentic by the receiver
• With this tactic, any message of length 64 ?
  (m-1) bits can be fraudulently inserted

21
Requirements for MAC Functions
MACs

• Assume that an opponent knows the MAC function C
  but does not know K. Then the MAC function should
  have the following properties
• Given M and Ck(M), it must be computationally
  infeasible to construct M s.t. Ck(M) Ck(M)
• CK(M) should be uniformly distributed in the
  sense that for any M and M, PrCk(M) Ck(M)
  should be 2-n, where n is the length of the MAC
• Let M be equal to some known transformation on
  M. That is, M f(M). In that case, PrCk(M)
  Ck(M) 2-n,

22
MAC Based on DES
MACs

• Last block of DES CBC, with IV 0
• Referred to as Data Authentication Algorithm
  (FIPS PUB 113 and ANSI standard (X9.17))
• Data Authentication Code (DAC) consists of 16 to
  64 leftmost bits of ON

23
Hash Functions
Hash Functions

• h H(M)
• M is a variable-length message, h is a
  fixed-length hash value, H is a hash function
• The hash value is appended at the source
• The receiver authenticates the message by
  recomputing the hash value
• Because the hash function itself is not
  considered to be secret, some means is required
  to protect the hash value

24
Hash Function Requirements
Hash Functions

• H can be applied to any size data block
• H produces fixed-length output
• H(x) is relatively easy to compute for any given
  x
• H is one-way, i.e., given h, it is
  computationally infeasible to find any x s.t. h
  H(x)
• H is weakly collision resistant given x, it is
  computationally infeasible to find any y ? x
  s.t. H(x) H(y)
• H is strongly collision resistant it is
  computationally infeasible to find any x and y
  s.t. H(x) H(y)

25
Hash Function Requirements
Hash Functions

• One-way property is essential for authentication
• Weak collision resistance is necessary to prevent
  forgery
• Strong collision resistance is important for
  resistance to birthday attack

26
Simple Hash Functions
Hash Functions

• Operation of hash functions
• The input is viewed as a sequence of n-bit blocks
• The input is processed one block at a time in an
  iterative fashion to produce an n-bit hash
  function
• Simplest hash function Bitwise XOR of every
  block
• Ci bi1 ? bi2 ? ? bim
• Ci i-th bit of the hash code, 1 ? i ? n
• m number of n-bit blocks in the input
• bij i-th bit in j-th block
• Known as longitudinal redundancy check
• Not useful as a one-way function
• Less effective in some cases
• E.g., if only 7-bit out of 8-bit characters is
  used in text files, the 128-bit hash value is
  effectively 112-bit
• We will encounter strong hash functions in
  Chapter 9

27
Simple Hash Functions
Hash Functions

• Improvement over the simple bitwise XOR
• Initially set the n-bit hash value to zero
• Process each successive n-bit block of data as
  follows
• Rotate the current hash value to the left by one
  bit
• XOR the block into the hash value

28
Birthday Paradox for Birthday Attack
Birthday Attack

• Given a hash function H with n possible outputs
  and a specific value h, how many random inputs
  must we test before our chance of finding some x
  s.t. h H(x) is greater than ½ ?
• Obviously it is n/2
• For any single value y, Prh H(y) 1/n
• Equivalently, Prh ? H(y) 1-1/n
• If we generate k random values, the probability
  that none of them matches h is 1-1/nk
• The binomial theorem states that(1-a)k 1 - ka
  - (k(k-1)/2!)a2 (k(k-1)(k-2)/3!)a3
• For small a, this is approximately 1 - ka
• So the probability that one of the k random
  values matches is 1-(1-1/n)k ? k/n
• For probability ½, k ? n/2

29
Birthday Paradox
Birthday Attack

• Given k random inputs, what is the chance that
  any two of them produce the same output?
• Let Prn, k be the probability that among k
  independently selected random values taken from n
  possible values, there is at least one duplicate
  value
• Let Q(n, k) denote the probability of no
  duplicates
• Let N(k) be the number of different ways we can
  have k values with no duplicates
• N(1) n
• N(2) n ? n-1
• N(3) n ? n-1 ? n-2
• N(k) n ? n-1 ? n-2 ? n-k1 n!/(n-k)!
• Q(n, k) n!/((n-k)! ? nk)
• If we allow duplicates, the number of selections
  is nk
• Prn, k 1 - Q(n, k)
• Example Pr365, k is approximately ½ when k is
  23.

30
Birthday Paradox
Birthday Attack
31
Birthday Paradox - Generalization
Birthday Attack

• Rewriting, Prn, k 1 - (n ? (n-1) ? ?
  (n-k1))/nk 1 - (n-1)/n ? (n-2)/n ? ?
  (n-k1)/n 1 - (1 - 1/n) ? (1 - 2/n) ? ? (1 -
  (k-1)/n)
• Because (1-x) ? e-x for all x ? 0, we can
  writePrn, k ? 1 - (e-1/n ? e-2/n ? ?
  e-(k-1)/n)? 1 - e-(1/n 2/n (k-1)/n)? 1 -
  e-(k ? (k-1))/2n
• Solving for Prn, k ? 0.5, 1/2 1 - e-(k ?
  (k-1))/2n, so1/2 e-(k ? (k-1))/2n, so2 e(k
  ? (k-1))/2n, soln(2) (k ? (k-1))/2n
• For large k, k ? k-1, giving ln(2) ? k2/2n
• ln(2) ? 1.18, so we have 1.18 ? k2/2n, so k ?
  1.18 ?n
• In rough terms, k ? ?n

32
Birthday Paradox - Generalization
Birthday Attack

• Let a hash function H have m-bit output (i.e., 2m
  possible outputs). What is the value of k s.t.
  if H is applied to k random inputs, a duplicate
  is likely? (i.e., H(x)H(y) for some inputs x and
  y)
• Approximately k 2m/2

33
Birthday Paradox Overlap bet. Two Sets
Birthday Attack

• Given a random variable that is an integer with
  uniform distribution between 1 and n and two sets
  of k instances (k ? n) of the random variable,
  let R(n, k) be the probability that two sets are
  not disjoint i.e., the probability that there is
  at least one value found in both.
• What value of k is required s.t. R(n,k) gt 0.5 ?
• Approximately k ? ?n
• Suppose we have a hash function H, with 2m
  possible outputs (i.e., an m-bit output). Apply H
  to k random inputs to produce the set X and again
  to k additional random inputs to produce the set
  Y. What must be the value of k so that there is
  the probability of at least one match between the
  two sets i.e., H(x) H(y) for some inputs x ?
  X, y ? Y ?
• K 2m/2

34
Birthday Attack
Birthday Attack

• If the adversary can generate 2m/2 variants of a
  valid message and an equal number of fraudulent
  messages
• The two sets are compared to find one message
  from each set with a common hash value
• The valid message is offered for signature
• The fraudulent message with the same hash value
  is inserted in its place
• If a 64-bit hash code is used, the level of
  effort is only on the order of 232
• Conclusion the length of the hash code must be
  substantial

35
Birthday Attack
Generating 2m/2 Variants of Valid Messages

• Insert a number of
• space-backspace-space
• character pairs between
• words throughout the
• document.
• Variations could then be
• generated by substituting
• space-backspace-space
• in selected instances
• Alternatively, simply
• reword the message but
• retain the meaning

36
Block Chaining Technique Hash Function
Hash Function

• A number of proposals for hash functions based on
  using a cipher block chaining technique, but
  without the secret key
• Ravins proposal
• Divide a message M into fixed-size blocks M1, M2,
  , MN and use a conventional encryption system
  such as DES to compute the hash code G as follows
• H0 initial value
• Hi EMiHi-1
• G HN
• Similar to CBC technique, but no secret key
• As with any hash code, subject to the birthday
  attack
• If DES is used, and only a 64-bit hash code is
  produced, then the system is vulnerable
• Another version of birthday attack is possible

37
Birthday Attack to Block Chaining Techniques
Hash Function

• Assume the opponent intercepts a message with a
  signature in the form of an encrypted hash code
  and the unencrypted hash code is m bits long
• Use the algorithm (Ravins) to calculate the
  unencrypted hash code G
• Construct any desired message in the form Q1, Q2,
  , QN-2
• Compute Hi EQiHi-1 for 1 ? i ? (N-2)
• Generate 2m/2 random blocks for each block X,
  compute EXHN-2. Generate an additional 2m/2
  random blocks for each block Y, compute DYG.
• Based on birthday paradox, with high probability
  there will be an X and Y s.t. EXHN-2 DYG
• Form the message Q1, Q2, , QN-2, X, Y. This
  message has the hash code G and therefore can be
  used with the intercepted encrypted signature

38
Brute-Force Attack of Hash Functions
Security of Hash Functions and MACs

• Three desirable properties of hash functions
• One-way For any given code h, it is
  computationally infeasible to find x s.t. H(x)
  h
• Weak collision resistance For any given block x,
  it is computationally infeasible to find y ? x
  s.t. H(y) H(x)
• Strong collision resistance It is
  computationally infeasible to find any pair (x,
  y) s.t. H(y) H(x)
• Brute-force attack on n-bit hash code
• One-way and weak collision require 2n effort
• Strong collision requires 2n/2 effort
• ? If strong collision resistance is required (and
  this is desirable for a general-purpose secure
  hash code), 2n/2 determines the strength of hash
  code against brute-force attack
• Currently, two most popular hash codes, SHA-1 and
  RIPEMD-160, provide a 160-bit hash code length

39
Brute-Force Attack of MACs
Security of Hash Functions and MACs

• Desired security property of a MAC algorithm
• Computation resistance Given one or more
  text-MAC pairs (xi, CK(xi)), it is
  computationally infeasible to compute any
  text-MAC pair (x, CK(x)) for any new input x ?
  xi
• Brute-force attack on key space or MAC space
• Brute-force key space search for k-bit key
• See p.19
• Overall effort is roughly 2k
• Brute-force MAC space search for n-bit MAC value
• Overall effort is roughly 2n
• The level of effort for brute-force attack on a
  MAC algorithm is min(2k, 2n)
• It is required min(k, n) ? N, where N ? 128

40
Homework

• Prob. 8.2
• Prob. 8.4
• Prob. 8.5
• Prob. 8.6
