GIS in Water Resources

1

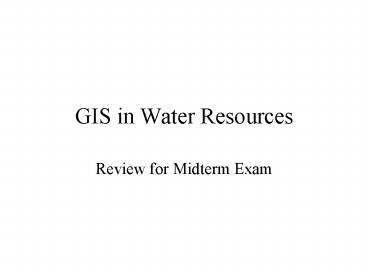

GIS in Water Resources

• Review for Midterm Exam

2
Latitude and Longitude in North America
Austin (30N, 98W) Logan (42N, 112W)
60 N
30 N
60 W
120 W
90 W
0 N
3
Length on Meridians and Parallels
(Lat, Long) (f, l)
Length on a Meridian AB Re Df (same for all
latitudes)
R
Dl
D
R
30 N
C
B
Re
Df
0 N
Re
Length on a Parallel CD R Dl Re Dl Cos
f (varies with latitude)
A
4

• Example What is the length of a 1º increment
  along
• on a meridian and on a parallel at 30N, 90W?
• Radius of the earth 6370 km.
• Solution
• A 1º angle has first to be converted to radians
• p radians 180 º, so 1º p/180 3.1416/180
  0.0175 radians
• For the meridian, DL Re Df 6370 0.0175
  111 km
• For the parallel, DL Re Dl Cos f
• 6370 0.0175
  Cos 30
• 96.5 km
• Parallels converge as poles are approached

5
Horizontal Earth Datums

• An earth datum is defined by an ellipse and an
  axis of rotation
• NAD27 (North American Datum of 1927) uses the
  Clarke (1866) ellipsoid on a non geocentric axis
  of rotation
• NAD83 (NAD,1983) uses the GRS80 ellipsoid on a
  geocentric axis of rotation
• WGS84 (World Geodetic System of 1984) uses GRS80,
  almost the same as NAD83

6
Vertical Earth Datums

• A vertical datum defines elevation, z
• NGVD29 (National Geodetic Vertical Datum of 1929)
• NAVD88 (North American Vertical Datum of 1988)
• takes into account a map of gravity anomalies
  between the ellipsoid and the geoid

7
Coordinate System
A planar coordinate system is defined by a
pair of orthogonal (x,y) axes drawn through an
origin
Y
X
Origin
(xo,yo)
(fo,lo)
8
Universal Transverse Mercator

• Uses the Transverse Mercator projection
• Each zone has a Central Meridian (lo), zones are
  6 wide, and go from pole to pole
• 60 zones cover the earth from East to West
• Reference Latitude (fo), is the equator
• (Xshift, Yshift) (xo,yo) (500000, 0) in the
  Northern Hemisphere, units are meters

9
UTM Zone 14
-99
-102
-96
6
Origin
Equator
-120
-90
-60
10
ArcInfo 8 Reference Frames

• Defined for a feature dataset in ArcCatalog
• Coordinate System
• Projected
• Geographic
• X/Y Domain
• Z Domain
• M Domain

11
X/Y Domain
(Max X, Max Y)
Long integer max value of 231 2,147,483,645
(Min X, Min Y)
Maximum resolution of a point Map Units /
Precision e.g. map units meters, precision
1000, then maximum resolution 1 meter/1000 1
mm on the ground
12
Network Definition

• A network is a set of edges and junctions that
  are topologically connected to each other.

13
Edges and Junctions

• Simple feature classes points and lines
• Network feature classes junctions and edges
• Edges can be
• Simple one attribute record for a single edge
• Complex one attribute record for several edges
  in a linear sequence
• A single edge cannot be branched

No!!
14
Polylines and Edges
15
Junctions

• Junctions exist at all points where edges join
• If necessary they are added during network
  building (generic junctions)
• Junctions can be placed on the interior of an
  edge e.g. stream gage
• Any number of point feature classes can be built
  into junctions on a single network

16
Connectivity Table
p. 132 of Modeling our World
J125
Junction
Adjacent Junction and Edge
E2
J124
E3
E1
J123
J126
This is the Logical Network
17
Flow to a sink
18
Eight Direction Pour Point Model
Water flows in the direction of steepest descent
19
Flow Direction Grid
20
Cell to Cell Grid Network Through the Landscape
21
Contributing Area Grid
Drainage area threshold gt 5 Cells
22
Delineation of Streams and Watersheds on a DEM
23
Stream Segments
24
Stream Segments in a Cell Network
5
5
25
Watershed Outlet
26
Watershed Draining to This Outlet
27
Watershed and Drainage Paths Delineated from 30m
DEM
Automated method is more consistent than hand
delineation
28
1000 Cell Threshold Exceeded at Stream Junction
989
510
1504 (gt1000)
29
Subwatersheds for Stream Segments
Same Cell Value
30
Vectorized Streams Linked Using Grid Code to Cell
Equivalents
Vector Streams
Grid Streams
31
Delineated Subwatersheds and Stream Networks
32
A Mesh of Triangles
Triangle is the only polygon that is always
planar in 3-D
Lines
Surfaces
Points
33
Tin Triangles in 3-D
(x3, y3, z3)
(x1, y1, z1)
(x2, y2, z2)
z
y
Projection in (x,y) plane
x
34
Delauney Triangulation
Maximize the minimum interior angle of
triangles No point lies within the circumcircle
of a triangle
Yes
No
35
Flow On a Triangle
36
Flow On a TIN
