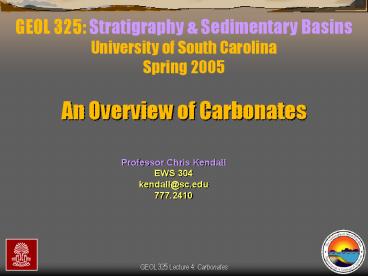

GEOL 325 Stratigraphy Sedimentary
BasinsUniversity of South CarolinaSpring 2005
An Overview of Carbonates
Professor Chris Kendall EWS 304 kendall_at_sc.edu
777.2410
2
Precipitated Sediments Sedimentary Rocks
  • An Epitaph to
  • Limestones Dolomites

3
Lecture Series Overview
  • sediment production
  • types of sediment and sedimentary rocks
  • sediment transport and deposition
  • depositional systems
  • stratigraphic architecture and basins
  • chrono-, bio-, chemo-, and sequence stratigraphy
  • Earth history

4
Sedimentary rocks are the product of the
creation, transport, deposition, and diagenesis
of detritus and solutes derived from pre-existing
rocks.
5
Sedimentary rocks are the product of the
creation, transport, deposition, and diagenesis
of detritus and solutes derived from pre-existing
rocks.
6
Sedimentary Rocks
  • Detrital/Siliciclastic Sedimentary Rocks
  • conglomerates breccias
  • sandstones
  • mudstones
  • Carbonate Sedimentary Rocks
  • carbonates
  • Other Sedimentary Rocks
  • evaporites
  • phosphates
  • organic-rich sedimentary rocks
  • cherts
  • volcaniclastic rocks

7
Lecture Outline
  • How photosynthesis, warm temperatures low
    pressures in shallow water control carbonate
    distribution
  • How carbonate sediment types is tied to
    depositional setting
  • How most mud lime mud has a bio-physico-chemical
    origin
  • Origins of bio-physico-chemical grains- ooids,
    intraclasts, pellets, pisoids
  • Separation of bioclastic grains- forams,
    brachs, bryozoan, echinoids, red calc algae,
    corals, green calc algae, and molluscs by
    mineralogy fabric
  • How CCD controls deepwater carbonate ooze
    distribution
  • How Folk Dunhams classifications are used for
    carbonate sediments
  • How most diagenesis, dolomitization,
    cementation of carbonates takes place in near
    surface trace elements are used in this
    determination
  • How Stylolites develop through burial
    solution/compaction

8
(No Transcript)
9
Limestones Form - Where?
  • Shallow Marine Late Proterozoic to Modern
  • Deep Marine Rare in Ancient commoner in
    Modern
  • Cave Travertine and Spring Tufa both Ancient
    Modern
  • Lakes Ancient to Modern

10
CO2 - Temperature Pressure Effect!
  • High temperatures, low pressure breaking waves
    favor carbonate precipitation
  • CO2 3H2O HCO3-1 H3O1 H2O CO3-2
    2H3O1
  • Carbon dioxide solubility decreases in shallow
    water and with rising in temperature
  • At lower pressure CO2 is released at higher
    pressure dissolves
  • HCO3-1 and CO3-2 are less stable at lower
    pressure but more stable at higher pressure
  • HCO3-1 and CO3-2 have lower concentration in warm
    waters but higher concentrations in colder waters

11
Calcium Carbonate - Solubilty
  • Note calcium carbonate dissociation CaCO3 Ca2
    CO3-2
  • CaCO3 is less soluble in warm waters than cool
    waters
  • CaCO3 precipitates in warm shallow waters but is
    increasingly soluble at depth in colder waters
  • CO2 in solution buffers concentration of
    carbonate ion (CO3-2)
  • Increasing pressure elevates concentrations of
    HCO3-1 CO3-2 (products of solubility reaction)
    in sea water
  • CaCO3 more soluble at higher pressures with
    decreasing temperature

12
Controls on Carbonate Accumulation
  • Temperature (climate) -Tropics temperate
    regions favor carbonate production true of
    ancient too!
  • Light Photosynthesis drives carbonate
    production
  • Pressure CCD dissolution increases with depth
  • Agitation of waves - Oxygen source remove CO2
  • Organic activity - CaCO3 factories nutrient
    deserts
  • Sea Level Yield high at SL that constantly
    changes
  • Sediment masking - Fallacious!

13
Limestones Chemical or Bochemical
Distinction between biochemical
physico-chemical blurred by ubiquitous
cyanobacteria of biosphere!
  • Shallow sea water is commonly saturated with
    respect to calcium carbonate
  • Dissolved ions expected to be precipitated as sea
    water warms, loses CO2 evaporates
  • Organisms generate shells skeletons from
    dissolved ions
  • Metabolism of organisms cause carbonate
    precipitation

14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
Biological Carbon Pump
  • Carbon from CO2 incorporated in organisms through
    photosynthesis, heterotrophy secretion of
    shells
  • gt 99 of atmospheric CO2 from volcanism removed
    by biological pump is deposited as calcium
    carbonate organic matter
  • 5.3 gigatons of CO2 added to atmosphere a year
    but only 2.1 gigatons/year remains the rest is
    believed sequestered as aragonite calcite

18
Carbonate Mineralogy
  • Aragonite high temperature mineral
  • Calcite stable in sea water near surface
    crust
  • Low Magnesium Calcite
  • High Magnesium Calcite
  • Imperforate foraminifera
  • Echinoidea
  • Dolomite stable in sea water near surface
  • Carbonate mineralogy of oceans changes with time!

19
(No Transcript)
20
TROPICS
TEMPERATE OCEANS
21
(No Transcript)
22
Basin
Ramp
Open Shelf
Restricted Shelf
23
Basin
Open Shelf
Rim
Restricted Shelf
24
Carbonate Components The Key
  • Interpretation of depositional setting of
    carbonates is based on
  • Grain types
  • Grain packing or fabric
  • Sedimentary structures
  • Early diagenetic changes
  • Identification of grain types commonly used in
    subsurface studies of depositional setting
    because, unlike particles in siliciclastic rocks,
    carbonate grains generally formed within basin of
    deposition
  • NB This rule of thumb doesnt always apply

25
Carbonate Particles
  • Subdivided into micrite (lime mud) sand-sized
    grains
  • These grains are separated on basis of shape
    internal structure
  • They are subdivided into skeletal non-skeletal
    (bio-physico-chemical grains)

26
Lime Mud or Micrite
27
Lime Mud or Micrite
28
WHITING
29
Three Creeks Tidal Flats
30
Lime Mud - Ordovician Kentucky
31
Carbonate Bio-physico-chemical Grains
  • Ooids
  • Grapestones and other intraclasts
  • Pellets
  • Pisolites and Oncolites

32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Ooids
36
(No Transcript)
37
Aragonitic Ooids
38
After Scholle, 2003
Aragonitic Ooids
39
Calcitic Aragonitic Ooids Great Salt Lake
40
Grapestones
41
Grapestones
42
Pellets
43
Pellets
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
After Scholle
49
Skeletal Particles - Mineralogy
  • Calcite commonly containing less than 4 mole
    magnesium
  • Some foraminifera, brachiopods, bryozoans,
    trilobites, ostracodes, calcareous nannoplankton,
    tintinnids
  • Magnesian calcite, with 4-20 mole magnesium
  • Echinoderms, most foraminifera, red algae
  • Aragonite tests
  • Corals, stromatoporoids, most molluscs, green
    algae, blue-green algae.
  • Opaline silica
  • sponge spicules radiolarians

50
(No Transcript)
51
Foraminifera
52
After Scholle
Foraminifera
53
Brachiopod
54
Brachiopods
55
Brachiopod
56
Bryozoan
57
Bryozoan
58
Trilobite Remains
Ostracod Remains
Calcispheres
59
Trilobite Carapice
60
Syntaxial cement
61
Red Calcareous Algae
62
(No Transcript)
63
Surface Water Organic Productivity
  • Marine algae cyanobacteria base of marine food
    chain
  • Fed by available nitrogen and phosphorus
  • Supplied in surface waters by deep water
    upwelling
  • Vertical upwelling drives high biological
    productivity at
  • Equator
  • Western continental margins
  • Southern Ocean around Antarctica
  • Produce biogenous oozes

64
(No Transcript)
65
Deep Water Carbonate Deposits
  • Deep water pelagic sediments accumulate slowly
    (0.1-1 cm per thousand years) far from land, and
    include
  • abyssal clay from continents cover most of deeper
    ocean floor
  • carried by winds
  • ocean currents
  • Oozes from organisms' bodies not present on
    continental margins where rate of supply of
    terriginous sediment too high organically
    derived material less than 30 of sediment

66
Carbonate Compensation Depth - CCD
  • Deep-ocean waters undersaturated with calcium
    carbonate opalline silica.
  • Biogenic particles dissolve in water column and
    on sea floor
  • Pronounced for carbonates
  • Calcareous oozes absent below CCD depth
  • CCD varies from ocean to ocean
  • 4,000 m in Atlantic.
  • 500 - 1,500 m in Pacific
  • Siliceous particles dissolve more slowly as sink
    not so limited in distribution by depth
  • Nutrient supply controls distribution of
    siliceous sediments

67
After James, 1984
68
(No Transcript)
69
After James, 1984
70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
73
(No Transcript)
74
(No Transcript)
75
(No Transcript)
76
(No Transcript)
77
Carbonate Cement Fabrics
  • Crust or rims coat grains
  • Syntaxial overgrowth optical continuity with
    skeletal fabric
  • Echinoid single crystals
  • Brachiopod multiple crystals
  • Blocky equant - final void fill

78
(No Transcript)
79
(No Transcript)
80
(No Transcript)
81
Isopachus Marine Cement
82
(No Transcript)
83
Meniscus Cement
84
(No Transcript)
85
(No Transcript)
86
(No Transcript)
87
(No Transcript)
88
(No Transcript)
89
(No Transcript)
90
(No Transcript)
91
(No Transcript)
92
(No Transcript)
93
(No Transcript)
94
(No Transcript)
95
(No Transcript)
96
Evaporation of mixed Waters
Influx of Magnesium Rich Continental Ground
Waters
Influx of sea water
97
(No Transcript)
98
(No Transcript)
99
(No Transcript)
100
(No Transcript)
101
(No Transcript)
102
(No Transcript)
103
(No Transcript)
104
(No Transcript)
105
(No Transcript)
106
(No Transcript)
107
Stylolites
Two-dimensional cross-sectonal views of
  • Dissolution seam(A),
  • Stylolite (B),
  • Highly serrate stylolite (C)
  • Deformed stylolite (D).

A few grains are shown schematically to emphasize
the change in scale from the previous figure

(after Bruce Railsback)
108
Stylolites
Intergranular contacts as seen in thin section
  • Tangential (A)
  • flattened (B)
  • concavo-convex (C)
  • sutured (D) (after
    Bruce Railsback)

109
Stylolites
After Bruce Railsback
110
Stylolites
  • After Bruce Railsback

111
Lecture Conclusions
  • Photosynthesis, warm temperatures low pressures
    in shallow water control carbonate distribution
  • Carbonate sediment types indicate depositional
    setting
  • Most mud lime mud has a bio-physico-chemical
    origin
  • Ooid, intraclast, pellet, and pisoid grains have
    bio-physico-chemical origin
  • Mineralogy fabric separate forams, brachs,
    bryozoan, echinoids, red calc algae, corals,
    green calc algae, and molluscan skeleletal
    grains
  • CCD controls deepwater ooze distribution
  • Folk Dunham are best way to classify carbonates
  • Most diagenesis, dolomitization, cementation of
    carbonates takes place in near surface crust
    trace elements can be used in this determination
  • Stylolites develop through burial
    solution/compaction

112
End of the Lecture
  • Lets go for lunch!!!

113
Global Climate Cycles
Global climatic cycles, referenced to geologic
periods (yellow), megasequences (light purple),
sea level cycles (blue), volcanic output (dark
purple).  (Redrawn modified L. Waite, 2002
after Fischer, 1984)
114
Phanerozoic Global Climate History
Frakes et al. (1992) have alternating cold warm
states ("cool" "warm" modes) at comparable time
scales to Fischer (1984) cycles but propose older
portion of Mesozoic greenhouse (Middle Jurassic
to Early Cretaceous) has a cool climate,
presence of seasonal ice at higher latitudes
(after L. Waite, 2002)
115
Copied from Steven Wojtal of Oberlin College
116
CO2 - Temperature Pressure Effect!
  • Carbonate precipitation favored by high
    temperatures, low pressure and breaking waves.
  • Solubility of carbon dioxide increases with depth
    and drops in temperature
  • CO2 3H2O HCO3-1 H3O1 H2O CO3-2
    2H3O1
  • At higher pressure CO2 dissolves is released at
    lower pressures
  • HCO3-1 and CO3-2 are more stable at higher
    pressures but less stable at lower pressures
  • HCO3-1 and CO3-2 reach higher concentrations in
    colder waters but lower concentration at warm
    waters

117
Copied from Steven Wojtal of Oberlin College
118
Calcium Carbonate - Solubilty
  • Note behavior of calcium carbonate CaCO3 Ca2
  • Concentration of carbonate ion (CO3-2) is
    buffered by amount of CO2 in solution
  • Increasing pressure elevates concentrations of
    HCO3-1 CO3-2 (products of solubility reaction)
    in sea water
  • CaCO3 is more soluble at higher pressures
  • Similar effect occurs with decreasing temperature
  • CaCO3 is more soluble in cool waters than warm
    waters
  • CaCO3 is increasingly soluble at depth in colder
    waters but precipitates in warm shallow waters

119
Copied from Steven Wojtal of Oberlin College
120
Copied from Suzanne O'Connell Wesleyan College
121
Copied from Suzanne O'Connell Wesleyan College
122
(No Transcript)
123
(No Transcript)
124
(No Transcript)
125
(No Transcript)
126
(No Transcript)
127
(No Transcript)
128
(No Transcript)
Write a Comment
User Comments (0)
About PowerShow.com
