ArcGIS Georeferencing Tool a quick how-to

1

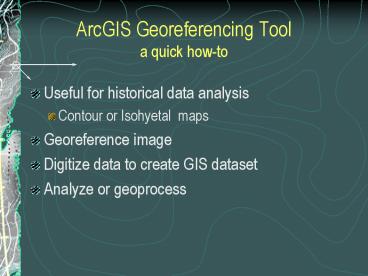

ArcGIS Georeferencing Toola quick how-to

• Useful for historical data analysis
• Contour or Isohyetal maps
• Georeference image
• Digitize data to create GIS dataset
• Analyze or geoprocess

2
Scan desired image

• Selected image needs some reference information
  that can be identified
• Example counties, lat/lon, state boundaries, etc

3
ArcGIS project

• Add boundary base layers
• counties, lat/lon, states
• View- Georefernce tool

4

• Lat/Lon lines

5

• Zoom to approximate image extent
• Drag-n-drop image
• Fit to display

6

• Attempt to see boundary features from both image
  and base layers
• Adjust zoom as needed

7

• Use tool to click and match features from Image
  to Map
• Auto-adjust snaps features together

8
Map
9
Snapped image to map
10
Map
11

• Continue process at selected areas across image
  until aligned as desired

12

• Create new shapefile for editing

13

• Digitize contours

14

• Attribute features

15

• New data set can be geoprocessed for further
  analysis

16
