Title: ITCC 1302 Module 6


1

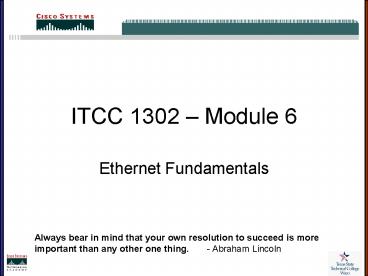

ITCC 1302 Module 6
  • Ethernet Fundamentals

Always bear in mind that your own resolution to
succeed is more important than any other one
thing. - Abraham Lincoln
2
Module 6 Objectives
  • At the end of this module you will be able to
  • Describe the basics of Ethernet technology
  • Explain Ethernet naming rules
  • Define how Ethernet and the OSI model interact
  • Describe the Ethernet framing process and
    structure
  • List Ethernet frame field names and purposes
  • Identify the characteristics of CSMA/CD
  • Describe the key aspects of Ethernet timing,
    interframe spacing and backoff time after a
    collision
  • Define Ethernet errors and collisions
  • Explain auto-negotiation in relation to speed and
    duplex

3
Introduction to Ethernet
  • Why Ethernet?
  • Simplicity ease of maintenance
  • Scalability
  • Reliability
  • Low cost of installation and upgrade
  • Gigabit Ethernet is extending out to
    metropolitan-area network (MAN) and wide-area
    network (WAN) standards
  • Ethernet conceived by Robert Metcalfe and
    coworkers at the DIX Palo Alto Research Center
  • Institute of Electrical and Electronics Engineers
    (IEEE) adopted it as a standard for LANs (802.3)
  • 10-Mbps Ethernet adequate in 1980s legacy now
  • Faster PCs, file sizes types demand more
    bandwidth
  • IEEE 100 Mbps Fast Ethernet standard in 1995
  • IEEE Gigabit Ethernet standards in 1998 and 1999

4
IEEE Ethernet Naming Rules
  • Ethernet family includes Legacy, Fast Ethernet,
    and Gigabit
  • Basic frame format and IEEE sublayers of OSI
    Layers 1 and 2 consistent across all forms of
    Ethernet
  • AS Ethernet expands to add new mediums or
    capability, IEEE issues a new supplement to the
    802.3
  • Abbreviated description (identifier) is assigned
    to the supplement
  • This abbreviated description consists of
  • A number indicating number of Mbps transmitted
  • The word base, indicating baseband signaling
  • Alpha character indicating type of medium (F
    fiber optical cable, T copper unshielded
    twisted pair)

5
Naming
  • Must be an unique addressing system for local
    frame delivery
  • 48 bit MAC addresses, expressed as 12 hex digits
  • First six hexadecimal digits identify the vendor,
    AKA Organizational Unique Identifier (OUI)
  • Last six hexadecimal digits represent the
    interface serial number, or another value
    administered by the specific equipment
    manufacturer
  • MAC addresses are sometimes referred to as
    burned-in addresses (BIA) and are copied into RAM
    when the NIC initializes
  • Layer 2 MAC headers and trailers are added to
    upper layer data
  • Upper layer data is encapsulated by layer 2
    header/trailer
  • NIC uses the MAC address to assess whether the
    message should be passed onto the upper layers of
    the OSI model

6
Layer 2 Framing
  • Framing is Layer 2 encapsulation
  • Frame is the Layer 2 protocol data unit (PDU)
  • Single generic frame has sections called fields,
    with each field composed of octets
  • Field Names
  • Start frame
  • Address
  • Length / type
  • Data
  • Frame check sequence
  • Frames contain naming information, such as the
    name of the source node and destination node (MAC
    addresses)
  • The reason for sending frames is to get upper
    layer data, ultimately the user application data,
    from the source to the destination

7
Ethernet Frame Structure
  • Data link layer frame structure is nearly
    identical for all speeds
  • Physical layer Ethernet versions of are different
    with each speed having a distinct set of
    architecture design rules
  • Original DIX Ethernet had the Preamble and Start
    Frame Delimiter (SFD) combined into a single
    field
  • Length/Type field was only listed as Length in
    the early IEEE versions and only as Type in the
    DIX version
  • Ethernet II Type field is incorporated into
    current 802.3 frame
  • Receiving node determines which higher-layer
    protocol is present in an incoming frame by
    examining the Length/Type field
  • If two-octet value is equal to or greater than
    0x600 the frame is interpreted according to the
    Ethernet II type code

8
Ethernet Frame Fields
  • 802.3 Ethernet Frame Fields are
  • Preamble - alternating pattern of 1s and 0s used
    for timing synchronization in the asynchronous 10
    Mbps and slower implementations of Ethernet.
    Faster versions of Ethernet are synchronous,
    while redundant is retained for compatibility.
  • Start Frame Delimiter - consists of a one-octet
    field, marks the end of timing information.
  • Destination Address - MAC destination address,
    can be unicast, multicast (group), or broadcast
    (all nodes).
  • Source Address - MAC source address, generally
    unicast address of transmitting node
  • Length/Type - supports two different uses. If
    the value is less than 1536 decimal, 0x600
    (hexadecimal), then the value indicates length.
    If the value is equal to or greater than 1536
    decimal (0600 hexadecimal), the value indicates
    that the type and contents of the Data field are
    decoded per the protocol indicated
  • Data and Pad - may be of any length that does not
    cause the frame to exceed the maximum frame size.
    The maximum transmission unit (MTU) for Ethernet
    is 1500 octets
  • FCS - contains a four byte CRC value that is
    created by the sending device and is recalculated
    by the receiving device to check for damaged
    frames

9
Ethernet Frame Fields
10
Media Access Control
  • MAC protocols determine which computer is allowed
    to transmit data
  • Two broad categories of Media Access Control,
    deterministic (taking turns) and
    non-deterministic (first come, first served).
  • Deterministic protocols include Token Ring and
    FDDI
  • Non-deterministic protocols use a first-come,
    first-served approach such as Ethernet
  • Three common Layer 2 technologies are Token Ring,
    FDDI, and Ethernet

11
MAC Rules and Collision Detection / Backoff
  • Ethernet is a shared-media broadcast technology
  • Access method CSMA/CD uses performs three
    functions
  • Transmitting/receiving data packets (from layer
    3)
  • Decoding data frames checking them for valid
    addresses
  • Detecting errors within data frames or on the
    network
  • With CSMA/CD, devices with data to transmit must
    listen-before-transmit
  • Networking devices detect a collision when the
    amplitude of the signal on the networking media
    increases
  • When a collision occurs, each transmitting node
    will continue to transmit for 56 timing bits to
    ensure that all devices see the collision
  • Once all devices have detected the collision a
    backoff algorithm is invoked and transmissions
    stop
  • When the delay period expires, devices attempt
    access

12
MAC Rules and Collision Detection / Backoff
13
Interframe Spacing and Backoff
  • Minimum spacing between two non-colliding frames
    is called the interframe spacing
  • Measured from last bit of the FCS field of the
    first frame to the first bit of the preamble of
    the second frame
  • After frame is sent, stations on a 10-Mbps
    Ethernet wait a minimum of 96 bit-times (9.6
    microseconds) before they may legally transmit
    the next frame
  • Faster Ethernet spacing remains 96 bit-times,
    time interval is shorter
  • After a collision, stations allow media to become
    idle (full interframe spacing), then stations
    that collided must wait an additional and
    potentially progressively longer period of time
    before attempting to retransmit the collided
    frame
  • Waiting period designed to be random so two
    stations do not have same time out period
  • If MAC layer is unable to send the frame after
    sixteen attempts, it gives up and generates an
    error to the network layer

14
Types of Collisions
  • Local - collision is detected on the local
    segment only when a station detects a signal on
    the RX pair at the same time it is sending on the
    TX pair
  • Remote With a remote collision, a frame that is
    less than the minimum length, has an invalid FCS
    checksum, but does not exhibit the local
    collision symptom of over-voltage or simultaneous
    RX/TX activity
  • Late - Collisions occurring after the first 64
    octets are called late collisions". The most
    significant difference between late collisions
    and collisions occurring before the first 64
    octets is that the Ethernet NIC will retransmit a
    normally collided frame automatically, but will
    not automatically retransmit a frame that was
    collided late

15
Ethernet Errors
  • Local and remote collisions are normal operation,
    late collisions are an error
  • Jabber is defined in the 802.3 standard as a
    transmission of at least 20,000 to 50,000 bit
    times. Jabber is called a long frame
  • A long frame is longer than the maximum legal
    size and takes into consideration whether or not
    the frame was tagged. This error usually means
    that jabber was detected
  • A short frame is a frame smaller than the minimum
    legal size of 64 octets, with a good frame check
    sequence. Some protocol analyzers and network
    monitors call these frames runts".
  • Runt may refer to short frames with a valid FCS
    checksum although it usually refers to collision
    fragments

16
Ethernet Auto-Negotiation
  • As Ethernet grew from 10 to 100 to 1000 Mbps, it
    had to be interoperable
  • Auto-Negotiation of speeds at half or full duplex
    was developed
  • Auto-Negotiation defines how two link partners
    may automatically negotiate a configuration
    offering the best common performance
  • Auto-Negotiation is accomplished by transmitting
    a burst of 10BASE-T Link Pulses from each of the
    two link partners
  • The burst communicates the capabilities of the
    transmitting station to its link partner
  • After both stations have interpreted what the
    other partner is offering, both switch to the
    highest performance common configuration and
    establish a link at that speed
  • If anything interrupts communications and the
    link is lost, the two link partners first attempt
    to link again at the last negotiated speed
  • If that fails, or if it has been too long since
    the link was lost, the Auto-Negotiation process
    starts over

17
Module 6 Summary
  • You should now be able to
  • Describe the basics of Ethernet technology
  • Explain naming rules of Ethernet technology
  • Define how Ethernet and the OSI model interact
  • Describe the Ethernet framing process and frame
    structure
  • List Ethernet frame field names and purposes.
  • Identify the characteristics of CSMA/CD
  • Describe the key aspects of Ethernet timing,
    interframe spacing and backoff time after a
    collision
  • Define Ethernet errors and collisions
  • Explain the concept of auto-negotiation in
    relation to speed and duplex

18
Any questions???
