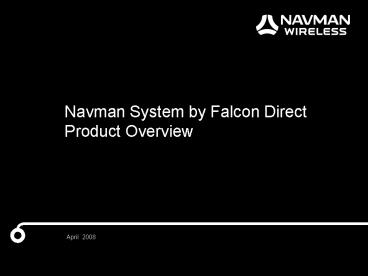

Navman System by Falcon Direct Product Overview

1
Navman System by Falcon Direct Product Overview
April 2008
2
Agenda

• Solution Architecture
• Hardware Component Overview
• OnLine AVL Overview
• Reports

3
GPS Satellite

• GPS provides specially coded satellite signals
  that can be processed in a GPS receiver (tracking
  device), enabling the receiver to compute
  position, velocity and time anywhere on land,
  air or sea at anytime
• Four GPS satellite signals are used to compute
  positions in three dimensions and the time offset
  in the receiver clock
• Available 24 x 7
• Designed and operated by the US Military
• 24 satellites orbit around the earth
• The Navman Halo has a 12 channel GPS receiver
  (accurate to within 16 feet)

4
What is GPS

• Each satellite transmits a unique digital code
  sequence of 1s and 0s precisely timed by an
  atomic clock, which is picked up by a GPS
  receivers antenna and matched with the same code
  sequence generated inside the receiver.
• By lining up or matching the signals, the
  receiver determines how long it takes the signals
  to travel from the satellite to the receiver.
• These timing measurements are converted to
  distances using the speed of light (about 186,000
  feet per second), the same speed with which radio
  waves travel.
• Measuring distances to four or more satellites
  simultaneously and knowing the exact locations of
  the satellites (included in the signals
  transmitted by the satellites), the receiver can
  determine its latitude, longitude, and height
  while at the same time synchronizing its clock
  with the GPS time standard which also makes the
  receiver a precise time piece.

5
Telecommunication Provider

• Provides data connection for information to be
  transferred from vehicle to Navman and vice versa
• Data is sent through the carrier network
• Creates an IP data session for each connection

6
Navman secure hosting

• Each fleet is allocated to a server
• Username and password is allocated to point the
  customer to the correct server
• Server uptime 99.99
• Regular automated security check
• Heart beat monitor
• Active hot servers (redundancy)
• Availability comparative to Telecoms cellular
  network uptimes
• Redundant fibre network

7
Customers Desktop Internet

• Each users desktop must have the OnlineAVL
  software loaded and directed at the correct
  server
• The same username and password can be used on
  multiple desktops
• OnlineAVL has different user levels. Eg from
  view only to full admin access
• Can load onto Citrix or Terminal Servers
• Internet
• Must have internet connection
• Transfers information from Navman to Customers
  Desktop and vice versa
• 56KB dial up or higher required

8
Agenda

• Solution Architecture
• Hardware Component Overview
• OnLine AVL Overview
• Reports

9
Halo Qube tracking device

• Provides time, date, ignition, speed, direction
  location, plus more
• Automatic time or distance update (1 mile or 5
  min)
• Stores up to 500 events if outside of cellular
  coverage
• Connects to other hardware devices such as the
  M-Nav, MDT and ConEx
• Stored under the seat, dashboard or in the glove
  box
• Powers using the vehicles battery 12v or 24v
• 12 channel GPS receiver

10
M-Nav 650

• Receives and sends IP text messages
• Drivers can select from up to 100 preset reply
  messages or type new reply
• Receives route information as GPS coordinates
  seamlessly from OnlineAVL
• Can save up to 200 destinations as favourites
• Can set multiple stop trips
• Automatically calculates distance to destination,
  speed and estimated time of arrival
• High quality speaker sound for turn-by-turn voice
  guidance

11
Agenda

• Solution Architecture
• Hardware Component Overview
• OnLine AVL Overview
• Reports

12
OnlineAVL
13
Vehicle Display Screen
Name of fleet
Time of latest update
Latest known vehicle location
Blue vehicles ignition is off
Green vehicles ignition is on
14
Group Vehicles
15
Vehicle Activity Screen
Ignition status
Trip (mileage)
Time of update
Location of event
Event Icon
16
Icons
Power removed and restored Driver PIN
accepted Driver PIN Denied Driver
Logoff Auto Logoff PIN in use Unknown
driver Unauthorised Movement
Alert Stationary Vehicle Alert

• Ignition on
• Ignition off
• Entering a Geofenced area
• Exiting a Geofenced area
• MDT/M-Nav on-line
• MDT/M-Nav off-line
• Vehicle position queried
• Vehicle moved with ignition off
• Timed update

17
Map Display Screen (3 Options)
Hybrid View
Satellite View
Traditional View
18
Replay a day
19
Agenda

• Solution Architecture
• Hardware Component Overview
• OnLine AVL Overview
• Reports

20
Activity Report

• Summary of days activity
• Answer customer queries
• Monitor driver log book
• Filter desired activities

Dates to report on
Location
Speed
Trip Distance
Event Information
Time on Site
21
Customer Site Report

• Evidence visits for customer service
• On-site billing / waiting time
• Call cycle
• Comparison of productivity time

22
Geofence Report

• Captures time and distance within a defined
  location
• Claim back road user charges for off road miles
  traveled within Geofence
• Time inside the Geofence will evidence loading
  and unloading ACTUALS against business model

Time Inside Geofence
Summary of Distance
23
Idle Report

• Produces and easily evidences ROI as there are
  direct costs related to vehicle idling
• Fuel cost
• Engine wear and tear
• Driver wages
• Vehicle productivity

Idle Location
Idle Duration
24
Mileage Report

• Fringe Benefit Tax
• Unauthorized usage cost savings
• Scheduled vehicle maintenance
• Measure weekly/monthly trends

Total Mileage
25
Overspeed Report

• Evidences driver behaviour
• Evidences ROI related to direct vehicle cost
• Fuel, engine wear tear
• Captures the maximum speed location the vehicle
  reached at any given point in time

Peak speed reached
Location of peak speed
26
Speed Analysis Report

• Individually benchmarks driver route performance
• Allows you to compare the driver behaviour of up
  to 5 vehicles
• Can manually set speed bands over a defined
  period of time.

27
Stop Report

• Visibility of unscheduled stops
• On-site billing
• Waiting time
• Proof of delivery/site visit

Time stopped at location
Stop location
28
Trip Report the significant one

• Highlights daily productivity
• Service based industry travel time modeling
• On-site billing for labor
• Models congestion
• Payroll start/finish

Onsite time
Trip distance
Start and Finish time
Travel time
29
Show Nearest
Distance from location in miles
Selected location highlighted
Vehicles within the maximum distance from the
location will be listed
30
Route To (with M-Nav device)
Select the vehicle/s you want to direct to the
location
The road name is automatically placed in the text
box Can add extra text to the message
Location of the road
31
Stationary Vehicle Alert
Productivity alert used during the customers
normal business operating hours Designed to
alert an OnlineAVL user when a vehicles work
rate dips below a defined level or the vehicle is
stationary too long
The alert will trigger based on a time and
distance setting. A user can create a base
template for each vehicle or for a fleet
Can select emails to receive alert
Stationary vehicle period (inside of normal
business hours)
White space is when no alerting notification is
required. I.E on the way to/from work during
lunch hour
32
Unauthorized Movement Alert
Alert focused on non-business hours for
unauthorized usage and security
The alert will trigger based on activity,
distance or geofence setting
Can select emails to receive alert
Unauthorized movement period (outside of normal
business hours)
33
