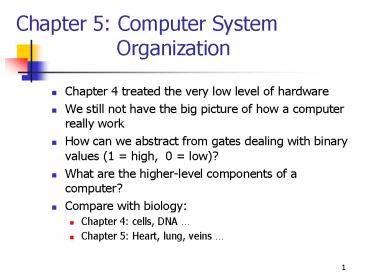

Title: Chapter 5: Computer System Organization


1
Chapter 5 Computer System
Organization
  • Chapter 4 treated the very low level of hardware
  • We still not have the big picture of how a
    computer really work
  • How can we abstract from gates dealing with
    binary values (1 high, 0 low)?
  • What are the higher-level components of a
    computer?
  • Compare with biology
  • Chapter 4 cells, DNA
  • Chapter 5 Heart, lung, veins

2
Outline of Chapter 5
  • Abstraction
  • Von-Neumann Architecture
  • Memory
  • Input/Output
  • ALU
  • Control Unit
  • Historical Overview of Computers

3
Abstraction
  • Ignore details and concentrate on the basic
    building blocks of a computer
  • ? Computer collection of functional units or
    subsystems
  • Tasks of any subsystem include
  • Instruction processing
  • Information storage
  • Data transfer
  • Input/Output
  • ? Computer organization branch of computer
    science studying computers on this abstraction
    level

4
Abstraction
  • All of our subsystems are built using gates
  • But gates are now invisible
  • ? different levels of abstractions
  • Abstraction is essential in order to reduce
    complexity
  • Methodical approach for dealing with abstraction
  • System S (e.g. computer) includes a high number
    of primitive components ? S c1..cN
  • Grouping components based on their functionality
    produces a system S A, B, C, with less
    components
  • The highest level of abstraction is to treat the
    system as a black box
  • ? Hierarchy of abstractions

5
Abstraction
  • Already known (chapter 4) forms of abstractions
  • AND Gate 2 Transistors in series
  • 1-ADD Circuit 25 Gates including NOTs, ANDs,
    and Ors
  • Transistor primitive component
  • Gate next level of abstraction
  • Circuit highest level abstraction (so far)
  • ? Hierarchy

6
Von-Neumann Architecture
  • Variety of computers
  • PCs
  • Mainframes
  • Minicomputers
  • Laptops
  • However All of them based on the same design
    principles
  • Differences are only in speed, capacity, in-/ and
    output and so on
  • Compare automotive technology many makes but
    the same principles
  • Principles of todays computer systems are based
    on a theoretical model of computer design called
    Von-Neumann architecture (1946)

7
Characteristics of a Von-Neumann Architecture
  • 1. The computer consists of 4 major subsystems
  • 1.1 Memory
  • 1.2 Input-output
  • 1.3 Arithmetic-logic unit (ALU)
  • 1.4 Control unit
  • 2. Stored program concept
  • Instructions to be executed and data are
    represented in binary values and stored in memory
  • 3. Sequential execution of instruction
  • Instructions are fetched one at a time from
    memory to the control unit, where they are
    decoded and executed

8
Memory
  • The memory is the unit of a computer that stores
    data and instructions and make them accessible
    (to the processor)
  • Binary numbering scheme is used for data and
    instructions
  • Random access memory (RAM)
  • Memory is divided into fixed-sized units called
    cells and each cell is associated with a unique
    identifier called address, any a address is an
    unsigned integer 0, 1, 2,
  • Accesses to memory are always to a specified
    address, and the complete cell must always be
    stored/retrieved. The cell is the minimum unit of
    access
  • The time it takes to store/fetch contents of a
    cell is the same for all cells in memory
  • Read-only memory (ROM) is also usually used in
    addition to RAM
  • A ROM is a RAM for retrieving information (data
    and instructions) only (no store operations are
    allowed)

9
Structure of a RAM
bit
0
1
cell
2
Addresses
2N-1
Memory width (W)
10
RAM
  • Cell size memory width W
  • Standard W 8 ? Byte
  • Maximum value that can be stored in a byte is
  • 11111111 255
  • Too low ? greater number are stored in several
    bytes e.g. 2, 4, 8 bytes (16, 32, 64 bits)
  • Problem with higher numbers more store/retrieve
    operations are needed (byte-by-byte)
  • Addresses if N bits available, maximum is 2N-1
  • Maximum memory size is 2N, typical abbreviations
    in use
  • 1K 210 (1024)
  • 1M 220 (1, 048, 576)
  • 1G 230 (1, 073, 741, 824)

11
Address vs content
  • There is a difference between address and the
    content of that address
  • Example
  • Address 42 ?? Content 1
  • Instructions may operate on
  • Addresses or
  • Contents
  • Example
  • Add 1 to Content Address remains unchanged but
    value becomes 2

12
Memory operations
  • Fetch(address)
  • Fetch a copy of the contents of the address and
    return as a result the contents. The contents
    remain unchanged.
  • Example Fetch(42) would return 1
  • Store(address, value)
  • Store the specified value into the cell
    associated with address. Previous contents are
    lost.
  • Example Store(42, 344) ? now 1 is lost
  • Time for fetch/store ca. 100 nsec

13
Implementation of fetch and store
  • Register
  • On-processor memory cells - typically few
    bytes (e.g. 2, 4 or 8 bytes)
  • Fetch and store need two operands
  • Address (held in MAR)
  • Value (held in MDR)
  • Fetch(address)
  • Load the address into MAR
  • Decode the address
  • Copy the contents of the memory location into MDR
  • Store(address, value)
  • Load address into MAR
  • Load value into MDR
  • Decode address
  • Store the contents of MDR into the memory
    location

Memory address register
MAR
RAM Memory
Memory data register
MDR
14
Decoding addresses
  • Role of decoder is to select one memory location
    (among many) given the corresponding address.
  • Decoder usage

MAR
0
N-to-2N Decoder
  • High number of output lines for decoder !
  • Example N 16 ? 65,536 output lines

2N -1
15
Organization of memory with Two 2-dimensional
Decoders
MAR
right N/2 bits columns
left N/2 bits rows
Memory
Column Decoder
Row Decoder
MDR
Multiple of bytes
Store/Fetch Controller
e.g. 1 store, 0 fetch
16
Input/Output and Mass Storage
  • Examples
  • Keyboard (input)
  • Screen (output)
  • Printer (input)
  • Disk (input/output)
  • Floppies (input/output)
  • Tape (input/output)
  • CD-Rom (input)
  • Modem (input/output)
  • Very slow compared with memory access
  • Memory e.g. 300 nsec
  • Disk e.g. 30 msec ( 100000300 nsec)

17
Input/Output and Mass Storage
  • Direct access storage (like disks)
  • Every cell has an address (addressable)
  • Unlike RAM access time is variable
  • Disk organization (hard disks, floppy)

R/W head
Track e.g. 10 sectors
Sector e.g. 512 bytes
Rotating axis
18
Input/Output and Mass Storage
  • Seek time time to find the right track
  • E.g. Average 15 msec
  • Latency right sector
  • E.g. Average 12.5 msec
  • Transfer time time to read/write sector
  • E.g. Average 2.5 msec
  • Sequential access storage devices (tapes)
  • No addresses
  • Content-based sequential access (like cassette
    audio tape)
  • Difference between memory/processor speed and I/O
    devices is enormous
  • ? Controllers are used to do the slow work

19
Controllers for Input/Output
  • Controllers avoid having the processor being idle
    most of the time.
  • Compare You talk at normal speed 240 words/min
    to somebody who could only respond back to you at
    the rate of 1 word/8 hours !!!
  • You will be most of the time waiting (idle)
  • Input/Output operations (I/O operations)
  • 1. Processor instructs the appropriate controller
    to do the (slow) job of input/output
  • 2. Processor continues instruction processing
    (possibly of other programs)
  • 3. When I/O operation is done, controller
    interrupts the processor and signalizes
  • that the task has finished (e.g. data are
    ready to read)
  • Decoupling the two units (processor and
    controller) is done using a buffer (small RAM
    memory) within the controller
  • Accessing the buffer is fast
  • The processor only needs to put/get data from the
    buffer and not from the I/O device itself.

20
Structure of I/O Controllers
Processor
Memory
Data path
Control path (interrupts)
buffer
I/O controller
buffer
Control logic
Control logic
I/O devices
e.g. Screen
e.g. Printer
21
The Arithmetic Logic Unit (ALU)
  • Task of ALU
  • Mathematical operations (, -, , )
  • Logical operations (Equality, Inequality, AND,
    OR, )
  • ALU is one part of the processor
  • Processor also includes control unit (later)
  • The ALU consists of
  • Registers
  • ALU Circuits
  • Interconnection (bus)
  • Registers
  • For holding operands and results of an operation
  • Example
  • Prior to an addition the values to add are
    brought to two registers, then the circuit for
    the adder is started (e.g. full-adder), and the
    result is stored in a third register.

22
ALU
  • Registers behave like a very tiny on-processor
    RAM, but
  • without addresses
  • faster (10 times faster than memory)
  • used only for operands
  • Typically more than 10 registers are available
  • More registers means operations become faster
  • Example
  • (ab)(c-d)
  • may involve Load register R0 with value a
  • Load register R1 with value b
  • Store result of ab to R2
  • Load register R0 with value c
  • Load register R1 with value d
  • Store result of c-d to R3
  • Store result of R2R3 to R0

23
ALU
  • Example ALU with 16 registers
  • All registers can be used to hold either
    operands or results of operations

R0
R1
R15
left operand
ALU circuitry
right operand
result
bus
24
ALU Circuitry
  • It implements the operations themselves
  • Examples
  • ab ab
  • a-b altb
  • ab a gt b
  • a / b a . B (AND)
  • Chapter 4 showed how to build these circuits
    based on gates
  • A decoder is to select the appropriate operation
    (see Chapter 4)
  • In order to get the correct result a multiplexer
    is needed
  • Suppose we only have 4 operation
  • ab a-b a.b a/b

25
ALU Circuitry
Selector lines
R0
R1
R15
left operand

-
Multiplexer
right operand
/
.
result
ALU circuitry
26
Control Unit
  • Task of control unit
  • 1. Fetch next instruction from memory
  • 2. Decode it (activate the appropriate lines)
  • 3. Execute it by issuing commands to the ALU,
    memory, or I/O controller
  • Machine language instructions
  • Binary instructions (can be understood by the
    control unit)
  • Instructions have the following structure (here 2
    addresses)
  • Op code address1 address2
  • Op code
  • Binary value specifying the operation
  • E.g. 00001001 (decimal 9) for ADD, 00000001
    (decimal 1) for COMPARE and so on
  • Addresses
  • Binary values specifying the addresses of the
    operands needed by the operation
  • E.g. 01100011 for address 99 (100th byte in
    memory)
  • Example
  • 00001001 01100011 01100100
  • ADD 99 100

27
Control Unit
  • Instruction Set Set of executable instructions
  • Different processor makes have different
    instruction sets
  • E.g. Motorola 68040 cannot execute programs
    written for an Intel Pentium (and vice versa),
    simply because their control units understand
    different machine languages (native language of
    the computer)
  • Two philosophies in use
  • Reduced instruction set computers RISC (e.g. Sun
    Sparc)
  • Less circuits (less operations)
  • More is done in software
  • Complex instruction set computers CISC (e.g.
    Intel Pentium)
  • More circuits (more operations)
  • Less software

28
Control Unit
  • Types of instructions (R register, X and Y
    memory cells, ? means copy)
  • Data transfer
  • instruction meaning
  • LOAD X X? R
  • STORE X R?X
  • MOVE X,Y X?Y
  • Arithmetic (here addition)
  • instruction meaning
  • ADD X, Y, Z X Y ? Z
  • ADD X, Y X Y ? Y
  • ADD X X R ? R
  • Compare
  • Uses condition codes (bits within the processor),
    for example,GT-bit, EQ-bit, and LT-bit
  • Instruction meaning
  • COMPARE X, Y set condition bits accordingly

29
Control Unit
  • Example COMPARE X, Y
  • Condition Values of Condition Bits
  • GT EQ LT
  • X gt Y 1 0 0
  • X lt Y 0 0 1
  • X Y 0 1 0
  • Branch instruction
  • Normally the next instruction is fetched from
    the following address in memory
  • Branch instruction allows for fetching any other
    instruction
  • JUMP X next instruction is in cell X
  • JUMPGT X if GT-bit is 1, next instruction is
    fetched from cell X
  • JUMPEQ, JUMPLT similar
  • HALT stop execution, dont go to next
    instruction

30
Control Unit
  • Registers and circuits of the Control Unit
  • Program Counter (PC)
  • Special register that always holds the address of
    the next instruction
  • To get that instruction from memory, the control
    unit copies the value of PC to MAR and initiates
    a Fetch operation
  • Instruction Register (IR)
  • Holds the instruction just fetched from memory
    (current instruction)
  • This includes the op-code and the operand
    addresses
  • Instruction decoder
  • What instruction is in the IR
  • Activate appropriate lines

31
Control Unit
Bus
PC
IR
Op-code
Address(es)
1
Instruction decoder
Signals to memory, ALU, I/O controllers, and
other units
32
The Whole Picture
Bus
Control Unit
Memory
ALU
I/O Controller
Processor (CPU central processing unit)
Computer
I/O Devices (printers, screens, keyboards,
modems, and so on)
33
History of Computers
  • The early age (up to 1940)
  • 1642 Blaise Pascal
  • Pascaline mechanical calculator (using cogs and
    gears)
  • Addition and subtraction
  • 1694 Gottfried Leibnitz
  • Leibnitzs Wheel
  • Addition, subtraction, multiplication, and
    division (mechanical)
  • ? both of them not computers (no memory, not
    programmable)
  • 1822 Charles Babbage
  • Improved earlier work (still mechanical)
  • Difference Engine
  • 6 significant digits of accuracy
  • Solved polynomial equations
  • Later (in 1830) he designed (without developing)
    the Analytic Engine (AE)
  • AE uses punched cards (that include the
    instructions)
  • AE design is very similar to a Von-Neumann
    computer
  • Mill (ALU) ? Store (memory) ? operator (control
    unit) ? output (I/O)
  • AE is considered (by many) to be the first
    (design) of a computer

34
History of Computers
  • 1890 Herman Hollerith
  • Enumeration in US would take 10-12 years
  • Based on punched cards, Hollerith designed
    programmable machines for sorting and counting
  • First real machine based on Babbage design
  • Was very successful built a company to sell his
    machines (later IBM)
  • Birth of computers (1940-1950)
  • Event World War II (unfortunately)
  • 1931 H. Aiken
  • Developed Mark I
  • Based on relays, magnets, and gears
  • First use of binary numbers in computers!
  • 0 and 1 were represented using vacuum tubes and
    electric current
  • It is the first general purpose computer (Babbage
    dream)
  • Mark I was completed in 1944
  • Memory Capacity 72 numbers
  • 23-digit of accuracy
  • 4 sec of lightning time

35
History of Computers
  • 1943 J.P. Eckert and J. Mauchly
  • ENIAC computer (Electronic Numerical Integrator
    And Calculator)
  • 18,000 vacuum tubes, 100 feet long, 10 feet high,
    30 tons of weight
  • Fully electronic 10-digit number addition in
    about 1/5000th sec
  • Multiplication took about 1/300th sec
  • At almost the same time
  • ABC system constructed by J. Atanasoff
  • Colossus built by A. Turing (England)
  • Z1 of Zuse (Germany) ? this was a full general
    purpose computer
  • 1946 J. Von Neumann
  • He worked in the ENIAC project
  • After that proposed a radically different
    computer design (stored program concept)
  • Until then program were developed manually using
    wires
  • Invention of programming (which replaced wiring
    of machines)
  • 1950 His team built the EDVAC computer
  • EDSAC was built at the same time in England by M.
    Wilkes
  • Commercial model UNIVAC I (first computer sold)

36
History of Computers
  • Modern Era 1950-Present
  • Everything is still based on Von-Neumann ideas
  • Rather evolution and improvement took place but
    not a revolution
  • First Generation 1950-1959
  • UNIVAC I
  • IBM 701
  • Both
  • Similar to EDVAC
  • Slow and expensive
  • Needed clean rooms and special personnel
  • Speed around 10000 instructions/sec
  • Second Generation 1959-1965
  • Vacuum tubes were replaced by transistors and
    magnetic cores were used for memory
  • This reduced size and increased reliability of
    computers
  • First high-level programming languages Fortran
    and Cobol
  • Speed around 1 MIPS (Million Instructions Per
    Second)

37
History of Computers
  • Third Generation 1965-1975
  • Integrated circuits (no more discrete
    transistors, resistors and so on, rather pieces
    of silicon)
  • More reduction of size and cost
  • Desk-sized computers could be built PDP11 of DEC
    in 1965
  • Birth of software industry (statistical packages,
    accounting software, etc.)
  • Computer were no longer a rarity by the mid-1970s
  • Speed around 10 MIPS
  • Fourth Generation 1975-1985
  • First microcomputer
  • Desk-top machines (size of typewriter)
  • Software industry provided increasingly new
    packages (spreadsheets, databases, )
  • First computer networks Email systems
  • GUI user-friendly systems with graphical
    interfaces
  • Embedded systems computers in cars, microwave
    ovens,
  • Speed 10-100 MIPS

38
History of Computers
  • Fifth Generation since 1985
  • Change is constantly, only some aspects can be
    mentioned
  • Parallel processors and supercomputers
  • Artificial intelligence and robotics
  • Laptops and notebooks
  • Virtual reality
  • Multimedia user interfaces
  • Integrated communication TV, radio, Fax, Data
  • Speed 100-200 MIPS
  • Future
  • More speed ? limiting factor is speed of light
  • More parallelism and scalability (Non-Von-Neumann
    machines)
Write a Comment
User Comments (0)
About PowerShow.com
