Upcoming topics

1

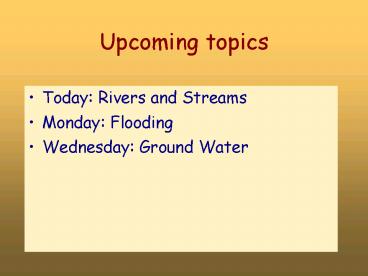

Upcoming topics

• Today Rivers and Streams
• Monday Flooding
• Wednesday Ground Water

2
GeoNews Quake in Turkey

• Yesterday 330 a.m., local time
• Magnitude 6.4
• 150 dead as of yesterday 5 pm

3
GeoNews Quake in Turkey
4
GeoNews Quake in Turkey
5
GeoNews Quake in Turkey
6
GeoNews Quake in Turkey
7
Homework Due Now

• Key posted on supplemental web site today

8
Todays Plan

• The hydrologic cycle
• Today we begin a survey of water on earth
• streams, floods, groundwater, glaciers, beaches
• Streams
• Watersheds stream flow measuring
• Sediment transport
• Stream processes erosion deposition

9
The Hydrologic Cycle - Reservoirs

• Think in terms of reservoirs
• Can you name them all?
• Ocean, surface water (rivers and lakes), ice caps
  glaciers, ground water, atmosphere, biosphere,
  and...
• crustal minerals!
• also, deep earth (but its not really in the
  cycle)

10
The Hydrologic Cycle - Fluxes

• fluxes move water between reservoirs
• Amount of water leaving the reservoir per unit
  time
• Evaporation, transpiration, (condensation)
  precipitation, infiltration, runoff
• Residence time (time water spends in res.)
• size of reservoir / flux

11
The Hydrologic Cycle
12
Reservoirs and Fluxes the ketchup example

• Restaurant marries 60 ketchup bottles daily and
  adds 4 new bottles
• What is the residence time of ketchup in this
  restaurant?
• What is the probability (in ) that the bottle
  you get is new?
• Would you eat at this restaurant?

13
Reservoirs and Fluxes the ketchup example

• residence time?
• 60 bottles / 4 bottles per day 15 days
• probability (in ) of new bottle?
• For any day 4 of 60 bottles are new, so4/60
  0.067 6.7
• Would you eat at this restaurant?
• Residence time at your house / apartment?

14
(No Transcript)
15
River Size / Speed

• What controls this?

16
Drainage Basin or Watershed
17
Watershed

• Why should we care about a watershed?
• Drinking water - amount, quality
• Floods
• Groundwater

18
Discharge and the hydrograph
19
Discharge and the hydrograph

• How to find USGS real-time discharge data
• Begin at http//wa.waterdata.usgs.gov/nwis/

20
(No Transcript)
21
How does sediment move?

• Three sediment loads in a stream
• Bed load is dragged / rolled / shoved along the
  stream bed
• Suspended load is floated in the turbulent
  water
• Dissolved load is carried as ions in solution

22
(No Transcript)
23
cut bank
24
Stream Evolution
25
Go to Flash Stream Animation
26
Newaukum River (WA)
27
What is this base level thing?

• Apparently simple concept, that baffles most of
  us.
• Tells whether a stream is eroding or depositing
  at a given location
• Tells what will happen if we disturb the stream
  somehow.

28
Stream Profile
(Graded)
Base Level
29
Dams cause deposition
30
Decreasing Sea Level causes erosion
31
Terraces

• Uplifted river deposits

32
Terraces
