Today

1

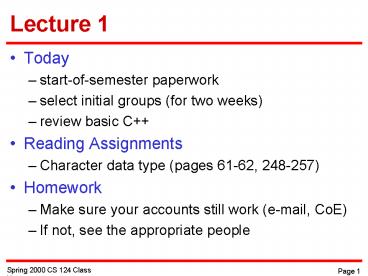

Lecture 1

• Today
• start-of-semester paperwork
• select initial groups (for two weeks)
• review basic C
• Reading Assignments
• Character data type (pages 61-62, 248-257)
• Homework
• Make sure your accounts still work (e-mail, CoE)
• If not, see the appropriate people

2
Course Policies

• See syllabus for complete details
• All materials exist on web
• http//www.cs.ua.edu/124
• Materials include
• lecture notes, assignments, answer keys, etc
• Textbook
• same as CS 114
• finish up what we skipped last semester

3
Course Goal

• Finish up basic C
• CS 114
• sequence/selection/iteration
• functions (including ref parameters, recursion)
• arrays (one and two dimensional)
• basic sorting and searching
• CS 124
• remainder of C data types (char, string)
• classes
• pointers dynamic memory allocation
• basic data structures

4
Selection of initial groups

• Everyone to the back of the room
• Basic process
• find three other people
• find a table (cannot sit down until you have 4)
• introduce yourselves (names, hometowns, what did
  you get for Christmas, etc.)

5
Lecture 2

• Today
• the character data type
• Reading Assignments
• More on characters (262-268, 868-869)
• Homework
• Make sure your accounts still work (e-mail, CoE)

6
The Character Data Type

• A character variable holds a single character
• char ch char x, y, z
• ch a x x
• char x, y, z y x
• char five 5 z Z
• Basic observations
• Use single quotes with characters
• Use double quotes with string variables (later)
• A character variable is stored in one byte (8
  bits)

7
Relationship chars ints

• Characters are really small (8-bit) integers
• 8 bits gives you values in the range of 0-255
• ASCII character set defines characters as some
  integer value in this range
• character A 65 (ASCII representation)
• character B 66 (ASCII representation)
• character Z 90 (ASCII representation)
• character a 97 (ASCII representation)
• ASCII character table is shown on page 864

8
Can print/view chars two ways

• As an ASCII character (default)
• char ch
• cin gtgt ch
• cout ltlt You entered ltlt ch ltlt endl
• As an integer
• char ch
• cin gtgt ch
• coutltlt You entered ltlt(int) chltltendl
• Here we cast the char as an int
• print the integer equivalent of the ASCII
  character

9
More fun with characters

• Since characters are really small integers, you
  can add and subtract between the two types
• include ltiostream.hgt
• int main( )
• char ch 'a' Program Output
• int a 100 197
• a a ch f
• cout ltlt a ltlt endl
• ch ch 5
• cout ltlt ch ltlt endl

10
More fun with character I/O

• Two ways of reading in characters
• char ch char ch
• cin gtgt ch cin.get(ch)
• Method on left operates in standard fashion
• skips over white-space (spaces, tabs, new-lines)
  until it sees a character
• Method on right grabs the next physical character
  in the input stream (whatever it is, including
  white-space)

11
Example of Character I/O

• Data file (1 line)
• U A C S
• Program
• int main( )
• char ch1, ch2, ch3
• cingtgt ch1 gtgt ch2 gtgt ch3
• cout ltltch1ltltch2ltltch3
• Results
• output UAC
• ch1U, ch2A, ch3C

• Same data file
• Program
• int main( )
• char ch1, ch2, ch3
• cin.get(ch1) cin.get(ch2)
• cin.get(ch3)
• cout ltltch1ltltch2ltltch3
• Results
• output U A
• ch1U, ch2 , ch3A

12
I/O can be a problem

• Consider the following
• int main( )
• char chcout ltlt "Delete all files
  ?" cin.get(ch)
• if (ch 'y') cout ltlt "Are you sure ?"
  cin.get(ch) if (ch ! 'n') cout ltlt
  Deleted" ltlt endl else cout ltlt Not
  deleted ltlt endlelse cout ltlt "OK

• Output of the program
• Delete all files ?y
• Are you sure ?All files deleted
• Why?
• You entered two chars after the first prompt
• y was the first
• \n was the second
• The new-line character got processed by the
  second cin.get(ch) line

13
Consider our class exercises

• Program (revised a bit)
• int main( )
• char ch
• cin.get(ch)
• while ( ! cin.eof() )
• cout ltlt "Entered a
• ltlt ch ltlt " (
• ltlt (int) ch ltlt ")
• ltlt endl
• cin.get(ch)

• Run w/ two lines of data
• Output
• hi
• Entered a h (104)
• Entered a i (105)
• Entered a
• (10)
• mom
• Entered a m (109)
• Entered a o (111)
• Entered a m (109)
• Entered a
• (10)

14
Warning on character I/O

• Windows 98 and Windows NT and Unix all use the
  ASCII character 10 for the new-line character
  (\n)
• Some other systems (such as DOS-based and early
  Windows 95) use a two-character sequence
  (carriage-return line-feed)
• This can impact how a program runs (or does not
  run)

15
Lecture 3

• Today
• finish working with characters
• Reading Assignments
• Structs (292-302)
• Homework
• Make sure your accounts still work (e-mail lab)
• The first assignment will be given Wednesday

16
Built-in Character Functions

• C provides a number of built-in functions that
  allow you to manipulate characters
• listing on pages 868-869
• Basic functions include
• conversion between case
• test for upper or lower case
• test for letters (and digits and alphanumeric)
• test for control characters
• test for whitespace (and punctuation)
• All require the include ltctype.hgt header

17
What are these functions?

• int islower(char)
• is it lowercase letter
• int isupper(char)
• is it uppercase letter
• int tolower(char)
• convert to lowercase
• int toupper(char)
• convert to uppercase
• int iscntrl(char)
• is it a control character?

• int isalpha(char)
• is it a letter
• int isalnum(char)
• is it a letter or digit
• int isdigit(char)
• is it a digit
• int isspace(char)
• is it a space, tab, newline
• int ispunct(char)
• is it printable but not space or alphanumeric

18
Why do functions return int?

• Most ask a question (is it .) so it returns
  either TRUE (non-zero) or FALSE (zero)
• Some convert between cases
• int toupper(char) int tolower(char)
• Consider the following
• char ch A, ch2
• cout ltlt tolower(ch) // outputs 97
• cout ltlt (char) tolower(ch) // outputs a
• cout ltlt char(tolower(ch)) // outputs a
• ch2 tolower(ch) // assigns a to ch2

19
Arrays of characters

• C permits you to have arrays of characters
• normally view as strings
• dynamic in length, special termination character
• Can also think of fixed-length (static-size)
  arrays of characters
• char array10 // holds ten characters
• char array255 // holds a 5x5 matrix of chars

20
Reading an array of characters

• Check if a ten character string is a palindrome
• int palin(char array )
• int a 0, b 9
• while (altb)
• if (arraya ! arrayb)
• return 0
• a a 1
• b b - 1
• return 1

• include ltiostream.hgt
• int main( )
• char array10
• int a, answer
• for (a0 alt10 a)
• cin gtgt arraya
• answer palin(array)
• if (answer 1)
• cout ltlt "YES" ltlt endl
• else
• cout ltlt "NO" ltlt endl

21
Lecture 4

• Today
• struct basics
• project one
• Reading Assignments
• Basics of using classes (305-310)
• Homework
• Project One due next Tuesday at 9pm
• Reminder no class next Monday

22
Data Types

• So far weve seen integers, reals, characters
• What about other, more specialized types
• Date contains month, day, year (3 integers)
• Student schedule student ID, array of classes
• Print queue array of jobs (data to print,
  priority)
• C does not have built-in types for these
• Can create your own representation
• Struct look at today (briefly) old, problems
  exist
• Class start on Friday new, improved struct

23
The struct concept

• Some data has more than one field
• Date month, day, year
• Group these together (form a new data type)
• struct Date // name of the data type
• int month // fields in the data
• int day
• int year
• // semi-colon at end is important
• Can then use this data type in programs

24
The struct concept (continued)

• Declare variables of this type
• Date bday Date startDate, endDate
• Assign values to fields in these variables
• bday.month 4 // notice how we reference
• bday.day 7 // the individual fields,
• bday.year 1963 // dot notation
• Can read and write these fields as well
• cin gtgt bday.month gtgt bday.day gtgt bday.year
• cout ltlt bday.month ltlt / ltlt bday.day ltlt /
• ltlt bday.year ltlt endl

25
The struct concept (continued)

• Can pass structs to functions
• Can assign one struct to another
• Date startday, endDay
• endday startday
• Note declare structs outside of all functions
• include ltiostream.hgt
• struct declarations, end each with
• function declarations

26
Project 1

• Project can be found at
• http//cs.ua.edu/124/assignments/project1.htm
• Due next Tuesday (9pm)
• Basic word search program
• Read in a matrix of characters (8x8)
• Search for a four-letter word in the matrix
• Print out matrix will all occurrences in
  upper-case
• Only search for one word per execution
• Watch out (Monday is a holiday)

27
Comment 1 on the Projects

• What constitutes cheating?
• Work in teams during class time
• Work on projects must be done individually
• Can discuss projects (outside of lab)
• talk about algorithms, ideas for solving, etc.
• should be discussions (everyone participates)
• Cannot develop/code projects together
• Work in lab should be done individually
• Do not tell someone else how to do a project
• Do not let people look at your code as a guide

28
Comment 2 on the Projects

• Cannot expect to just go to the lab and complete
  the project in one sitting
• studies find that effectiveness in debugging
  coding drop off dramatically after about 2 hours
• working in the labs for long periods is
  counter-productive
• best approach is to have something written down
  on paper before you go to the lab

29
Comment 3 on the projects

• Information on RSI (repetitive strain injury)
• same task over and over (e.g. keyboard use)
• Symptoms
• tightness, general soreness, dull ache, numbness,
  loss of strength in hands/arms
• Web site
• www.rsihelp.com/index.html

• How to avoid
• avoid long sessions
• take frequent breaks
• take micro-break (shift position, stretch)
• proper position (back straight, head over
  shoulders, elbows at right angle, wrists
  straight, fingers curved)
• type lightly
• get plenty of rest sleep

30
Lecture 5

• Today
• introduction to classes
• using C classes in a program
• Reading Assignments
• Basics of classes (310-320)
• Homework
• Project One due next Tuesday at 9pm
• Reminder no class next Monday

31
Data Types (revisited)

• The common definition of a data type contains two
  elements
• a representation of the data contained in that
  type
• a set of operations that can be performed on data
• Built-in types have both components
• Integers
• 4-byte quantity, stored using 2s complement
  notation
• operations include , -, , /, ,
• There are some operations that are NOT defined
  for integers (convert to English, etc.)

32
Problem w/ struct for data types

• Cannot enforce what operations get performed on
  the variable
• Can do things to the variable that leaves the
  result meaningless
• Date birthdate
• birthdate.month 13 // no such month
• birthdate.day -5 // no such day
• Want to be able to enforce rules on what a person
  can (and cannot) do with a Date variable

33
The class construct

• Cs new, improved version of struct
• Allows user to define a new data type
• Definition includes
• how the data is physically represented
• operations that can be performed on the data
• this was missing with struct
• Class construct protects the data type
• blocks the user from individually accessing
  fields (and possibly turning them into garbage)

34
Using classes in a program

• The person who uses a class only has to know
  the following
• the name of the class
• the operations that you can use on that data type
• You do not have to know
• how the data is stored in the program
• how the various operations are implemented

35
Example using classes

• Consider a class for fractions
• called Fraction
• You can do the following with fractions
• Read them in (cin gtgt x)
• Print them out (cout ltlt x)
• Add two of them together (a b c)
• Multiply two of them together (a b c)
• Syntax for reading is to enter the numerator
  followed by a / followed by the denominator
• examples 3/5 4/9 10/1

36
Consider the following program

• int main( )
• Fraction a, b, c // declare variables
• cout ltlt "enter two fractions " ltlt endl
• cin gtgt a gtgt b // read in data
• c a b // add two fractions
• cout ltlt "their sum is " ltlt c ltlt endl
• c a b // multiply two fractions
• cout ltlt "their product is " ltlt c ltlt endl

37
Classes (our goal)

• Using classes is easy
• Want to be able to write our own classes
• they should look no different than any other data
  type in C
• they should be available to other people when
  developing programs
• having a large collection of data types should
  make developing applications easier (pick data
  types that help in your application)

38
Project Discussion Time

• Project One is due Tuesday at 9pm
• Time now to ask questions about it
• Format
• 5 minutes in group (questions that have arisen)
• QA with entire class

39
Lecture 6

• Today
• The basics of classes (organization, structure)
• Reading Assignments
• Class methods/functions (320-327)
• Homework
• Project Two due next Tuesday (1/25)

40
The basics of classes

• Class lets you define a new data type
• Identify the data needed to represent this type
• Identify the operations that you can perform on
  it
• Called methods (functions)
• Class definitions fall outside of functions
• Visible to the entire program
• Class definitions end with a semi-colon
• Similar to defining a variable (or struct)

41
Sample class

• Fractions can only declare print (no , ,
  etc.)
• class Fraction
• int num // data needed to represent fractions
• int den
• public // methods users can invoke go here
• Fraction( ) // constructor, run when declare
  var.
• num 0 den 1
• void Print( ) // method to print the fraction
• cout ltlt num ltlt / ltlt den
• // declaration ends with semi-colon

42
Using this Fraction class

• class Fraction // definition from previous page
• int main( )
• Fraction a, b, c // declare variables
• a.Print() // print out the value of a
• b.Print() // print out the value of b

43
Comments on classes

• Information hiding
• User can only see what is in public section
• Class constructor (same name as class itself)
• Method that is invoked when declare variables of
  this type
• When you create a C class, you provide
• Declaration of the class (data, methods
  available)
• Definition of all the methods (functions)
• Similar to declaration definition of functions
• Can declare a class and write functions elsewhere

44
Class definition vs. declaration

• Both (combined)
• class Fraction
• int num, den
• public
• Fraction( ) num 0 den 1
• void Print( ) coutltltnumltlt/ltltden
• Functions are defined (the actual code) within
  the class itself

• Declaration
• class Fraction
• int num, den
• public
• Fraction( )
• void Print( )
• Definition
• FractionFraction( ) num 0 den 1
• void FractionPrint( ) coutltltnumltlt/ltltden

45
Project Two

• Due Tuesday, January 25th at 9pm
• http//cs.ua.edu/124/assignments/project2.htm
• Overview
• Read in an integer (non-negative)
• Print it out using block letters
• 124 becomes
• 1 222 4 41 2 4 41 222 4441 2 41 222 4

46
Lecture 7

• Today
• Class methods
• Reading Assignments
• Class constructors (328-336)
• Homework
• Project Two due next Tuesday (1/25)

47
Creating a class (new data type)

• First, formally declare the class
• class Name
• // items needed by the
• // data type (how it is
• // represented internally)
• public
• // constructor
• // methods (functions)
• // that users can invoke
• // to manipulate objects
• // of this type

• Second, formally define all methods (functions)
  that the class utilizes
• Can be done in the class declaration or separate
• We will do a lot within the class itself
• When methods get larger (more than 10 lines of
  code) it is more readable to define them
  separately

48
Sample Class (for fractions)

• Our basic class
• class Fraction
• int num, den
• public
• Fraction( ) num 0 den 1
• void Print( ) coutltltnumltlt/ltltden
• Only has one method
• Can add more (set value, add, multiply, etc)

49
Adding more methods

• Existing method
• Print (no args)
• Additional methods and their arguments
• SetNum (takes int)
• SetDen (takes int)
• Set (takes 2 ints)
• MultiplyBy (take Fraction)
• AddTo (takes Fraction)

• First iteration
• (next few days)
• add these as methods with unique names
• Second iteration
• (about a week)
• replace existing operators (, , , etc.)

50
Implement those Methods

• class Fraction
• int num, den
• public
• Fraction() num0 den0
• void Print()
• cout ltlt num ltlt '/' ltlt den
• void SetNum(int e) num e
• void SetDen(int e) den e
• void Set(int a, int b)
• num a den b
• void MultiplyBy(Fraction f)
• numnumf.num
• dendenf.den

• include ltiostream.hgt
• int main( )
• Fraction a, b
• a.Set(1,4)
• b.Set(1,5)
• a.MultiplyBy(b)
• a.Print()

51
Overloading Method Names

• Recall that you could have more than one function
  with the same name.
• What was important was the function signature
• The number and type of the parameters passed to
  the function had to be unique
• void myFunct(int a, int b)
• void myFunct(char ch, double d)
• void myFunct(int a, double ch)
• void myFunct(int a)
• Can do the same thing w/ methods in a class

52
Overloading methods

• Method name is the same
• Parameters passed to it must differ
• Consider the MultiplyBy method
• Might want to multiply by another fraction
  (1/41/5)
• Might want to multiply by an integer (1/4 7)
• Can declare two methods with the same name
• void MultiplyBy(Fraction f)
• num num f.num den den f.den
• void MultiplyBy(int e) num num e

53
Lecture 8

• Today
• Class constructors
• Reading Assignments
• Class friends accessor functions (438-442)
• Homework
• Project Two due tomorrow at 9pm (1/25)

54
Class Constructors

• Same name as the class itself
• Exists in the public part of the class
• Invoked automatically when you declare a variable
  of this type
• Allows you the opportunity to initialize the
  variable as you see fit

55
Example

• class Fraction
• int num, den
• public
• Fraction( ) num 0 den 1
• void Print(void) cout ltlt num ltlt '/' ltlt den
• int main( )
• Fraction a a.Print() cout ltlt endl
• Fraction b, c, d d.Print() cout ltlt endl

56
Can have multiple constructors

• class Fraction
• int num, den
• public
• Fraction( ) num 0 den 1 // 1
• Fraction(int e) num e den 1 // 2
• Fraction(int a, int b) num a den b //
  3
• void Print(void) cout ltlt num ltlt '/' ltlt den

57
Invoking Constructors

• If have more than one constructor, it looks at
  the number (and type) of its arguments to
  determine which one to invoke
• Fraction a // default constructor
• Fraction b(5) // constructor that takes one int
• Fraction c(3,4) // constructor that takes 2 ints
• Fraction d5 // array, five elements, all take
• // default constructor
• Fraction e2 Fraction(1,2), Fraction(4)
• // array of two items, initialized as per array
  rules

58
Know the basics of classes

• Class data is private (users cannot access)
• Use a constructor function to initialize the
  variable
• User can only access variable via the methods
  (functions) defined in the public section of
  the class
• Can write the code for the methods within the
  class declaration, or separately
• If separate, need to indicate the scope
• return-type classNamemethodName (args)

59
Lecture 9

• Today
• Friends Accessor functions
• Reading Assignments
• const usage (453-456)

60
Accessing data in the class

• Users do not have direct access to the data
  within a variable from a user-defined class
• Cannot access num den in Fraction
• Cannot access x y in Point
• Can provide methods (accessor methods) that allow
  the user to set these values
• Not required
• Allows you to do some checking on the data given

61
Accessors in Fraction class

• class Fraction int num, den
• publicFraction() num0 den0 void
  SetNum(int e) num e void SetDen(int e)
  if (e ! 0) den e else den 1 void
  Set(int a, int b) SetNum(a) SetDen(b)
  void Print(void) coutltltnumltlt'/'ltltden

• int main( )
• Fraction a a.SetNum(5) a.SetDen(3) a.Print
  ()
• coutltltendl
• Fraction b b.Set(5,0) b.Print()
• cout ltlt endl

62
Friend functions

• Methods that are part of the class itself have
  access to the variables within the class
• The rest of the world does not have access
• Occasionally, this can lead to non-optimal
  situations
• Normally arises in cases where you
• Have a preconceived notion on how to say (code)
  something
• Are involving more than one instance of the class

63
Friend functions

• Consider method to test if two Fractions are
  equal
• Declare (in class) int equal(Fraction f)
• Use Fraction a, b
• if ( a.equal(b) )
• This syntax is somewhat ugly, would prefer
• Use Fraction a, b
• if ( equal(a,b) )

64
Problem with this approach

• This function is not a member of the class
• Fraction a, b
• if ( equal(a,b) )
• Since it is not a member of the class, it cannot
  look at the private date in the class (to
  determine if the two are equal)
• Solution make equal a friend of the class
• Friends have access to the internals of a class

65
Example (part one)

• Member functions only
• class Fraction
• public
• int same(Fraction b)
• if ( (num b.num) (den b.den) ) return
  1 return 0
• Usage
• Fraction a, b
• if ( a.same(b) )

66
Example (part two)

• Using a friend function
• class Fraction
• public
• friend equal(Fraction, Fraction)
• // end of Fraction class declaration
• int equal(Fraction a, Fraction b)
• if ( (a.num b.num) (a.den b.den) )
  return 1return 0
• Usage
• Fraction a, b
• if ( equal(a,b) )

67
Lecture 10

• Today
• const usage
• Two last comments on classes
• Reading Assignments
• Anything we have covered regarding classes that
  you have not yet read in the textbook

68
Passing parameters to methods

• When passing a parameter to a method
• Call-by-reference is more efficient than
  call-by-value
• Call-by-value creates a local copy of the
  variable that is initialized to the appropriate
  value
• Call-by-reference simply maintains a
  place-holder, as the actual changes are made to
  the variable in the calling routine
• No big deal if you are just dealing with simple
  data types (int, double, char, etc.)
• Can be a big deal when dealing with user-defined
  data types (that contain a lot of data)

69
Given our efficiency concerns

• A good idea to make parameters call-by-reference
  when possible
• Does not hurt anything
• Can speed up execution for some data types
• Potential problem
• You define the interface for the classs methods
• You have the team write the actual methods
• People on the team do not implement the methods
  properly (dont understand C like you do)

70
Example

• class Fraction int d2
• publicFraction( ) d0 0 d1 1 void
  SetNum(int e) d0 e void SetDen(int e)
  d1 e void MultiplyBy(Fraction f) d0
  d0 f.d0 d1 d1 f.d1 f.d0
  0 void Print(void) cout ltlt d0 ltlt '/ ltlt
  d1

• int main( ) Fraction a, ba.SetNum(5)a.SetDen
  (10)b.SetNum(3)b.SetDen(5)a.MultiplyBy(b)a
  .Print()cout ltlt endlb.Print()cout ltlt endl
• // output is ??

71
Solution use const

• Still use a reference parameter
• Make the parameter a const (cannot change)
• If you try and change it, compiler will flag an
  error
• Solution to our MultiplyBy method
• void MultiplyBy(const Fraction f)
• d0 d0 f.d0
• d1 d1 f.d1 f.d0 0 // this line
  would be flagged as an error

72
Another use of const

• Consider our Print method
• Dont want it to change the value of the Fraction
• If implemented wrong, it could possibly do that
• Specify the function as a const
• Indicates it will NOT change the value of its
  calling object (error message if you try to)
• void Print(void) const
• cout ltlt d0 ltlt / ltlt d1

73
Comments on const

• Must be included in method prototypes as well (if
  providing code for methods outside of class)
• public
• void MultiplyBy(const Fraction)
• void Print(void) const
• Should use const whenever possible
• Keeps stupid mistakes from happening

74
Two more comments on classes

• 1) Can toggle between private and public
  parts of the class as much as you want
• class Fraction public Fraction() num0
  den1 private int numpublic Set(int a,
  int b) numa denb private int
  denpublic void Print(void) const cout ltlt
  num ltlt '/ ltlt den

75
Two more comments on classes

• 2) Can have private methods. These methods
  can only be invoked by other methods in the
  class.
• class Fraction
• int num, den
• int reduce(int a, int b)
• // returns greatest-common-divisor of a b
• public

76
Lecture 11

• Today
• Practice for exam one
• Exam one is Friday
• 3 tracing problems (15 each)
• 2 coding problems (25 each)

77
Lecture 12

• Today
• Survey
• More with overloading
• Project Three assigned
• Reading
• Pages 458-476 (overloading)
• Assignments
• Project Three is due next Monday (2/14)

78
More with overloading

• So far, we have
• Overloaded function names
• myFunction(int)
• myfunction(double, char)
• Overloaded class constructors
• Fraction()
• Fraction(int)
• Fraction(int, int)
• Overloaded class methods
• AddTo(const Fraction a)
• AddTo(int)

79
Overloading basic operators

• Consider the operator
• int a5, b10, c double a2.5, b3.1, c
• c a b c a b
• On the left side, works with integers
• On the right side, works with doubles
• We need to be able to use with Fractions
• Fraction a(1,2), b(2,3), c
• c a b

80
Two solutions to the problem

• Solution 1 Overload the operator, adding
  another method to the class itself
• Solution 2 Overload the operator as a friend
  function of the class
• Both methods work
• Book talks about the issue on page 442
• Will discuss pros cons to each in future

81
Solution 1 Class Methods

• class Fraction int num, den
• publicFraction()Fraction(int a, int b)void
  Print(void) constFraction operator
  (const Fraction f) Fraction
  temp temp.numnumf.denf.numden
  temp.den den f.den return temp

• int main( ) Fraction a(1,2)Fraction
  b(2,3)Fraction ccab c.Print()cout ltlt
  endlcca c.Print()cout ltlt endl
• Note cab is
• interpreted as
• ca.operator(b)

82
Solution 2 Class friends

• class Fraction int num, den
• publicFraction()Fraction(int a, int b)void
  Print(void) constfriend Fraction operator
  (const Fraction f, const Fraction g)
• Fraction operator (const Fraction a,
  const Fraction b) Fraction
  temptemp.num a.numb.den b.numa.den
  temp.den a.den b.denreturn temp

• int main( ) Fraction a(1,2)Fraction
  b(2,3)Fraction cc a bc.Print()cout ltlt
  endlc c ac.Print()cout ltlt endl

83
One final comment

• We had to overload (else would not work)
• We did not overload operator, why?
• Assignment (by default) simply copies all fields
  from one object (right-hand-side) to another
  object (left-hand-side)
• This is exactly what we want to happen
• Copies the numerator, copies the denominator
• This can lead to problems
• This is not always desirable, see problems later
• Generally OK when just have simple data

84
Project Three

• Write a class called DayTime
• Used for time-keeping (keeps track of times)
• A time represents the number of seconds that
  have elapsed since midnight January 1st, 1980
• Have 2 constructors in class (write them)
• Have methods to get and set a time object
• Have methods to increment a time object
• Have method to determine elapsed time between two
  objects
• Have a main routine designed for testing

85
Lecture 13

• Today
• More with overloading
• Survey results
• Reading
• Pages 458-476 (overloading)
• Assignments
• Project Three is due next Monday (2/14)

86
More with overloading

• Goal make our data type look like built-in type
• int a, b, c Fraction x, y, z
• c a b z x y
• cout ltlt c ltlt endl cout ltlt z ltlt endl
• Last time, looked at how to overload
• As a member function
• ca.operator(b) which returns a new Fraction as
  its result and you can (should) write as c a
  b
• As a friend function
• c a b where is a friend that can
  manipulate num and den of the fractions a and b

87
Today overload input output

• Need to write a version of ltlt and gtgt that allows
  us to read (and write) Fractions
• Will implement this as a friend function
• Need to look at the arguments to ltlt and gtgt
• int a, double b int a double b
• cout ltlt a cin gtgt a
• cout ltlt b cin gtgt b
• cout ltlt a ltlt b cin gtgt a gtgt b

88
What are the parameters?

• First argument (left of ltlt or gtgt) is some I/O
  stream (cin, cout, input or output file stream)
• This stream is changed as a result
• Add characters to an output stream (new output)
• Remove characters from an input stream (read
  input)
• Second argument is the actual data item
• Should not change when printing (const)
• Should change when reading (not a const)
• Parameters
• Output (ostream os, const Fraction f)
• Input (istream is Fraction f)

89
Overloading ltlt gtgt (first try)

• class Fraction
• int num, den
• public
• Fraction() num0 den1
• Fraction(int a, int b)
• numa if (b!0) denb else den1
• friend void operator ltlt
• (ostream os, const Fraction f)
• void operator ltlt
• (ostream os, const Fraction f)
• os ltlt f.num ltlt '/' ltlt f.den

• int main( )
• Fraction a(1,2)
• Fraction b(2,3)
• cout ltlt a
• cout ltlt b
• cout ltlt endl
• THIS WORKS!
• (pretty much)

90
Problem with our solution

• Lots of times you output multiple items at once
  (or read in multiple items at once)
• cout ltlt the answer is ltlt a ltlt endl
• cin gtgt length gtgt width
• When we try and do that, we get the following
  errors
• Fraction a(1,2), b(2,3)
• Cout ltlt a ltlt b ltlt endl
• No match for void ltlt Fraction
• Candidates are operator ltlt)ostream , const

91
Consider cout ltlt a ltlt b ltlt endl

• Process the first operation
• cout ltlt a
• This result should be able to be used as a
  modified version of cout for next operation
• (cout ltlt a) ltlt b is really cout ? ltlt b
• This result should be used as modified version of
  cout for third (last) operation
• ((coutltlta)ltltb) ltlt endl is really cout ? ? ltlt
  endl
• This is not what we have, our function returns
  void, not a new (modified) output stream

92
Easy solution to problem

• Modify our return type
• Want to return the output stream we just modified
• What is the value of an output stream?
• If your function is set as
• friend ostream operator ltlt (ostream os, const
  ...)
• System tries to get the actual value of that
  output stream, errors generated (accessing
  private data)
• If your function is set as
• friend ostream operator ltlt (ostream os, const
  ...)
• Works, returns reference to new output stream

93
Overloading ltlt gtgt (correct)

• class Fraction
• int num, den
• public
• Fraction() num0 den1
• Fraction(int a, int b)
• numa if (b!0) denb else den1
• friend ostream operator ltlt
• (ostream os, const Fraction f)
• ostream operator ltlt
• (ostream os, const Fraction f)
• os ltlt f.num ltlt '/' ltlt f.den return os

• int main( )
• Fraction a(1,2)
• Fraction b(2,3)
• cout ltlt a
• ltlt b
• ltlt endl

94
Lecture 14

• Today
• More with overloading
• Reading
• Pages 458-476 (overloading)
• Assignments
• Project Three is due Monday (2/14)

95
Assigning values to Fractions

• Developed the routine Set(int, int)
• Also have SetNum(int) and SetDen(int)
• So much cleaner with integers and doubles
• int x double y
• x 234 y 2.1492
• We need this for Fractions
• Fraction a, b
• a 15 a 3.5
• b a 7 b a 2.1
• Our existing class (pretty much) handles this

96
Our Fraction Class

• class Fraction
• int num, den
• public
• Fraction() cout ltlt "default" ltlt endl num0
  den1
• Fraction(int a) cout ltlt "int" ltlt endl num a
  den 1
• Fraction(int a, int b) cout ltlt "two int" ltlt
  endl numa if (b!0) denb else den1
• friend Fraction operator (const Fraction f,
  const Fraction g)
• friend ostream operator ltlt (ostream os, const
  Fraction f)

• Fraction operator (const
• Fraction a, const Fraction b) cout ltlt
  "in with " ltlt a ltlt " and " ltlt b ltlt
  endlFraction resultresult.num a.numb.den
  b.numa.denresult.den a.den
  b.denreturn result
• ostream operator ltlt (ostream os, const
  Fraction f) os ltlt f.num ltlt '/' ltlt
  f.denreturn os

97
Run the following program

• int main( )
• Fraction a(1,2), b(2,3), c(3,4), d, e, f
• d a b c
• cout ltlt d ltlt endl
• e d 1
• cout ltlt e ltlt endl
• f e 2.2
• cout ltlt f ltlt endl

• two int (3 of these messages)default (3 of
  these messages)in with 1/2 and 2/3defaultin
  with 7/6 and ¾default46/24intin with
  46/24 and 1/1default70/24intin with 70/24
  and 2/1default118/24

98
Actually not that strange

• C will try and convert types to perform
  operations requested
• Fraction Fraction int
• Asks Can I convert an int to a Fraction?
• Yes, we have a constructor that takes an integer
  and returns the equivalent Fraction. System
  invokes constructor to build Fraction from int.
• What about Fraction Fraction double?
• Yes. Can convert double to int (truncate). Can
  then convert int to Fraction (constructor).

99
What about a b c d ?

• Modify our operator to trace execution
• Fraction operator(const Fraction a, const
  Fraction b)
• Fraction result
• cout ltlt "in with " ltlt a ltlt " and " ltlt b ltlt
  endl
• result.num a.numb.den b.numa.den
• result.den a.den b.den
• return result
• Main program Output
• Fraction a(1,2), b(2,3), c(3,4), d in with
  1/2 and 2/3
• d a b c in with 7/6 and 3/4
• cout ltlt d ltlt endl 46/24

100
What about a b c d?

• This works for integers
• int a, b, c d
• a b c d 5
• How do we get it to work for Fractions?
• Do we have to do anything special? NO
• Built-in system operator does what we need
• Assignment operator works right-to-left
• ( a ( b (c (d 5) ) ) )

101
Lecture 15

• Today
• Two last items with classes
• Project four overview
• Reading
• Should now be finished with Chapter 6 and Section
  8.1 (both cover classes)
• Assignments
• Project Four is due next Monday (21st)
• Exam Two is next Wednesday (23rd)

102
More with Constructors

• Initialization Section
• Book, pages 876-877
• Constructor syntax
• Constructor(args) init-section
  definition-section
• Example
• Fraction(int a, int b) num a den b
• Fraction(int a, int b) num(a), den(b)
• For our classes to date, no real difference
• Can impact classes later on (will discuss in 325)
• Some members (const data items) must use
  init-section

103
Copy Constructor

• Declare a variable by making a copy of an
  existing variable.
• Fraction a(b) // new variable a, same value as
  b
• Fraction a b // same thing, slightly different
  syntax
• How do you code this? (two choices)
• Fraction(const Fraction f)
• num f.num den f.den
• Fraction(const Fraction f) num(f.num),
  den(f.den)

104
More on copy constructor

• How is this different from assignment?
• Copy constructor declares a new variable
• Fraction a(b) // new variable a, same value as
  b
• Fraction a b // same thing, slightly different
  syntax
• Assignment statement assumes variables have
  already been declared
• Fraction a, b, c // declares variables
  (constructors)
• a b // assignment statements
• c a

105
Project Four

• Write a complete class
• Complex numbers
• Class declaration has been provided
• You need to provide
• Definition of all methods and friends for class
• Main program to test your class

106
Lecture 16

• Today
• Basic data structures
• Reading
• This material is not in our textbook
• Assignments
• Project Four is due Monday (21st)
• Exam Two is in one week (23rd)

107
Data Structures

• Have spent the last few weeks looking at classes
  in C
• Allows us to build our own data types
• Can cleanly use these data types in programs
• Start looking at data structures that are
  commonly used in computing applications
• Build classes for these types

108
What are these data structures?

• List
• A collection of items
• Users logged onto a system, files in a directory
• Two special types of a list we will study
• Stack add and remove from one end of the list
• Used in programming languages (compiling,
  execution)
• Queue put things on one end of list, take off
  other
• Jobs waiting to be printed
• Binary Tree
• More efficient (sorts, searches, etc)

109
Data structure characteristics

• Lists, queues, stacks, binary trees can be
  implemented in a number of ways
• These can be classified into one of two basic
  philosophies
• Method 1 Pre-determine the maximum size of the
  data structure, allocate space for that, assume
  you will never exceed this limit
• Method 2 Your data structure has the ability to
  grow (dynamically) as needed to accommodate
  whatever data that you put into it.

110
Static versus Dynamic

• Initially, we will examine all the data
  structures using static-sized data structures
• Next, CS 124 will discuss pointers and dynamic
  memory allocation
• Then we will revisit the data structures using
  dynamic techniques

111
Lists our first data structure

• Want to maintain a list of things
• Users logged into a system, files in a directory
• Assume a maximum size for our list
• When studying this data structure, we will assume
  a list of integers. However, it should be
  apparent that it is easy to swap this type with
  any other (Fraction, file, etc.) as needed

112
Simple List of Integers

• Class maintains an array and a variable to keep
  track of the number in the array
• class List int data100 // the dataint
  numElem // counter
• publicList() numElem 0 Add(int e)
  datanumElem e friend ostream
  operatorltlt (ostream, const List)

• ostream operatorltlt
• (ostream os, const List x) os ltlt " "for
  (int a0altx.numElema) os ltlt x.dataa ltlt "
  " os ltlt ""return os
• int main( ) List myListmyList.Add(5)myList.Ad
  d(10)cout ltlt myList ltlt endl

113
Closer look at our List class

• Problems
• How do you find an element?
• No order, must search every element
• How do you know if youre adding a duplicate?
• Current method allows duplicates
• How do you remove an element?
• Find the element, push all elements past it
  down one slot in the array (not very efficient)

114
Improvements to our List class

• Keep things in order (ordered list)
• Makes it easier to find an element
• Dont have to search entire array, just until you
  find the item or encounter an element in the list
  bigger than your item
• Makes it easier to determine if you are adding a
  duplicate element
• Add in order, will encounter it as part of Add
  routine
• Worry a bit about efficiency
• Want to find an add/remove routine that is a bit
  more efficient (dont process the entire list)

115
Our improved list class

• Keep two arrays plus some related variables
• To get more efficient in the time it takes to
  perform operations, we sacrifice a bit in terms
  of the space needed to store the data type
• Keep
• Array that has the actual data (integers) in it
• Array that tells where to look for the next item
• A variable that tells where the data starts
  (first)
• A variable that tells where to add next item
  (free)

116
Example of this data

• First 3 // first item in the list
• Free 4 // next place to add an item
• List is 27, 48, 52, 78, 85, 95
• Will add the next item at location 4
• Note list has been manipulated a bit, that is
  why it does not just start in order from the
  beginning

117
Adding to our list

• Want to add 50
• First 3, Free 4
• Find appropriate spot in array (between 48 52)
• Grab the first free item (spot 4)
• Change 48 to point to 4 (now contains 50)
• Change 4 to point to 52 (the 52 entry)
• Change free to point to the next free spot (9)

118
Lecture 17

• Today
• Static Linked Lists
• Assignments
• Project Four is due Monday (21st)
• Exam Two is next Wednesday
• 3 tracing, 2 coding problems
• Open Book, Open Note
• Practice Test next Monday

119
Static Linked Lists

• Pre-defined, fixed size to the list
• Two arrays
• Data the actual items in the list
• Next subscript of the next items location in
  list
• Two variables
• First location of first item within the array
  (subscript)
• Free location of next free spot in the array
  (subscript)

120
We want to write this class

• Internal data
• Two arrays
• Two integer variables
• Methods
• Constructor (sets first, free, next array)
• Add operation (inserts in order, no duplicates)
• Print operation (overload ltlt operator)

121
Basic Class Declaration

• class StaticList int data100 // the element
  in the listint next100 // location of next
  elementint first, free // subscripts
• publicStaticList() // constructorint
  Add(int) // Add operationfriend ostream
  operatorltlt (ostream, const StaticList)

122
Constructor

• Initially nothing in list, all elements available
• StaticListStaticList()
• first -1
• free 0
• for (int a0 alt99 a) nextaa1
• next99-1
• Need to set the next field so that you have a
  list of all the available slots to insert items

123
Overloading output operator

• Want to print out the list in the format of
• first-item second-item last-item
• Our friend operator works as
• ostream operatorltlt(ostream os, const
  StaticList x)
• os ltlt " "
• int a x.first
• while (a ! -1)
• os ltlt x.dataa ltlt " " ax.nexta
• os ltlt ""
• return os

124
Inserting new data into the list

• Need to worry about various situations
• List is full
• Error cannot add this item
• List is empty
• Add the item
• Must also update first appropriately
• Adding an item before the current first item
• Add the item
• Must also update first appropriately
• Adding the item anywhere past the first of the
  list
• Add the item, update the appropriate subscripts

125
The Add routine

• int StaticListAdd(int e) if (free -1) //
  list is full code goes here if (first -1)
  // list is empty code goes here if (e lt
  datafirst) // adding at front of list code
  goes here else add in list itself // remaining
  case

126
The Add routine (slide 2)

• int StaticListAdd(int e) if (free -1)
  // list is full cout ltlt "Error in Add List
  is full" ltlt endl return 0 // zero indicates
  failureif (first -1) // list is empty
  code goes here if (e lt datafirst) // adding
  at front of list code goes here e
