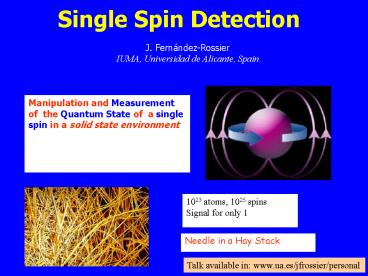

Single Spin Detection

1
Single Spin Detection
J. Fernández-Rossier IUMA, Universidad de
Alicante, Spain

Manipulation and Measurementof the Quantum
State of a single spin in a solid state
environment
1023 atoms, 1025 spins Signal for only 1
Needle in a Hay Stack
Talk available in www.ua.es/jfrossier/personal
2
Single Spin Detection
CdTe nanocrystal 1Mn
3
Outline
The institute of Complex Adaptative Matter
encourages (forces) scientist to explain their
work to other scientist in pedestrian terms. I
have learned more science through workshops
organized by this institute and the personal
contacts they generated than I have from all
other professional activities combined. R.
Laughlin, A Different Universe, (2005)

• Motivation
• II. Basic Stuff
• III. Quantum Simulations
• IV. Conclusions

4
Single Spin Detection

• RELATED WORK
• J. Fernández-Rossier, C. Piermarocchi, P.C. Chen,
  L. J. Sham, and A. H. MacDonald,
• Theory of Laser induced ferromagnetism
• Phys. Rev. Lett. 93, 127201 (2004)
• J. Fernández-Rossier, L. BreyFerromagnetism
  mediated by few electrons in semimagnetic quantum
  dots Phys. Rev. Lett. 93, 1172001 (2004)
• G. Chiappe, J. Fernández-Rossier, E. Anda, E.
  LouisSingle-photon exchange interaction in a
  semiconductor microcavityCond-mat/0407639

Talk available in www.ua.es/jfrossier/personal
5

• Motivation
• II. Basic Concepts
• III. Quantum Simulations
• IV. Results and Conclusions

6
Motivation I.Understanding QM from small...

7
.....to big
8
Not only a philosophycal question
1 Atom
Shut up and calculate. -- R. Feynman
"I think it is safe to say that no one
understands quantum mechanics." -- R. Feynman
1023 Atoms BULK
9
Motivation II. The limits of miniaturization
Single electron transistor
10
Miniaturization The limits
Going Nano
Single atom magnet
11
Going around THE LIMITS

• New Questions
• Smallest wire?
• Smallest magnet?
• Smallest diode?
• Smallest transistor?
• New challenges
• Single spin control
• Single molecule transport
• Nanocrystal formation

• Different Materials
• Molecular Electronics
• Oxides
• Different Ideas
• Spintronics
• DNA
• Quantum Computing

Electronics we aint seen nothing yet
12

• Motivation
• II. Basic Concepts
• III. Quantum Simulations
• IV. Conclusions

13
Basic Concepts

• Quantum computing for absolute beginners
• Quantum bit vs classical bit
• Spin S1/2 as a qbit
• Quantum software and hardware
• Diluted Magnetic Semiconductors
• Quantum Dots

14
What is a qbit?
Will you marry me?
15
What is a qbit (II)?
A qbit is like a spin ½
16
What is a quantum computation?
I. Prepare initial state

• Perform a well defined sequence ofquantum
  operations (Quantum gates)

Engineering Hamiltonian. Universal Gates
III. Read final state (single spin detection)
17
Can something useful be done?
Quantum factorization Algorithm (Shor 90)
Classical factorization algorithm
Number of bits N2n Number of steps n2
Example n10 Qsteps 100 Csteps 10.000
QUANTUM SOFTWARE A few algorithms and ideas
Number of steps n 2n
18
Quantum Hardware Proposals
Not in
yet
19
Diluted Magnetic Semiconductors
20
Charge doping of Semiconductors
Pure ZnTe
p- ZnTe Zn (Te,N)
CHARGE DOPING
21
Spin doping diluted Magnetic Semiconductors
(DMS)
Zn Ar 3d10 4s2 Mn Ar 3d5 4s2
Conduction Band Mainly s orbitals of Zn Valence
Band Mainly p orbitals of Te Mn d levels
SPIN DOPING
22
Why S5/2 ?
S5/2
Ground State
S3/2
Excited States
Mn SPIN ROTATIONAL INVARIANCE S5/2. 2S16
DEGENARATE STATES
S1/2
Real Space Cartoon
S5/2. LOWEST Coulomb Repulsion (Hunds
Rule) Magnetic Moment SPIN S5/2
?3/2
?5/2
?1/2
23
How to manipulate the spins ?
24
Electrons, holes, Mn and their interactions
SPIN attraction
SPIN repulsion
SPIN FLIP
Spin of the CB electron and VB hole
SPIN ORBIT MATTERS A LOT
CARRIER WAVE FUNCTION ENGINEERING
25
Single quantum spectroscopy?
CdSe nanocrystal TEM
CONFINEMENT
Absorption
Emission
5nm
26

• Motivation
• II. Basic Concepts
• III. Quantum Simulations
• IV. Conclusions

27
S5/2 qbits in semiconductor nanocrystals?
dummy
dummy
Spin evolution
Absorption
Emission
1 SPIN 5/2 2 QBITS
28
4x6N
Exciton States Manifold (XSM)
6N
Ground State Manifold (GSM)

• Method
• Calculation of one-body wave functions (for a
  given dot)
• Evaluation of many body exciton-Mn spin
  Hamiltonian
• Exact diagonalization of GSM
• Exact diagonalization of XSM
• Linear reponse theory

29
HAMILTONIAN
Ground State Manifold (GSM)
6N
Exciton States Manifold (XSM)
e
Heisenberg
4? 6N
Ising
h
SPIN ORBIT INTERACTION
30
Spin orbit and OPTICAL SELECTION RULES
How can light affect spin?
31
Valence band Spin orbit Ising coupling
SHAPE MATTERS Quenching the Hole-Mn spin flip
32
GSM and XSM spectrum
Magnetic Field (0,0,5)
1 Mn NG6 NX24
2 Mn NG36 NX244
3Mn NG216 NX864
E(meV)
E(meV)
33
PL results
Photoluminescence (PL) Theory
PL, theory
PL, experiment
Spontaneous Emission from X to G
Energy conservation
Optical Selection rules SPIN BLOCKADE
PL SPECTRUM
Energy (meV)
Occupation of excited state
Thermal like occupation
34
Standardoptical selection rule
OPTICAL SPIN BLOCKADE
Franck Condon Spin Blockade
GSM
Photon QUANTUM MEASUREMENT
XSM
35
N3. Narrowing and shift
PL, experiment
0T
2T
4T
6T
8T
10T
P. S. Dorozhkin, Phys. Rev. B 68, 195313 (2003)
36
Bell States in DMS?
HIGLY ENTANGLED
Lowest energy state Of XSM
GSM
Intriguing question can the detection of a
linearly polarized photon yield a Bell state?
37
CONCLUSIONS (and future work)

• Single spin detection possible due to
• Chemical Engineering (nanocrystals)
• Advanced material processing and electronics
  (multilayers, photodetectors)
• Laser technology, low temperatures
• DEEP UNDERSTANDING of the ELECTRONIC STRUCTURE
  (Solid state physics and chemistry)
• S5/2 qbits.
• Detection ok (at least N2)
• Time resolved control ok
• 2 qbit operations ok
