Crawling the Web

1

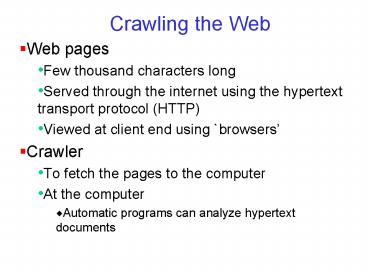

Crawling the Web

• Web pages
• Few thousand characters long
• Served through the internet using the hypertext
  transport protocol (HTTP)
• Viewed at client end using browsers
• Crawler
• To fetch the pages to the computer
• At the computer
• Automatic programs can analyze hypertext documents

2
HTML

• HyperText Markup Language
• Lets the author
• specify layout and typeface
• embed diagrams
• create hyperlinks.
• expressed as an anchor tag with a HREF attribute
• HREF names another page using a Uniform Resource
  Locator (URL),
• URL
• protocol field (HTTP)
• a server hostname (www.cse.iitb.ac.in)
• file path (/, the root' of the published file
  system).

3
HTTP(hypertext transport protocol)

• Built on top of the Transport Control Protocol
  (TCP)
• Steps(from client end)
• resolve the server host name to an Internet
  address (IP)
• Use Domain Name Server (DNS)
• DNS is a distributed database of name-to-IP
  mappings maintained at a set of known servers
• contact the server using TCP
• connect to default HTTP port (80) on the server.
• Enter the HTTP requests header (E.g. GET)
• Fetch the response header
• MIME (Multipurpose Internet Mail Extensions)
• A meta-data standard for email and Web content
  transfer
• Fetch the HTML page

4
Crawl all Web pages?

• Problem no catalog of all accessible URLs on the
  Web.
• Solution
• start from a given set of URLs
• Progressively fetch and scan them for new
  outlinking URLs
• fetch these pages in turn..
• Submit the text in page to a text indexing system
• and so on.

5
Crawling procedure

• Simple
• Great deal of engineering goes into
  industry-strength crawlers
• Industry crawlers crawl a substantial fraction of
  the Web
• E.g. Alta Vista, Northern Lights, Inktomi
• No guarantee that all accessible Web pages will
  be located in this fashion
• Crawler may never halt .
• pages will be added continually even as it is
  running.

6
Crawling overheads

• Delays involved in
• Resolving the host name in the URL to an IP
  address using DNS
• Connecting a socket to the server and sending the
  request
• Receiving the requested page in response
• Solution Overlap the above delays by
• fetching many pages at the same time

7
Anatomy of a crawler.

• Page fetching threads
• Starts with DNS resolution
• Finishes when the entire page has been fetched
• Each page
• stored in compressed form to disk/tape
• scanned for outlinks
• Work pool of outlinks
• maintain network utilization without overloading
  it
• Dealt with by load manager
• Continue till he crawler has collected a
  sufficient number of pages.

8
Typical anatomy of a large-scale crawler.
9
Large-scale crawlers performance and reliability
considerations

• Need to fetch many pages at same time
• utilize the network bandwidth
• single page fetch may involve several seconds of
  network latency
• Highly concurrent and parallelized DNS lookups
• Use of asynchronous sockets
• Explicit encoding of the state of a fetch context
  in a data structure
• Polling socket to check for completion of network
  transfers
• Multi-processing or multi-threading Impractical
• Care in URL extraction
• Eliminating duplicates to reduce redundant
  fetches
• Avoiding spider traps

10
DNS caching, pre-fetching and resolution

• A customized DNS component with..
• Custom client for address resolution
• Caching server
• Prefetching client

11
Custom client for address resolution

• Tailored for concurrent handling of multiple
  outstanding requests
• Allows issuing of many resolution requests
  together
• polling at a later time for completion of
  individual requests
• Facilitates load distribution among many DNS
  servers.

12
Caching server

• With a large cache, persistent across DNS
  restarts
• Residing largely in memory if possible.

13
Prefetching client

• Steps
• Parse a page that has just been fetched
• extract host names from HREF targets
• Make DNS resolution requests to the caching
  server
• Usually implemented using UDP
• User Datagram Protocol
• connectionless, packet-based communication
  protocol
• does not guarantee packet delivery
• Does not wait for resolution to be completed.

14
Multiple concurrent fetches

• Managing multiple concurrent connections
• A single download may take several seconds
• Open many socket connections to different HTTP
  servers simultaneously
• Multi-CPU machines not useful
• crawling performance limited by network and disk
• Two approaches
• using multi-threading
• using non-blocking sockets with event handlers

15
Multi-threading

• logical threads
• physical thread of control provided by the
  operating system (E.g. pthreads) OR
• concurrent processes
• fixed number of threads allocated in advance
• programming paradigm
• create a client socket
• connect the socket to the HTTP service on a
  server
• Send the HTTP request header
• read the socket (recv) until
• no more characters are available
• close the socket.
• use blocking system calls

16
Multi-threading Problems

• performance penalty
• mutual exclusion
• concurrent access to data structures
• slow disk seeks.
• great deal of interleaved, random input-output on
  disk
• Due to concurrent modification of document
  repository by multiple threads

17
Non-blocking sockets and event handlers

• non-blocking sockets
• connect, send or recv call returns immediately
  without waiting for the network operation to
  complete.
• poll the status of the network operation
  separately
• select system call
• lets application suspend until more data can be
  read from or written to the socket
• timing out after a pre-specified deadline
• Monitor polls several sockets at the same time
• More efficient memory management
• code that completes processing not interrupted by
  other completions
• No need for locks and semaphores on the pool
• only append complete pages to the log

18
Link extraction and normalization

• Goal Obtaining a canonical form of URL
• URL processing and filtering
• Avoid multiple fetches of pages known by
  different URLs
• many IP addresses
• For load balancing on large sites
• Mirrored contents/contents on same file system
• Proxy pass
• Mapping of different host names to a single IP
  address
• need to publish many logical sites
• Relative URLs
• need to be interpreted w.r.t to a base URL.

19
Canonical URL

• Formed by
• Using a standard string for the protocol
• Canonicalizing the host name
• Adding an explicit port number
• Normalizing and cleaning up the path

20
Robot exclusion

• Check
• whether the server prohibits crawling a
  normalized URL
• In robots.txt file in the HTTP root directory of
  the server
• species a list of path prefixes which crawlers
  should not attempt to fetch.
• Meant for crawlers only

21
Eliminating already-visited URLs

• Checking if a URL has already been fetched
• Before adding a new URL to the work pool
• Needs to be very quick.
• Achieved by computing MD5 hash function on the
  URL
• Exploiting spatio-temporal locality of access
• Two-level hash function.
• most significant bits (say, 24) derived by
  hashing the host name plus port
• lower order bits (say, 40) derived by hashing the
  path
• concatenated bits use d as a key in a B-tree
• qualifying URLs added to frontier of the crawl.
• hash values added to B-tree.

22
Spider traps

• Protecting from crashing on
• Ill-formed HTML
• E.g. page with 68 kB of null characters
• Misleading sites
• indefinite number of pages dynamically generated
  by CGI scripts
• paths of arbitrary depth created using soft
  directory links and path remapping features in
  HTTP server

23
Spider Traps Solutions

• No automatic technique can be foolproof
• Check for URL length
• Guards
• Preparing regular crawl statistics
• Adding dominating sites to guard module
• Disable crawling active content such as CGI form
  queries
• Eliminate URLs with non-textual data types

24
Avoiding repeated expansion of links on duplicate
pages

• Reduce redundancy in crawls
• Duplicate detection
• Mirrored Web pages and sites
• Detecting exact duplicates
• Checking against MD5 digests of stored URLs
• Representing a relative link v (relative to
  aliases u1 and u2) as tuples (h(u1) v) and
  (h(u2) v)
• Detecting near-duplicates
• Even a single altered character will completely
  change the digest !
• E.g. date of update/ name and email of the site
  administrator
• Solution Shingling

25
Load monitor

• Keeps track of various system statistics
• Recent performance of the wide area network (WAN)
  connection
• E.g. latency and bandwidth estimates.
• Operator-provided/estimated upper bound on open
  sockets for a crawler
• Current number of active sockets.

26
Thread manager

• Responsible for
• Choosing units of work from frontier
• Scheduling issue of network resources
• Distribution of these requests over multiple ISPs
  if appropriate.
• Uses statistics from load monitor

27
Per-server work queues

• Denial of service (DoS) attacks
• limit the speed or frequency of responses to any
  fixed client IP address
• Avoiding DOS
• limit the number of active requests to a given
  server IP address at any time
• maintain a queue of requests for each server
• Use the HTTP/1.1 persistent socket capability.
• Distribute attention relatively evenly between a
  large number of sites
• Access locality vs. politeness dilemma

28
Text repository

• Crawlers last task
• Dumping fetched pages into a repository
• Decoupling crawler from other functions for
  efficiency and reliability preferred
• Page-related information stored in two parts
• meta-data
• page contents.

29
Storage of page-related information

• Meta-data
• relational in nature
• usually managed by custom software to avoid
  relation database system overheads
• text index involves bulk updates
• includes fields like content-type, last-modified
  date, content-length, HTTP status code, etc.

30
Page contents storage

• Typical HTML Web page compresses to 2-4 kB (using
  zlib)
• File systems have a 4-8 kB file block size
• Too large !!
• Page storage managed by custom storage manager
• simple access methods for
• crawler to add pages
• Subsequent programs (Indexer etc) to retrieve
  documents

31
Page Storage

• Small-scale systems
• Repository fitting within the disks of a single
  machine
• Use of storage manager (E.g. Berkeley DB)
• Manage disk-based databases within a single file
• configuration as a hash-table/B-tree for URL
  access key
• To handle ordered access of pages
• configuration as a sequential log of page
  records.
• Since Indexer can handle pages in any order

32
Page Storage

• Large Scale systems
• Repository distributed over a number of storage
  servers
• Storage servers
• Connected to the crawler through a fast local
  network (E.g. Ethernet)
• Hashed by URLs
• T3' grade leased lines.
• To handle 10 million pages (40 GB) per hour

33
Large-scale crawlers often use multiple ISPs and
a bank of local storage servers to store the
pages crawled.
34
Refreshing crawled pages

• Search engine's index should be fresh
• Web-scale crawler never completes' its job
• High variance of rate of page changes
• If-modified-since request header with HTTP
  protocol
• Impractical for a crawler
• Solution
• At commencement of new crawling round estimate
  which pages have changed

35
Determining page changes

• Expires HTTP response header
• For page that come with an expiry date
• Otherwise need to guess if revisiting that page
  will yield a modified version.
• Score reflecting probability of page being
  modified
• Crawler fetches URLs in decreasing order of
  score.
• Assumption recent past predicts the future

36
Estimating page change rates

• Brewington and Cybenko Cho
• Algorithms for maintaining a crawl in which most
  pages are fresher than a specified epoch.
• Prerequisite
• average interval at which crawler checks for
  changes is smaller than the inter-modification
  times of a page
• Small scale intermediate crawler runs
• to monitor fast changing sites
• E.g. current news, weather, etc.
• Patched intermediate indices into master index

37
Putting together a crawler

• Reference implementation of the HTTP client
  protocol
• World-wide Web Consortium (http//www.w3c.org/)
• w3c-libwww package

38
Design of the core components Crawler class.

• To copy bytes from network sockets to storage
  media
• Three methods to express Crawler's contract with
  user
• pushing a URL to be fetched to the Crawler
  (fetchPush)
• Termination callback handler (fetchDone) called
  with same URL
• Method (start) which starts Crawler's event loop.
• Implementation of Crawler class
• Need for two helper classes called DNS and Fetch
