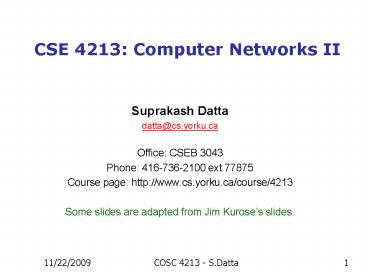

CSE 4213 Computer Networks II

• Suprakash Datta
• datta_at_cs.yorku.ca
• Office CSEB 3043
• Phone [phone] ext 77875
• Course page http//www.cs.yorku.ca/course/4213
• Some slides are adapted from Jim Kuroses slides.

2
Administrivia

• Course webpage http//www.cs.yorku.ca/course/4213

• Lectures Tue-Thu 230-400 pm (VH 3005)
• Exams midterm (25), final (40)
• Homework (35) divided between lab assignments
  (20) and project (15).
• Slides should be available the morning of the
  class
• Office hours Tuesday 4-6 pm, Th 12 noon -2 pm or
  by appointment at CSB3043

Textbook
Computer Networking A Top Down Approach
Featuring the Internet, 4th edition. Jim Kurose,
Keith Ross Addison-Wesley, 2008. ISBN
0-321-49770-8
3
Administrivia contd.

• Cheating will not be tolerated. Visit the webpage
  for more details on policies etc.
• Be careful not to misuse packet sniffing
  software.
• I would like to have a 2-hour midterm. Your
  cooperation is greatly appreciated.
• TA none.
• There will be some non-credit homework to help
  you study.
• I may have an extra-credit assignment. This will
  be announced beforehand.

4
Course objectives

• Understand the full TCP/IP architecture.
• Become familiar with advanced topics
• - P2P systems, multimedia communication
  (including VoIP), network security, wireless
  sensor networks.
• Learn about active research areas.

5
Major differences with 3213

• More algorithmic (less math!)
• More hands-on TCP/IP programming.

6
Internet structure network of networks

• roughly hierarchical
• at center tier-1 ISPs (e.g., UUNet,
  BBN/Genuity, Sprint, ATT), national/international
  coverage
• treat each other as equals

Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
7
Tier-1 ISP e.g., Sprint
Sprint US backbone network
8
Internet structure network of networks

• Tier-2 ISPs smaller (often regional) ISPs
• Connect to one or more tier-1 ISPs, possibly
  other tier-2 ISPs

Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
9
Internet structure network of networks

• Tier-3 ISPs and local ISPs
• last hop (access) network (closest to end
  systems)

Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
10
Internet structure network of networks

• a packet passes through many networks!

Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
11
A closer look at network structure

• network edge applications and hosts

• access networks, physical media wired, wireless
  communication links

• network core
• interconnected routers
• network of networks

12
The network edge

• end systems (hosts)
• run application programs
• e.g. Web, email
• at edge of network

• client/server model
• client host requests, receives service from
  always-on server
• e.g. Web browser/server email client/server

• peer-peer model
• minimal (or no) use of dedicated servers
• e.g. Skype, BitTorrent

13
Network edge reliable data transfer service

• Goal data transfer between end systems
• handshaking setup (prepare for) data transfer
  ahead of time
• Hello, hello back human protocol
• set up state in two communicating hosts
• TCP - Transmission Control Protocol
• Internets reliable data transfer service

• TCP service RFC 793
• reliable, in-order byte-stream data transfer
• loss acknowledgements and retransmissions
• flow control
• sender wont overwhelm receiver
• congestion control
• senders slow down sending rate when network
  congested

14
Network edge best effort (unreliable) data
transfer service

• Apps using TCP
• HTTP (Web), FTP (file transfer), Telnet (remote
  login), SMTP (email)
• Apps using UDP
• streaming media, teleconferencing, DNS, Internet
  telephony

• Goal data transfer between end systems
• same as before!
• UDP - User Datagram Protocol RFC 768
• connectionless
• unreliable data transfer
• no flow control
• no congestion control

15
Internet Design Philosophy

• Simple core, complex edge
• Best effort service
• Great support for heterogeneity
• Dynamic by design
• One network for many, many purposes
• Designed primarily for non-real-time text traffic
• with no QoS requirements other than reliable
  delivery.
• Q Does this explain why the internet does not
  work well for many applications?

16
Protocol Layers

• Networks are complex!
• many pieces
• hosts
• routers
• links of various media
• applications
• protocols
• hardware, software

• Pros and cons of layering
• explicit structure allows identification,
  relationship of complex systems pieces
• modularization eases maintenance, updating of
  system
• change of implementation of layers service
  transparent to rest of system
• Inefficient?

17
Internet protocol stack

• application supporting network applications
• FTP, SMTP, STTP
• transport host-host data transfer
• TCP, UDP
• network routing of datagrams from source to
  destination
• IP, routing protocols
• link data transfer between neighboring network
  elements
• PPP, Ethernet
• physical bits on the wire

18
Encapsulation
source
message
application transport network link physical
segment
datagram
frame
switch
destination
application transport network link physical
router
19
Internet History
1961-1972 Early packet-switching principles

• 1972
• ARPAnet demonstrated publicly
• NCP (Network Control Protocol) first host-host
  protocol
• first e-mail program
• ARPAnet has 15 nodes

• 1961 Kleinrock - queueing theory shows
  effectiveness of packet-switching
• 1964 Baran - packet-switching in military nets
• 1967 ARPAnet conceived by Advanced Research
  Projects Agency
• 1969 first ARPAnet node operational

20
Internet History
1972-1980 Internetworking, new and proprietary
nets

• 1970 ALOHAnet satellite network in Hawaii
• 1973 Metcalfes PhD thesis proposes Ethernet
• 1974 Cerf and Kahn - architecture for
  interconnecting networks
• late70s proprietary architectures DECnet, SNA,
  XNA
• late 70s switching fixed length packets (ATM
  precursor)
• 1979 ARPAnet has 200 nodes

• Cerf and Kahns internetworking principles
• minimalism, autonomy - no internal changes
  required to interconnect networks
• best effort service model
• stateless routers
• decentralized control
• define todays Internet architecture

21
Internet History
1990, 2000s commercialization, the Web, new apps

• Late 1990s 2000s
• more killer apps instant messaging, P2P file
  sharing
• network security to forefront
• est. 50 million host, 100 million users
• backbone links running at Gbps

• Early 1990s ARPAnet decommissioned
• 1991 NSF lifts restrictions on commercial use of
  NSFnet (decommissioned, 1995)
• early 1990s Web
• hypertext Bush 1945, Nelson 1960s
• HTML, HTTP Berners-Lee
• 1994 Mosaic, later Netscape
• late 1990s commercialization of the Web

22
Next the programming API

• Reading Ch 2.7-2.8.
• TCP vs UDP

23
Socket programming
Goal learn how to build client/server
application that communicate using sockets

• Socket API
• introduced in BSD4.1 UNIX, 1981
• explicitly created, used, released by apps
• client/server paradigm
• two types of transport service via socket API
• unreliable datagram
• reliable, byte stream-oriented

24
Socket-programming using TCP

• Socket a door between application process and
  end-end-transport protocol (UCP or TCP)
• TCP service reliable transfer of bytes from one
  process to another

controlled by application developer
controlled by application developer
controlled by operating system
controlled by operating system
internet
host or server
host or server
25
Socket programming with TCP

• Client must contact server
• server process must first be running
• server must have created socket (door) that
  welcomes clients contact
• Client contacts server by
• creating client-local TCP socket
• specifying IP address, port number of server
  process
• When client creates socket client TCP
  establishes connection to server TCP

• When contacted by client, server TCP creates new
  socket for server process to communicate with
  client
• allows server to talk with multiple clients
• source port numbers used to distinguish clients
  (more in Chap 3)

26
Client/server socket interaction TCP
Server (running on hostid)
Client
27
Stream jargon

• A stream is a sequence of characters that flow
  into or out of a process.
• An input stream is attached to some input source
  for the process, e.g., keyboard or socket.
• An output stream is attached to an output source,
  e.g., monitor or socket.

Client process
client TCP socket
28
Socket programming with TCP

• Example client-server app
• 1) client reads line from standard input
  (inFromUser stream) , sends to server via socket
  (outToServer stream)
• 2) server reads line from socket
• 3) server converts line to uppercase, sends back
  to client
• 4) client reads, prints modified line from
  socket (inFromServer stream)

29
Example Java client (TCP)
import java.io. import java.net. class
TCPClient public static void main(String
argv) throws Exception String
sentence String modifiedSentence
BufferedReader inFromUser new
BufferedReader(new InputStreamReader(System.in))
Socket clientSocket new
Socket("hostname", 6789)
DataOutputStream outToServer new
DataOutputStream(clientSocket.getOutputStream())

Create input stream
Create client socket, connect to server
Create output stream attached to socket
30
Example Java client (TCP), cont.
Create input stream attached to socket
BufferedReader inFromServer
new BufferedReader(new
InputStreamReader(clientSocket.getInputStream()))
sentence inFromUser.readLine()
outToServer.writeBytes(sentence '\n')
modifiedSentence inFromServer.readLine()
System.out.println("FROM SERVER "
modifiedSentence) clientSocket.close()

Send line to server
Read line from server
31
Example Java server (TCP)
import java.io. import java.net. class
TCPServer public static void main(String
argv) throws Exception String
clientSentence String capitalizedSentence
ServerSocket welcomeSocket new
ServerSocket(6789) while(true)
Socket connectionSocket
welcomeSocket.accept()
BufferedReader inFromClient new
BufferedReader(new
InputStreamReader(connectionSocket.getInputStream(
)))
Create welcoming socket at port 6789
Wait, on welcoming socket for contact by client
Create input stream, attached to socket
32
Example Java server (TCP), cont
DataOutputStream outToClient
new DataOutputStream(connectionSocket.get
OutputStream()) clientSentence
inFromClient.readLine()
capitalizedSentence clientSentence.toUpperCase()
'\n' outToClient.writeBytes(capit
alizedSentence)
Create output stream, attached to socket
Read in line from socket
Write out line to socket
End of while loop, loop back and wait for another
client connection
33
Socket programming with UDP

• UDP no connection between client and server
• no handshaking
• sender explicitly attaches IP address and port of
  destination to each packet
• server must extract IP address, port of sender
  from received packet
• UDP transmitted data may be received out of
  order, or lost

34
Client/server socket interaction UDP
Server (running on hostid)
35
Example Java client (UDP)
Client process
Input receives packet (recall thatTCP received
byte stream)
Output sends packet (recall that TCP sent byte
stream)
client UDP socket
36
Example Java client (UDP)
import java.io. import java.net. class
UDPClient public static void main(String
args) throws Exception
BufferedReader inFromUser new
BufferedReader(new InputStreamReader(System.in))
DatagramSocket clientSocket new
DatagramSocket() InetAddress IPAddress
InetAddress.getByName("hostname")
byte sendData new byte1024 byte
receiveData new byte1024 String
sentence inFromUser.readLine() sendData
sentence.getBytes()
Create input stream
Create client socket
Translate hostname to IP address using DNS
37
Example Java client (UDP), cont.
Create datagram with data-to-send, length, IP
addr, port
DatagramPacket sendPacket new
DatagramPacket(sendData, sendData.length,
IPAddress, 9876) clientSocket.send(send
Packet) DatagramPacket receivePacket
new DatagramPacket(receiveData,
receiveData.length) clientSocket.receiv
e(receivePacket) String
modifiedSentence new
String(receivePacket.getData())
System.out.println("FROM SERVER"
modifiedSentence) clientSocket.close()

Send datagram to server
Read datagram from server
38
Example Java server (UDP)
import java.io. import java.net. class
UDPServer public static void main(String
args) throws Exception
DatagramSocket serverSocket new
DatagramSocket(9876) byte
receiveData new byte1024 byte
sendData new byte1024 while(true)
DatagramPacket
receivePacket new
DatagramPacket(receiveData, receiveData.length)
serverSocket.receive(receivePacket)
Create datagram socket at port 9876
Create space for received datagram
Receive datagram
39
Example Java server (UDP), cont
String sentence new
String(receivePacket.getData())
InetAddress IPAddress receivePacket.getAddress()
int port receivePacket.getPort()
String
capitalizedSentence sentence.toUpperCase()
sendData capitalizedSentence.getBytes()
DatagramPacket sendPacket
new DatagramPacket(sendData,
sendData.length, IPAddress,
port) serverSocket.send(s
endPacket)
Get IP addr port , of sender
Create datagram to send to client
Write out datagram to socket
End of while loop, loop back and wait for another
datagram
