Title: Windows 2000 OS and Application Management


1

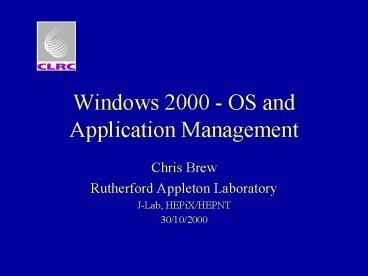

Windows 2000 - OS and Application Management
  • Chris Brew
  • Rutherford Appleton Laboratory
  • J-Lab, HEPiX/HEPNT
  • 30/10/2000

2
Outline
  • OS Installation
  • Remote Installation Services
  • Cloning by Disk Imaging
  • Application Installation and Management
  • Group Policies
  • Msi files and WinInstall LE
  • SMS
  • Delta Deploy

3
OS Installation
  • Installing each new computer by hand from a CD is
    a dull and lengthy job, taking 1 hour per
    machine
  • Microsoft know this and in Windows 2000 have
    provided the Remote Installation Service
  • Third party suppliers already knew this and most
    of the NT4 Cloning packages have been upgraded to
    handle Windows 2000. I will talk about one of
    these PowerQuest Drive Image Pro

4
Remote Installation Service
  • Microsofts answer to the third party cloning
    products
  • A network service that runs on the Windows 2000
    Server family
  • Can create machine with just the base OS or with
    pre-installed applications
  • Target machines must have a supported network
    card or a PXE boot ROM

5
RIS Usage
  • Image created by running executable (under
    Windows 2000) from the RIS server after the
    master is configured
  • Target machine boots off floppy or over the
    network with PXE
  • User provides credentials then selects which
    image to install
  • Target copies files from the server and installs
  • UnAttended.txt files (now called .sif) can be
    used to automate the question and answer part of
    the install

6
RIS Pros and Cons
  • Pros
  • Handles the SIDs and computer names automatically
  • Doesnt need admin access to run the client end
  • (Fairly) simple to create images
  • Retrofitting updated drivers into images is
    apparently possible
  • Cons
  • Unicast - gets very slow when installing multiple
    computers
  • Cannot resize partitions during the install
  • sif file parameters are limited and arcane
  • Retrofitting drivers into old images is complex,
    I found it easier to create a new image

7
Cloning by Disk Imaging
  • Third party products to copy an NTFS partition to
    a new machine have been available for a number of
    years, Ghost, Image Cast, Drive Image
  • Usually either ignore the SID (not really a
    problem under NT4) or provide a utility to scan
    the registry and replace it (Doesnt seem to work
    under Windows 2000)
  • Microsoft SysPrep tool will remove and then
    regenerate the SID on reboot

8
Drive Image v4
  • Produced by PowerQuest.
  • Comes with a bundle of additional utilities
  • Partition Magic
  • PQPrep easy interface to MS SysPrep
  • Delta Deploy network application management
  • Network boot disk builders
  • Licensed on a per machine basis lt10/workstation

9
DI4 Usage
  • PQPrep tool provides an interface to MS SysPrep
    for generation of answer files
  • Image is created after booting DOS (remote needs
    DOS network drivers, local needs FAT partition)
  • Image can then be placed anywhere network share,
    multicast server, CD, zip, jazz
  • Target machine boots DOS and unpacks image onto
    the local disk.

10
Cloning/DI Pros and Cons
  • Quick and Easy
  • Multicast lets you do many at once without
    overloading the machine serving the image
  • Image restore can be interactive, scripted or
    controlled from the server (multicast)
  • Can control disk partitioning during restore
  • Drivers
  • Computer Names are auto generated to be unique
    and meaningless
  • Need to build boot disks for all types of network
    card

11
RIS Vs DI4
  • RIS
  • Single machine 21mins
  • Four machines 48mins
  • Support for PXE boot and a limited number of
    network cards
  • Client driven
  • Drive Image
  • Single machine 12mins
  • Four machines 14mins
  • Can add manufactures drivers to list of
    supported cards
  • Server driven

12
App Installation and Management
  • Installing the operating system is only the
    beginning, even if you can deploy applications
    with the OS, you will have to provide new
    software, updates/patches to applications and
    security fixes during the lifetime of the PC
  • Many packages available to do this
  • Group Policies
  • System Management Server
  • Delta Deploy

13
Group Policies
  • Group policies started out as system policies
    under NT4 as a method of applying different
    security settings to different groups of users
  • Were not used much under NT4, they were difficult
    to set up and harder to debug if they didnt work
    as expected
  • They have been greatly expanded under Windows
    2000 and have been integrated with the
    intellimirror and msi software install
    technologies

14
msi and Intellimirror
  • msi is the new windows installer technology
  • At its heart is a script used to describe the
    files, shortcuts, registry keys, etc. created
    during the install
  • If the msi package is deployed via a Group
    Policy, files are registered with the operation
    system and each time the application is run the
    files are checked and missing or changed files
    are replaced
  • Cannot modify system files so no good for
    installing new drivers

15
App Install by Group Policy
  • Policies can be set at OU or Domain level
  • Applications can be
  • Published Available for users to install from
    Add/Remove Programs
  • Assigned to users Available when the user logs
    in, installed on first use
  • Assigned to computers Installed when the
    computer boots
  • Apps can be set to uninstall or remain if the
    policy is removed

16
Group Policies cont.
  • When a user logs into a computer many different
    group policies might apply, if there are problems
    it can be very difficult to isolate what caused
    an individual setting
  • Group policies can only be used to install
    packages that come with an msi file

17
WinInstall LE
  • Cut down version of WinInstall is supplied with
    Windows 2000 Server
  • Like the old Resource Kit utility sysdiff it
    records changes in files, the registry and ini
    files but has a GUI front end and produces an msi
    file
  • Limited by the msi file format

18
SMS
  • Much more than just a method of
    installing/controlling software but even for that
    much more configurable that group policies
  • Windows 2000 is fully supported under SMS 2.0 SP2
    and partially supported by SMS 1.2 SP4
  • SMS 2.0 seems to be simpler to understand and use
    than 1.0
  • Most large sites seem to be planning to use SMS

19
Delta Deploy
  • Utility comes with Drive Image for installing and
    updating client machines
  • Two Parts
  • Monitor/Builder Watches the changes made during
    an install then creates a self contained
    executable to re-create it
  • Delta Deploy Client/Server pair used to push
    jobs out to collections of machines

20
Delta Deploy cont.
  • Client runs as a service on NT/2000 so installs
    can be done as a privileged user
  • Not limited to deploying software can be used to
    update drivers, apply registry hacks, maybe even
    service packs

21
Summary
  • OS Installs
  • RIS is good for user on demand installs,
    service can be set up and left
  • Cloning is good for installing a number of
    machines at once
  • Application install and management
  • Group policies may work in a small scale
    environment. For large sites the extra features
    of SMS seem to make it the most attractive. For
    medium sites third party solutions such as Delta
    Deploy have more functionality than GP with less
    complexity than SMS
