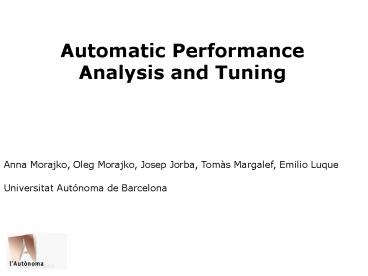

Automatic Performance Analysis and Tuning

1
Automatic Performance Analysis and Tuning
Anna Morajko, Oleg Morajko, Josep Jorba, Tomàs
Margalef, Emilio Luque Universitat Autónoma de
Barcelona
2
Content

• Our goals automatic analysis and tuning
• Dynamic automatic performance analysis
• Dynamic automatic tuning
• Conclusions and future work

3
Our goals

• Create tools that are able to automatically
  analyze the performance of parallel applications
  detect bottlenecks, explain their reasons and
  provide hints to the developer
• Static approach, based on trace files and source
  code analysis (Kappa-Pi)
• Dynamic approach, based on on the fly analysis
  of run-time performance data and using
  application model and static call graph (Dynamic
  Kappa-Pi)
• Create a tool that is able to automatically tune
  the performance of parallel applications during
  their execution without recompiling and rerunning
  them (MATE)

4
Our goals

• Static automatic analysis Kappa-Pi
• Static trace file analysis supported by source
  code examination

5
Our goals

• Dynamic automatic analysis (Dynamic Kappa-Pi)
• based on inductive reasoning (bottom-up approach)

6
Our goals

• Dynamic automatic tuning (MATE)

7
Content

• Our goals automatic analysis and tuning
• Dynamic automatic performance analysis
• Objectives
• Performance metrics and properties
• Performance analysis
• Dynamic automatic tuning
• Conclusions and future work

8
Objectives

• Analyze the performance of parallel applications
  during their execution
• Automatically detect bottlenecks
• Provide a clear explanation of the identified
  problems to developers
• Correlate problems with the source code
• Provide recommendations on possible solutions

9
Key Challenges

• What is wrong in the application?Problem
  identification bottlenecks
• Where is the critical resource?Problem location
  (hardware, OS, source code)
• When does it happen?How to organize problem
  search in time?
• How important it is?How to compare the
  importance of different problems?
• Why it happens?How to explain the reasons of the
  problem to the user?

10
Design Assumptions

• Dynamic on-the-fly analysis
• Knowledge specification
• Bottleneck detection based on inductive reasoning
  (bottom-up approach)
• Bottleneck location identification based on
  call-graph search
• Tool primarily targeted to MPI-based parallel
  programs

11
Performance Data Collection

• Application is described with basic abstractions
• Static entities (modules, funtions, static call
  graph),
• Dynamic entities (processes, threads, objects)
• Performance analysis is based on measurements of
  performance data
• Performance data is captured at run-time by means
  of dynamic instrumentation
• Add/Remove measurement
• Mesurement description specify
• What metric should be collected
• Where to insert instrumentation

12
Performance Properties

• Properties describe the specific types of
  performance behavior in a program
• Properties are higher-level abstractions used to
  represent common performance problems
• They are based on conditions dependent on certain
  performance metrics
• We can express these abstractions using ASL
  (APART Specification Language)

13
APART Specification Language

• ASL is a declarative language (like SQL)

property small_io_requests (Process p, Experiment
e) let float cost profile
(p,e).io_time int num_reads profile
(p,e).num_reads int bytes_read profile
(p,e).bytes_read in condition cost gt 0
and bytes_read/num_reads lt SMALL_IO_THRESHOLD
confidence 1 severity cost/duration
(p, e)
14
Property Evaluation
Process instance
ProcessTaskId 7 Path
/home/bin/mc...
property small_io_requests (Process p, Experiment
e) let float cost profile
(p,e).io_time int num_reads profile
(p,e).num_reads int bytes_read profile
(p,e).bytes_read in condition cost gt 0
and bytes_read/num_reads lt SMALL_IO_THRESHOLD
confidence 1 severity cost/duration
(p, e)
condition true confidence
1 severity 0.35
15
Performance Analysis

• Bottom-up approach
• Insert a set of basic metrics in each process
• readOps, bytesRead, commTime, bytesSent, ...
• Perform measurements and periodically gather
  results
• Propagate metrics to evaluate hierarchy of
  properties
• Use confidence/severity to rank detected
  bottlenecks
• Next, try looking for more precise location of
  the problem (where-axis search)
• use static call-graph information
• start from locations where metrics are captured
  (e.g. read, write, flush functions)
• Find related functions in the user application
  (callers)
• Finally, explain the behavior to the user

16
Performance Analysis
...
Metrics
17
Content

• Our goals automatic analysis and tuning
• Dynamic automatic performance analysis
• Dynamic automatic tuning
• Objectives
• MATE (Monitoring, Analysis and Tuning
  Environment)
• Tuning techniques and experiments
• Conclusions and future work

18
Objectives

• Improve the execution of a parallel application
• by dynamically adapting it
• Key issues
• Dynamic performance tuning approach
• Automatic improvement of any application without
  recompiling and rerunning it
• MATE Monitoring, Analysis and Tuning
  Environment
• Prototype implementation in C
• for PVM based applications
• Sun Solaris 2.x / SPARC

19
Dynamic Tuning Applications

• Black box tuning of ANY application
• Library usage Tested
• Operating system usage
• Cooperative tuning of prepared application
• Supported by program specification Tested
• Application developed using framework In progress

20
MATE
Machine 1
Machine 2
Tuner
Tuner
Monitor
Monitor
pvmd
pvmd
Machine 3
Analyzer
21
MATE Monitoring

• Monitors control execution of application tasks
  and allow dynamic event collection
• Key services
• Distributed application control
• Instrumentation management
• AddEventTrace(id,func,place,args)
• RemoveEventTrace(id)
• Transmission of requested event records to
  analyzer

22
MATE Monitoring

• Instrumentation management
• Based on DynInst API
• Dynamically loads tracing library
• Inserts snippets into requested points
• A snippet calls a library function
• A function prepares event record and transmits
  it to the Analyzer
• Event record
• What - event type (id, place)
• When - global timestamp
• Where task identifier
• Requested attributes - function call parameters,
  source code line number, etc.

23
MATE Analysis

• Analyzer is responsible for the automatic
  performance analysis on the fly
• Uses a set of predefined tuning techniques
• Each technique is specified as
• measure points what events are needed
• performance model and activating conditions
• solution - tuning actions/points/synchronization
  - what to change, where, when

24
MATE Analysis
Events (from tracing library) via TCP/IP
Tuning technique
Event Collector
Tuning technique
Tuning technique
Tuning request (to tuner) via TCP/IP
Event Processor
Tuning Manager
Analyzer
Instrumentation request (to monitor) via TCP/IP
Instr Manager
Metric Repository
25
MATE Knowledge

• Measure point example

Insert instrumentation into ALL tasks at entry of
function pvm_send() as eventId 1 record
parameter 1 as int parameter 2 as int
ltintrumentation_request taskIdallgt ltfunction
namepvm_sendgt lteventIdgt1lt/eventIdgt
ltplacegtentrylt/placegt ltparam
idx1gtintlt/paramgt ltparam
idx2gtintlt/paramgt lt/functiongtlt/intrumentation
_requestgt
26
MATE Knowledge

• Performance model example

CurrentSize result of pvm_getopt
(PvmFragSize) OptimalSize Average (MsgSize)
Stddev (MsgSize) Condition CurrentSize
OptimalSize gt threshold1 CommunicationCost
xxx Condition Communication cost gt threshold2
ltperformance_modelgt ltvalue nameCurrentSizegt
ltcalcgt lttypegtfunction_resultlt/t
ypegt ltfunction namepvm_getoptgt
ltparamgtPvmFragSizelt/paramgt
lt/functiongt lt/calcgt
lt/valuegt ... lt/performance_modelgt
27
MATE Knowledge

• Solution example

In task with tid524247, execute one time a
function pvm_setopt (PvmFragSize, 16384)
breaking at entry of function pvm_send()
lttuning_request taskId524247gt ltactiongt
ltone_time_callgt ltfunction
namepvm_setoptgt ltparam
idx0gtPvmFragSizelt/paramgt ltparam
idx1gt16384lt/paramgt lt/functiongt
ltsynchronizegt
ltbreakpointgt ltfunction
namepvm_sendgt
ltplacegtentrylt/placegt
lt/functiongt lt/breakpointgt
lt/synchronizegt lt/one_time_callgt
lt/actiongtlt/tuning_requestgt
28
MATE Tuning

• Tuners apply solutions by executing tuning
  actions at specified tuning points
• A tuner module is integrated with monitor process
• Receives a tuning request from analyzer
• Prepares modifications (snippets)
• Applies modifications via DynInst

Tuner/Monitor
recv_req (taskId, TuningReq) Task task
taskList.Find (taskId) snippet
PrepareSnippet (TuningReq) task.thread.insertS
nippet (snippet)
Analyzer
TuningReq () send_req (tuner, taskId,
tuningReq)
29
MATE Tuning

• Tuning request
• Tuner machine
• Task id
• Tuning action
• One time function call
• Function parameter changes
• Function call
• Function replacement
• Variable changes
• Tuning points as pairs object, value
• function name, param name, param value
• Synchronization
• When to perform tuning action

In task with tid524247, call one time a function
pvm_setopt (PvmFragSize, 16384) breaking at
entry of function pvm_send()
30
Tuning techniques

• What can be tuned?
• Library usage
• Mathematical libraries
• Communication libraries
• Memory management functions
• I/O functions

31
Tuning techniques

• Communication library
• Tuning of PVM library usage
• Investigating PVM bottlenecks
• PVM communication bottlenecks
• Communication mode (Direct, indirect)
• Data encoding mode
• Message fragment size

32
Tuning techniques Example application

• Integer Sort Kernel benchmark from NAS
• High communication cost (50)
• Default settings indirect communication mode,
  DataRaw encoding, message fragment size 4KB

33
Other tuning techniques

• TCP/IP
• send/receive buffer size
• sending without delay (Nagles algorithm,
  TCP_NO_DELAY)
• I/O
• read/write operations
• using prefetch when small requests
• using asynchronous read/write instead of
  synchronous
• I/O buffer size
• Memory allocation
• plugging-in specialized strategies (pool
  allocator)

34
Content

• Our goals automatic analysis and tuning
• Dynamic automatic analysis based on ASL
• Dynamic automatic tuning
• Conclusions and future work

35
Conclusions

• Automatic performance analysis
• Dynamic tuning
• Designs
• Experiments

36
Future work

• Automatic analysis
• Discuss and close detailed ASL language
  specification
• Complete property evaluator
• Connect the analyzer with performance measurement
  tool
• Investigate the why-axis analysis(Evaluate the
  causal property chains)

37
Future work

• Automatic tuning
• Tuning mathematical libraries
• Tuning application developed using framework

38
Automatic Performance Analysis and Tuning
Thank you very much
Universitat Autònoma de Barcelona
