CIEG 675 IN CLASS EXERCISE ON HANDLES

1

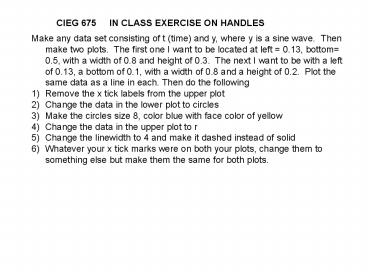

CIEG 675 IN CLASS EXERCISE ON HANDLES

• Make any data set consisting of t (time) and y,
  where y is a sine wave. Then make two plots.
  The first one I want to be located at left
  0.13, bottom 0.5, with a width of 0.8 and height
  of 0.3. The next I want to be with a left of
  0.13, a bottom of 0.1, with a width of 0.8 and a
  height of 0.2. Plot the same data as a line in
  each. Then do the following
• Remove the x tick labels from the upper plot
• Change the data in the lower plot to circles
• Make the circles size 8, color blue with face
  color of yellow
• Change the data in the upper plot to r
• Change the linewidth to 4 and make it dashed
  instead of solid
• Whatever your x tick marks were on both your
  plots, change them to something else but make
  them the same for both plots.

2
t00.0110 ysin(2pit/5) clf hsubplot(211)
set(h,'position',0.13 0.5 0.8 0.3) phplot(t,y)
hold on h2subplot(212) set(h2,'position',0.1
3 0.1 0.8 0.2) ph2plot(t,y) set(h,'xticklabel
',) set(ph2,'linestyle','none') set(ph2,'marke
r','o') set(ph2,'markersize',8) set(ph2,'markeredg
ecolor','b') set(ph2,'markerfacecolor','y') set(ph
,'color','r') set(ph,'linewidth',4) set(ph,'linest
yle','--') set(h,'xtick',0 2.5 5 7.5
10) set(h2,'xtick',0 2.5 5 7.5 10)
