MatrixOps

1

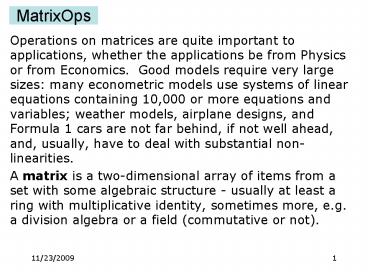

MatrixOps

• Operations on matrices are quite important to
  applications, whether the applications be from
  Physics or from Economics. Good models require
  very large sizes many econometric models use
  systems of linear equations containing 10,000 or
  more equations and variables weather models,
  airplane designs, and Formula 1 cars are not far
  behind, if not well ahead, and, usually, have to
  deal with substantial non-linearities.
• A matrix is a two-dimensional array of items from
  a set with some algebraic structure - usually at
  least a ring with multiplicative identity,
  sometimes more, e.g. a division algebra or a
  field (commutative or not).

2
MatrixOps

• See http//en.wikipedia.org/wiki/Matrix_multiplic
  ation
• Matrix rectangular array of numbers
  aiji1..m, j 1..n.
• Rmxn usually denotes the set of all m by n
  matrices with entries in the real numbers.
• AT denotes the transpose of the matrix A if A
  is an mn matrix, AT is an nm matrix obtained by
  exchanging the rows and columns of A.
• A vector is a one-dimensional array of numbers.
  It can be a row vector or a column vector. The
  transpose of a column vector is a row vector and
  vice-versa.
• The unit vector ei is the vector whose ith
  element is 1 and all others are 0.
• A zero matrix is one whose every entry is zero.

3
MatrixOps

• Square Matrices. m n.
• diagonal matrix aij 0 whenever i ? j.
• identity matrix In the diagonal matrix with 1s
  on the diagonal.
• tridiagonal matrix aij 0 if i - j gt 1.
• upper-triangular matrix aij 0 if i gt j.
• unit-upper-triangular matrix upper-triangular
  with aii 1 for all i.
• lower-triangular matrix aij 0 if i lt j.
• unit-lower-triangular matrix lower-triangular
  matrix with aii 1 for all i.
• permutation matrix has exactly one 1 in each
  row and column.
• symmetric matrix A AT.

4
MatrixOps

• There are three primary operations that we wish
  to support, followed by some others that are
  appropriate only under the assumption that the
  elements of the matrix come from more structured
  algebraic entities.
• Addition M N ???
• Multiplication by a scalar a M ???
• Multiplication of two matrices M N ???
• where a matrix is a two dimensional array of mn
  elements we lay them out in m rows of n columns
  each. It is possible to construct
  multi-dimensional arrays (mnp, ,
  m1m2m3mq), but we will not pursue that study.

5
MatrixOps

• Matrix Addition
• The operation makes sense only for matrices of
  the same dimensions It is applicable to
  matrices whose elements are taken from a group.
  Closure under addition is enough, but not very
  useful.

6
MatrixOps

• 2. Scalar Multiplication
• where is a member of the underlying algebraic
  structure, which now supports multiplication.

7
MatrixOps

• 3. Matrix Multiplication

8
MatrixOps

• We will concentrate on operations where m n p
  (the case of square matrices), since that is, for
  us, the more important case.
• A quick analysis of nn matrix operations
• Sum there are n2 elements, added in pairs. Cost
  Addition is associative and
  commutative as long as it satisfies the same
  properties in the underling algebraic structure.
• Scalar Multiplication there are n2 elements,
  each multiplied by the same scalar. Cost
• Matrix Multiplication each element of the
  product seems to require n multiplications and
  n-1 additions Cost O(n3), for the complete
  multiplication. This is not too bad, since,
  letting m n2, the cost is Can we do
  better? (but no better than )

9
MatrixOps

• Matrix multiplication is associative and
  distributive if the operations are so in the
  underlying algebraic structure. It is not
  commutative, regardless of the commutativity of
  the operations in the underlying algebraic
  structure.
• Two products are of some special importance
• Let xT be a (1 n) row vector, y a (n 1)
  column vector. The inner product of x and y is
  defined as
• xyT is the outer product an n n matrix.
• The euclidean norm

10
MatrixOps

• Matrix Inverse given a matrix A, its inverse, if
  it exists, is a matrix denoted by A-1 and with
  the property that AA-1 A-1A I.
• Matrices need not have inverses they are then
  called non-invertible or singular. If a matrix
  has an inverse, it is called invertible or
  non-singular.
• Property Matrix inverses are unique (Ex. D.2-1).
• Property if A and B are nonsingular matrices,
  (BA)-1 A-1B-1.
• Property inverse commutes with transpose
  (A-1)T (AT)-1.

11
MatrixOps

• Def. Linear Dependence. The vectors x1, x2, ,
  xn are linearly dependent if there exist scalar
  constants c1, c2, , cn, not all 0, such that
  c1x1 c2x2 cnxn 0. If the vectors are
  not linearly dependent, they are linearly
  independent.
• Column Rank. For an mn matrix A, this is the
  size of the largest set of linearly independent
  columns of A.
• Row Rank. For an mn matrix A, this is the size
  of the largest set of linearly independent rows
  of A.
• Property row-rank(A) column-rank(A) rank(A).
• Property 0 rank(A) min(m,n).

12
MatrixOps

• Alternate Def. of Rank A mn rank(A)
  smallest number r such that there exist matrices
  B and C of respective sizes mr and rn with A
  BC.
• Proof.???
• Def. A square (nn) matrix A has full rank if
  rank(A) n. An mn matrix A has full row rank
  if rank(A) m and has full column rank if
  rank(A) n.

13
MatrixOps

• Theorem. A square matrix has full rank iff it is
  nonsingular.
• Theorem. A square matrix A has full rank iff
  there does not exists a non-zero vector x such
  that Ax 0.
• Corollary. A square matrix A is singular iff it
  has a null vector, i.e., if there exists a
  non-zero vector x such that Ax 0.

14
MatrixOps

• Strassens Algorithm. One can count, and observe
  that the naïve algorithm requires 8
  multiplications and 4 additions to multiply a 22
  matrix. As it turn out, multiplications are
  expensive, much more expensive than additions
  any cleverness that reduces the number of
  multiplications without changing the number
  additions too much is to be preferred. Prof.
  Strassen managed to come up with an algorithm
  that requires only 7 multiplications. This
  algorithm allows us to multiply any two matrices
  whose dimensions are compatible (and powers of
  2) in time O(n lg 7), which is substantially
  faster than O(n3). More recent results keep
  bringing the exponent farther down, but with
  mixed possibilities for real applications.

15
MatrixOps

• Strassens Algorithm. 7 multiplications and 18
  additions. The entries can be matrices of
  compatible sizes just be careful of
  non-commutativity.

16
MatrixOps

• The recurrence is ,
  where d is a fixed constant and dn2 represents
  the time for the matrix additions and
  subtractions c 18 (n/2)2, where c is the
  constant relative to one such operation. The
  relevant version of the Master Theorem states
  that T(n) can be bounded asymptotically
  One could also check directly that

  solves the recurrence relation. The lowest
  currently known bound is
• Although matrix multiplication is interesting,
  one also needs to solve large systems of linear
  equations. Is the complexity of their solution
  related to that of matrix multiplication?

17
MatrixOps

• Systems of Linear Equations. Basically, we will
  look at methods for solving matrix-vector
  equations Ax b, where
• If A is nonsingular, then A-1 exists and
  A-1Ax A-1b gt x A-1b.
• Claim if A is nonsingular, the solution is
  unique. Assume not there exist x and x solving.
  Then
• x (A-1A)x A-1(Ax) A-1(b) A-1(Ax)
  (A-1A)x x.

18
MatrixOps

• Rank(A) lt n A is underdetermined typically the
  system has infinitely many solutions (sometimes
  none).
• If the number of equations is larger than the
  number of unknowns, the system is overdetermined
  typically, no solution (sometimes one or more).
• If A is nonsingular, we can compute A-1, but the
  theoretical method (based on a recursive
  combinatorial expression for A-1) is very
  expensive and suffers from numerical
  instabilities (Maple or Mathematica wont help -
  you just cannot guarantee that you can dial
  yourself enough decimal digits). This problem
  was recognized long ago, and reasonable methods
  have been known since what is the cost of those
  methods?

19
MatrixOps

• LUP Decomposition. Given a nonsingular matrix A,
  we look for three other matrices, L, U, and P,
  such that PA LU, and
• L is a unit-lower-triangular matrix (0s in upper
  right half, 1s on diagonal)
• U is an upper-triangular matrix (0s in lower
  left half)
• P is a permutation matrix (a single 1 in each
  row and column).
• If we find such a decomposition, then
• Ax b gt PAx Pb gt LUx Pb
• and we solve a problem with two triangular
  matrices, which is simpler than the original one.

20
MatrixOps

• A first intermediate step is to define y Ux,
  where we still dont know what x is, and solve Ly
  Pb.
• This first problem can be solved in time
  via a method known as forward substitution. Let P
  Pi,pi denote the permutation matrix, where
  Pi,j 0 for j ? pi, and Pi,j 1 for j
  pi. p is the permutation array associated
  with P. Since L is unit-lower-triangular, we are
  now solving the system

21
MatrixOps

• The general solution is given by
  which involves no extra divisions. Now we
  solve Ux y. Since U is upper triangular (not
  unit, though)
• Solving from the bottom (backsubstitution) we
  have the general formula
  which involves n divisions. A pseudocode
  algorithm follows

22
MatrixOps

• LUP-Solve(L, U, p, b)
• n L.rows
• Let x be a new vector of length n
• for i 1 to n
• do
• for i n downto 1
• do
• return x
• The total cost is, clearly, the ith
  iteration of the for loop in lines 2 and 3 takes
  i-1 multiplications and i-1 additions the ith
  iteration of the loop in lines 4 and 5 takes n-i
  additions, n-i-1 multiplications and one
  division.

23
MatrixOps

• Computing an LU decomposition. We assume that no
  entries in the matrix that will be used for
  division are 0. This cannot be expected in
  general - and small entries are almost as bad -
  but will provide us a starting point for an
  algorithm. If n 1, the matrix A aij is
  already decomposed. Otherwise, decompose A into
  four parts

v is a size (n-1) column vector, w is a size
(n-1) row vector and A is an (n-1)(n-1) matrix.
We can now factor A as follows
24
MatrixOps

• You need only multiply the right hand side to
  see. The (n-1)(n-1) matrix A - vwT/a11 is
  called the Schur complement of A with respect to
  a11.
• Claim if A is nonsingular, its Schur complement
  is also nonsingular.
• Pf. Suppose it is singular. It is an (n-1)(n-1)
  matrix, and thus its row rank must be strictly
  less than n-1. The last n-1 rows of the second
  factor of A have a first column of all zeros, and
  thus must have rank strictly less than n-1. This
  implies that the row rank of the second factor is
  less than n gt factor is singular gt A singular.

25
MatrixOps

• The nonsingularity of the Schur complement allows
  us recursively to apply the same ideas to it IT
  has an LU decomposition, say LU A - vwT/a11
  LU. Replacing in the matrix equation
• If a11 0, then everything breaks. If the upper
  left entry in the Schur complement vanishes at
  any point, everything breaks. If a11 (or any
  of the upper left entries in the Schur
  complement) is very small we could have numerical
  instability

26
MatrixOps

• Claim if A is symmetric positive-definite then
  the upper left-hand entry in the Schur complement
  is never 0.
• Pf. Later.
• We can now present an algorithm to compute the LU
  decomposition of any matrix for which the method
  just presented will work note that L has 0s in
  the upper right and 1s on the diagonal, U has
  zeros in the bottom right. It is thus sufficient
  to keep the information in a SINGLE nn matrix,
  where U will be stored in the diagonal and the
  upper right, and the non-0, non-1 elements of L
  are stored in the bottom left.

27
MatrixOps

• LU-Decomposition(A)
• n rowsA
• for k 1 to n
• do ukk akk
• for i k1 to n
• do lik aik/ukk // lik holds
  vi
• uki aki // uki holds
  wiT
• for i k1 to n
• do for j k1 to n
• do aij aij - likuki
• return L and U

28
MatrixOps

• Since line 9 is triply nested, the algorithm runs
  in time All other lines are no more than doubly
  nested, contributing no more than O(n2).
• We still have a fairly serious problem we made a
  number of unwarranted assumptions about the size
  of certain crucial entries. We now need to
  remove those assumptions (to the extent
  possible), show that we can still construct L and
  U, and, at least as important, that we will not
  make the asymptotic complexity any worse.

29
MatrixOps

• Example for LU Decomposition

30
MatrixOps

• Computing an LUP Decomposition. We are now ready
  to remove the restrictions. We change the problem
  to one of finding three matrices, L and U as
  before, and a permutation matrix P such that PA
  LU. Before we decompose A into the four
  submatrices, we examine the first column. At
  least one element of the first column must be
  non-zero, otherwise A would be singular. If there
  is more than one non-zero element, find the index
  of the one with largest absolute value. If this
  element resides in row k (ak1), swap it with the
  element in row 1 (ak1 lt--gt a11). This action can
  be accomplished by pre-multiplying A by a
  permutation matrix Q, obtained from the identity
  matrix by exchanging the first and kth columns.
• Note that Q Q-1.

31
MatrixOps

• QA is a non-singular matrix with the element of
  largest absolute value among those in the first
  column appearing in position (1, 1). Using the
  notation from the original A
• We know from the earlier discussion that the
  Schur complement A - vwT/ak1 is also
  non-singular. By the induction hypothesis, we
  can obtain an LUP decomposition of A - vwT/ak1
  with (n-1)(n-1) matrices P, L and U P (A
  -vwT/ak1) LU. P is an (n-1)(n-1)
  permutation matrix. Define

32
MatrixOps

• We have
• We need to translate this into a pseudo-code
  algorithm.

33
MatrixOps

• The algorithm will re-use A rather than allocate
  space for both L and U. As we observed earlier,
  L and U can be both stored in a single nn
  matrix, and, it turns out, we do not need to keep
  a copy of A. Furthermore, we do not need to keep
  a full copy of P all we need is an array p1n,
  where pi j means that the ith row of P
  contains a 1 in the jth column. When the
  procedure terminates we will have

34
MatrixOps

• LUP-Decomposition(A)
• n lt-- rows(A)
• for i lt-- 1 to n
• do pi lt-- i
• for k lt-- 1 to n
• do p lt-- 0
• for i lt-- k to n
• do if aik gt p
• then p lt-- aik
• k lt-- i
• if p 0
• then error singular matrix
• exchange pk lt--gt pk
• for i lt-- 1 to n
• do exchange aki lt--gt aki
• for i lt-- k1 to n
• do aik lt-- aik/akk
• for j lt-- k1 to n
• do aij lt-- aij - aikakj

35
MatrixOps

• Example for LUP
• Decomposition

36
MatrixOps

• The analysis is similar to that in the previous
  case we observe that the deepest nesting level
  of loops is 3, which means a time complexity of
  O(n3) - in fact . Because of the reuse
  of A, the extra space needed is 0.
• The algorithms introduced for the solutions of
  systems of linear equations exhibit the time
  complexity of naïve matrix multiplication. We
  can use these algorithms for the computation of a
  matrix inverse if we can compute an LUP
  decomposition of A, PA LU, we can solve an
  equation of the form Ax b in time If
  we replace b by the column matrices ei, i 1, ,
  n, solving all n equations Ax ei will take time

37
MatrixOps

• Since the LUP decomposition itself can be
  computed in time , the computation of A-1
  will take time
• The question that remains is since Strassens
  algorithm (and later developments) show that one
  can multiply two nn matrices strictly faster
  than O(n3), does this speedup have implications
  (theoretical at least) for matrix inversion? Or
  can we invert matrices just as fast as we can
  multiply them, or does something else stop us?
  We now develop the (unsurprising) answer.

38
MatrixOps

• Theorem 28.7. (Multiplication is no harder than
  inversion.) If we can invert an nn matrix in
  time I(n), where and I(n)
  satisfies the regularity condition I(3n)
  O(I(n)), then we can multiply two nn matrices in
  time O(I(n)).
• Claim I(n) satisfies the condition above
  whenever for any constants c gt 0
  and d 0.
• Pf. of Claim
• Meaning any reasonable time complexity formula
  for inversion will satisfy the condition.

39
MatrixOps

• Proof. (of theorem) Let A and B be given nn
  matrices.
• Consider the matrix with inverse
• We can compute AB by just taking the upper right
  nn submatrix of D-1. D can be constructed from A
  and B in time, and D-1 can be computed from D in
  O(I(3n)) O(I(n)) time - where the regularity
  condition comes in. The uniqueness of inverses
  guarantees the contents of the upper right-hand
  block. Thus M(n) O(I(n)), as claimed.

40
MatrixOps

• Theorem 28.8. (Inversion is no harder than
  multiplication.) Assume the time to multiply two
  nn matrices is and that M(n)
  satisfies the regularity conditions M(nk)
  O(M(n)) for 0 k n, and M(n/2) cM(n) for
  some constant c lt 1/2. Then the computation of
  the inverse for any nonsingular nn matrix can be
  carried out in time O(M(n)).
• Proof. First, assume n is a power of 2. This can
  be easily shown not to be a restriction the
  first regularity condition implies that the
  asymptotics can get worse only by a constant.
• Temporary assumption A is symmetric and positive
  definite. This will be removed later.

41
MatrixOps

• Partition A into four (n/2)(n/2)
  matrices where B and D are also
  symmetric positive definite.
• Let S D - CB-1CT be the Schur complement of A
  with respect to B (more details later). One can
  check that
• by an explicit multiplication. The existence of
  B-1 and S-1 follows from the fact that A (and
  hence B and S - to be proven) is symmetric
  positive definite. Using the relationships among
  multiplication, inversion and transposition
  B-1CT (CB-1)T and B-1CTS-1 (S-1CB-1)T.

42
MatrixOps

• We can now use the Schur complement and the form
  of A-1 just given to specify a recursive
  algorithm involving four multiplications of
  (n/2)(n/2) matrices
• CB-1, (CB-1)CT,
• S-1(CB-1), (CB-1)T(S-1CB-1).
• We need to invert B and S (two (n/2)(n/2)
  matrices) we need to multiply four (n/2)(n/2)
  matrices - which we can multiply with an nn
  algorithm - plus an O(n2) cost to extract
  submatrices from A and perform a fixed number of
  additions and subtractions on these matrices

43
MatrixOps

• where the fact that allows
  passing from the first to the second line. Case
  3 of the Master Theorem states (in this case)
  that if for
  some constant and if 2f(n/2) cf(n) for
  some constant c lt 1 and all large n, then
• The final result follows from the observation
  that any solution of the inequality with I(n) is
  bounded above by a solution of the equation
  resulting by replacing with . The
  satisfaction of the asymptotic bound on f(n) is
  trivial, since f(n) kM(n). The regularity
  condition follows from the theorem hypotheses,
  which are reasonable doubling the (linear)
  size of the matrix should more than double the
  time for multiplication - you must deal with four
  times the number of items.

44
MatrixOps

• We must still remove the condition that A be
  symmetric positive definite. Since A is
  invertible, ATA is symmetric (which does not need
  invertibility) and positive definite (Thm. 28.6,
  which needs invertibility). Next, we observe that
  A-1 (ATA)-1AT. Inverting A can then by
  accomplished by a) computing ATA b) inverting
  ATA via the procedure just outlined
  post-multiplying the result by AT. Each of the
  three steps takes O(M(n)) time any nonsingular
  matrix with real entries can be inverted in
  O(M(n)) time.

45
MatrixOps

• Symmetric Positive Definite Matrices. There are
  a few results we need to establish to complete
  the details of the proof of Thm. 28.8.
• Lemma 28.9. Any positive definite matrix is
  non-singular.
• Proof. Suppose A is singular. Then there exists a
  non-zero vector x such that Ax 0. Hence xTAx
  0 and A cannot be positive definite.
• Def. the kth leading submatrix of A is the
  matrix Ak, consisting of the intersection of the
  first k rows and k columns of A.

46
MatrixOps

• Lemma 28.10. If A is a symmetric positive
  definite matrix, then every leading submatrix Ak
  of A is symmetric positive definite.
• Proof. That Ak is symmetric is obvious. Assume it
  is not positive definite. Then there exists a
  k-vector xk ? 0, such that xkTAkxk 0. Extend xk
  to an n-vector by padding with 0s x (xT, 0)T.
  A can be decomposed into four matrices of
  appropriate sizes (and symmetries) so that
• contradicting the hypothesis that A is positive
  definite.

47
MatrixOps

• Generalization of the Schur Complement. Given a
  symmetric positive definite matrix A, with Ak the
  leading kk submatrix
• we define the Schur complement of A with respect
  to Ak as S C - BAk-1BT.
• Since Ak is symmetric and positive definite, Ak-1
  exists, and thus S is well-defined. We now show
  that S is itself symmetric and positive definite,
  thus allowing us to complete the proof of Theorem
  28.8.

48
MatrixOps

• Lemma 28.11 (Schur complement lemma). Let A be
  symmetric positive definite, Ak a leading kk
  submatrix of A. Then the Schur complement of A
  w.r.t. Ak is symmetric positive definite.
• Proof. A symmetric gt C symmetric. One can easily
  show that BAk-1BT is symmetric, and that S is
  symmetric. We still need to show that S is
  positive definite. Let x be any nonzero vector,
  xT (yT, zT), where the components are size
  compatible with the decomposition of A. Recall
  also that A-1 exists. Then

49
MatrixOps

• We can verify the equalities by simple
  multiplication. Note that the term in the last
  set of parentheses is the Schur complement.
  Since xTAx gt 0 for any nonzero x, pick any
  nonzero z, and then choose y - Ak-1BTz, which
  makes the first term of the last line on the
  previous slide vanish, leaving xTAx zT(C -
  BAk-1BT)z zTSz gt 0, which immediately implies
  that the Schur complement is positive definite.
• We are now finished with the details of the proof
  of Theorem 28.8, and we have proven that matrix
  invertibility is asymptotically equivalent to
  matrix multiplication, at least under some
  reasonable assumptions.

50
MatrixOps

• A useful result is
• Corollary 28.12. LU decomposition of a symmetric
  positive definite matrix never causes a division
  by 0.
• Proof. Let A be the matrix. We will prove that
  every pivot is strictly positive. The element
  a11 is the first pivot, and a11 e1TAe1 gt 0. The
  first step of the LU decomposition gives us the
  Schur complement of A w.r.t a11. Since the Schur
  complement is positive definite symmetric, and
  its upper left hand element is the new pivot, it
  must be positive. An induction gives that all
  pivots are positive.

51
MatrixOps

• Least-Squares Approximation. We are given a set
  of m points (say, in the plane) (x1, y1), (x2,
  y2), ,(xm, ym), where the yis are subject to
  measurement error. We want to construct a
  function F(x) such that for i 1, 2, , m,
  where the errors are small.
• There are several mathematical theorems (all
  variants of the same most general one) that allow
  us to conclude the existence (under suitable
  assumptions) of a countable family of basis
  functions such that every reasonable function
  can be arbitrarily approximated by a finite
  weighted sum of such basis functions
• We choose fi(x) xi-1, so F(x) c1 c2x
  cnxn-1.

52
MatrixOps

• The approximation gets better as n gets larger,
  but we also know that our data are noisy we have
  to play the accuracy of the approximation against
  the cost of computation in the context of
  guaranteed partial ignorance.
• We have m data points, and so we can deal with at
  most m unknown quantities the m coefficients of
  an approximation that uses m basis functions. We
  could be using a different set of basis functions
  (e.g., trigonometric polynomials, wavelets), but
  we choose standard polynomials. If n m, we
  have the best fit the curve can be made to go
  exactly through each of the data points, and all
  the errors can be made to disappear.

53
MatrixOps

• The problem is that the errors are there
  regardless of our wishing them away fitting the
  curve exactly to the (noisy) data will not give
  us the best approximation to reality. The usual
  approach involves using a coarser approximation
  (fewer basis functions, and thus less computation
  both in the determination of F and the
  computation of interpolated values) while trying
  to minimize some reasonable function of the
  total error.
• Consider the matrix

54
MatrixOps

• When we include the (as yet unknown) coefficients
  of the basis function we have the linear (usually
  overerdetermined) system (m gt n)
  with the
  errors given
• The error is given by the m-vector formula
• To minimize the errors, we choose to minimize the
  norm of the error vector as a
  function of the cjs. A necessary condition for
  an extremum is the simultaneous vanishing of all
  derivatives.

55
MatrixOps

• We have
• and differentiating
• The equations on the last line are equivalent to
  the matrix equation (Ac - y)TA 0, equivalent to
  AT(Ac - y) 0, which implies ATAc ATy. ATA is
  clearly symmetric. If A has full column rank, a
  previous result implies that ATA is positive
  definite, and thus has an inverse (ATA)-1. We
  can solve c (ATA)-1 ATy. (ATA)-1 AT is called
  the pseudoinverse of A since A is nonsquare it
  cannot have a true inverse.

56
MatrixOps

• An Example five points and F(x) c1 c2x
  c3x2.

57
MatrixOps

• With the pseudoinverse A

58
MatrixOps

• The approximating function and the errors.
