Title: ECSE6963, BMED 6961 Cell


1

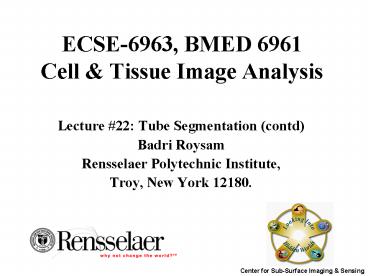

ECSE-6963, BMED 6961Cell Tissue Image Analysis
  • Lecture 22 Tube Segmentation (contd)
  • Badri Roysam
  • Rensselaer Polytechnic Institute,
  • Troy, New York 12180.

Center for Sub-Surface Imaging Sensing
2
Recap
  • Two basic methods
  • Extract the foreground and skeletonize by erosion
  • Trace along the structures
  • Vectorization/Tracing Algorithms
  • Based on the idea that tubes exhibit parallel
    edges.
  • Steps
  • Survey the image via a sparse grid analysis
    find seeds
  • Estimate image contrast from seeds
  • Trace the structures starting from seeds
  • Stopping criterion, and response threshold T
  • Special cases to worry about branch points and
    parallel tubes
  • Tradeoff accuracy, computation, and detection
    performance using the grid density and threshold

3
Recall Edge Detection with Pre-Smoothing
Approximate Gaussian Smoothing Filter
Differentiator
Single operation that combines both
(scale factor)
4
Smoothing Along an Edge
Compute the average response along an edge
Note If image brightness goes up from left to
right, the result response is positive ? The
sign of the response can be put to good use
5
Core Tracing Algorithm
M/2
  • Applied template with end starting at pk
  • Searched range d in 0..M/2
  • /- 1 direction

d
d in interval 0..M/2 M max expected blood
vessel width 26
M/2
d
6
A Delicate Issue
  • The exact location of a branch point is hard to
    find
  • Why?
  • Because the parallel edges model is violated
    near that location, so the traces can be rather
    inaccurate
  • This issue is important if the locations of the
    landmarks is important as in image registration

7
Simple-minded idea
Too Far!
short
o.k.
  • Look for other traces in a small neighborhood of
    a stopped trace and join with a straight line
  • Not very reliable!

8
More Examples
9
What can we do About It?
  • Define an exclusion zone around the detected
    intersection
  • parallel edges model cannot be trusted here
  • Fit local lines to the trace points outside the
    exclusion zone, and find their least squares
    intersection
  • This is at least repeatable

10
Example
11
More Examples
Better!
Better!
Before
After
12
Repeatability Examples
Naïve Detection
Detection with exclusion zone idea
13
How to Trace in 3-D
  • Assume that we have a volumetric image
  • Things to do
  • Need to extend our models to 3-D
  • Need to be mindful of computational needs
  • Make approximations when safe

14
3-D Tracing Model
Top
Left
  • Generalized cylinder model.
  • Over a short distance, dendrites and axons in the
    image field are well approximated by generalized
    cylinders with slowly changing diameter.
  • To fit an ellipse, we ideally need six sets of
    points
  • Approximate method
  • Use four sets of templates, right, left, top, and
    bottom.

Right
Bottom
15
Lots of Templates
  • In 3-D space, we need to worry about two angles ?
    and ? instead of one
  • We have four borders to track (top, bottom, left,
    right)
  • If each angle is discretized to N values, we are
    left with 4?N2 templates

16
The Length of Templates
  • The number of discrete angles imposes a lower
    bound on template length
  • At equality, templates along adjacent directions
    differ by at most one pixel at their far end
  • On the other hand, the maximum length of
    templates is determined by the straightness of
    the dendrites
  • Question How do we do this automatically?

17
3-D Templates Summary
  • A template is defined in terms of
  • Its type right, left, top, bottom
  • Its length K
  • Its direction
  • Its shift direction (next page)

18
Efficient Seed Point Selection
  • Basic Idea
  • Project the 3D image onto the xy-plane to reduce
    computation.
  • For structures that are bright against a dark
    background, use a maximum intensity projection
  • Use minimum intensity projection, or invert image
    if structures are dark against bright background

19
Iterative Tracing Procedure - I
Start
Get Seed Point
Yes
Refine and
No
Stop ?
Estimate and
Set
20
Illustration
21
Estimation of Boundary Points
Given a point and a direction , the
corresponding boundary points are estimated using
a shift and correlate procedure, exactly as in
the 2-D case.
Similar strategy for the top, bottom, and left
templates
22
Minimizing the Effort
  • Search in the neighborhood of the current
    direction.
  • Works well if the diameter of the generalized
    cylinder is changing slowly, and tortuosity is
    low

Limit search to here
Dont bother here
23
Adaptively Setting Template Length
  • Observe
  • Template too short ? too little averaging
  • Template too long ? cant keep up with curving
    vessels
  • Tradeoff
  • Maximize length-normalized template response!!

24
Re-centering Step
  • Better estimates for and are computed
    according to

The same core idea as in the 2-D case. The
equations look more complicated in 3-D.
25
Setting the Step Size Automatically
  • The adaptively estimated template lengths provide
    important hints
  • Update equations

26
Better Stopping Criteria
  • With images of fluorescently labeled structures,
    there is opportunity for localized fading
  • A conservative stopping criterion will simply
    result in too much fragmentation
  • More forgiving criteria are needed
  • Basic Idea Learn from games
  • M strikes and youre out

27
Stopping Criteria
  • Rationale.
  • Tolerate responses that are characteristic of the
    background as long as such responses are isolated
    events.
  • Conditions.
  • Criteria.
  • Stop the current tracing cycle if the number of
    consecutive violations is larger than a threshold
    ? (say 3).

C contrast F - B
At least one gray level of contrast
Response at 90o
28
Segmentation of Soma
  • Basic Idea
  • First find the soma in the 2-D projections
    follow up with a 3-D segmentation over a limited
    region
  • Grayscale closing, adaptive thresholding, and
    connected component analysis.
  • Grayscale closing.
  • Erosion.
  • Dilation.
  • Thresholding.

29
Sample 3D image
XY
YZ
Neuron TR053Z1A Step Size Zoom
1.0 Dimensions 512x480x244x8
XZ
30
XY
YZ
Projections of the resulting traces (Takes about
a minute on a Intel Pentium III)
XZ
31
Dealing with Noise
32
Dealing with Noise
  • The correlation kernels (templates) are based on
    assuming a Gaussian step edge, and little noise
  • With noisy images, algorithm can break down
  • Things we can do
  • Design custom templates to suit the edge and
    noise models
  • Use the more forgiving stopping criteria
  • Design the stopping criteria using the noise
    models explicitly

33
Example
This type of noise can be handled using a median
instead of a mean
F Foreground intensity B Background
intensity C Contrast F B N Noisy pixels
intensity value
34
Breakdown Point
  • Robustness measure
  • Breakdown point is defined as the minimum
    fraction of outliers that can cause an estimate
    to diverge arbitrarily far from the true
    estimate.
  • Basic Idea
  • Use median template response instead

35
Median vs. Average Response
Average Median
36
Tracing using median response
Tracing using average response
37
3-D Tumor Vessel Example
Day 4
Day 1
Day 2
Day 3
38
Average Response
Median Response
39
Beyond
40
Neuronal Spines
Collaboration Joshua Trachtenberg (UCLA)
time
41
Summary
  • We have studied the basics of tube tracing
    algorithms
  • This is an active field with new ideas being
    published every year
  • Plenty of room for more ideas!
  • Next
  • Time-lapse microscopy
  • Analyzing changes in microscope images
  • Putting it all together!

42
Instructor Contact Information
  • Badri Roysam
  • Professor of Electrical, Computer, Systems
    Engineering
  • Office JEC 7010
  • Rensselaer Polytechnic Institute
  • 110, 8th Street, Troy, New York 12180
  • Phone (518) 276-8067
  • Fax (518) 276-8715
  • Email roysam_at_ecse.rpi.edu
  • Website http//www.ecse.rpi.edu/roysam
  • Course website http//www.ecse.rpi.edu/roysam/CT
    IA
  • Secretary Laraine Michaelides, JEC 7012, (518)
    276 8525, michal_at_.rpi.edu
  • Grader Nicolas Roussell (roussn_at_rpi.edu, Office
    JEC 6308, 518-276-8207)
