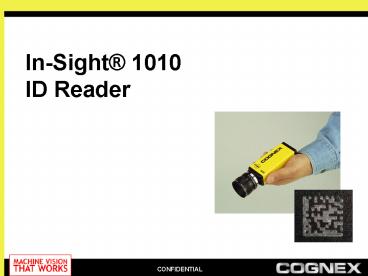

InSight 1010 ID Reader

1
In-Sight 1010 ID Reader
2
In-Sight 1010An ID Reader that simply reads
Not every 2D code is printed on a black and
white label.
Easy to read or Difficult
to read (but no problem for In-Sight 1010)

• Powered by proven Cognex vision
• Designed to handle the toughest real world
  codes

3
Product Overview

• In-Sight 1010 Key Features
• Stand alone system Integrated camera, ID
  software, and processor
• Reads poorly formed and degraded codes
• Online verification metrics
• Reads multiple codes in single view
• Onboard logic and data processing capability
• High speed reading capability
• Ethernet - ready

4
Currently supported codes

• 1D (bar) codes
• Code 3 of 9
• Code 128
• Interleaved 2 of 5
• UPC/EAN
• POSTNET
• PLANET
• Pharmacode

• 2D (matrix) codes
• Data Matrix ECC 200
• QR code
• PDF 417

AIM/ANSI verification standards can be used to
confirm readability of all codes
5
Product Performance

• Reads poorly formed and degraded codes
• Direct marked codes on wide range of part surface
  types including metal, plastic, ceramic and glass
• Codes that are dot-peened, laser-etched and
  ink-jet printed
• Codes that are degraded or damaged due to wear
  and tear
• Rotated, skewed or resized codes

6
Finding the Code

• Sometimes the most difficult task for any reader
  is locating the code

• Clocking Pattern
• Two adjacent sides with
• alternating light and dark
• cells provide matrix density

Encoded Data Error Correction

• Finder Pattern
• Two solid adjacent sides locate the pattern
• Damaged or skewed Finder Patterns make locating
  the code tough
• If you cant find it, you cant read it!

7
Finding the Code

• Training the code
• In-Sight 1010 can train on the Finder Pattern for
  robust location
• Once trained, the code can be found even when the
  Finder Pattern is damaged or skewed.. Where
  other readers fail!

• This 14x14 matrix is severely skewed
• It is very difficult to find without training

• Here, the Finder Pattern is obstructed
• The 1010 solves this problem by training, which
  allows this code to be found and read

8
Image Processing
In the real world

• Lighting and optics are not ideal
• Cant always get a high contrast image
• Lens quality degrades due to environment

• The quality of the mark varies greatly
• Rough surfaces
• Curved parts
• Variations in surface colors
• Degradation
• Old marking equipment

The In-Sight 1010 offers image processing to help
read poor quality codes
9
Image Processing Examples
10
Performance

• Speed
• Decodes up to 30 reads per second
• On-Line Verification
• In-Sight 1010 provides code quality verification
  for downstream work stations and customers
• Ensures that internal and external customers are
  receiving high quality, readable codes
• Verifies to AIM International standards approved
  by ANSI
• Provides a mechanism for feedback
• Enables monitoring of marking equipment
  performance
• Useful during lighting setup reader optimization

11
Verification

• On-Line Verification helps identify marking
  problems
• Image Processing can be used to improve
  readability

12
Ease of Use

• Stand Alone System
• Integrated camera, ID software, and processor
• Eliminates installation and wiring of external
  control unit
• System is easily configured with PC or In-Sight
  3000 unit

Power and I/O breakout
Ethernet communication
13
Ease of Use
Access to In-Sights Spreadsheet Interface

• Flexibility to customize jobs beyond the
  pre-programmed reader interfaces
• Ability to customize Graphical User Interface
• Read as many codes as desired in one field of
  view
• Logic and data processing capability allows for
  decisions to be made in the sensor!
• Customize communication
• With third party devices
• Other In-Sights

14
Connectivity

• Remote configuration
• Configure and control In-Sight 1010
• Monitor ID code reading
• Diagnose In-Sight 1010 system
• From anywhere on the network at Ethernet speed!
• Shared Information
• Share real time information with other In-Sight
  units or third party devices
• Seamlessly feed job selection information
  upstream
• Archive images in real time

15
Connectivity
16
Demonstrated Success
Automotive Dot-peened on torque converter
Pharmaceutical Ink jet on glass vials
Aerospace Dot-peened on turbine blade
Electronic Packaging Ink jet on brushed metal
component
Medical IndustryInk jet on paper label on vial
Etched on Glass
17
Summary

• In-Sight 1010 Advantages
• Small in size. Big in performance
• Compact integrated camera, ID software, and
  processor
• Reads the toughest codes
• Provides verification metrics
• High-speed reading up to 30 reads/sec.
• Easy to use
• Out of the box solution
• Flexible Easy Customization
• Ethernet-ready
