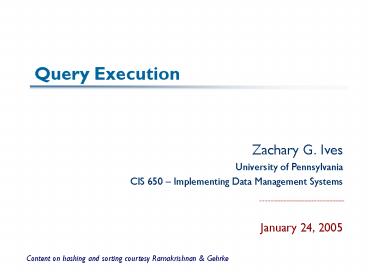

Query Execution

• Zachary G. Ives
• University of Pennsylvania
• CIS 650 Implementing Data Management Systems
• January 24, 2005

Content on hashing and sorting courtesy
Ramakrishnan Gehrke
2
Todays Trivia Question
3
Query Execution

• What are the goals?
• Logical vs. physical plans what are the
  differences?
• Some considerations in building execution
  engines
• Efficiency minimize copying, comparisons
• Scheduling make standard code-paths fast
• Data layout how to optimize cache behavior,
  buffer management, distributed execution, etc.

4
Execution System Architectures

• Central vs. distributed vs. parallel vs. mediator
• Data partitioning vertical vs. horizontal
• Monet model binary relations
• Distributed data placement
• One operation at a time INGRES
• Pipelined
• Iterator-driven
• Dataflow-driven
• Hybrid approaches

5
Execution Strategy Issues

• Granularity parallelism
• Pipelining vs. blocking
• Materialization

JoinPressRel.Symbol EastCoast.CoSymbol
JoinPressRel.Symbol Clients.Symbol
ProjectCoSymbol
SelectClient Atkins
Scan PressRel
ScanEastCoast
Scan Clients
6
Iterator-Based Query Execution

• Execution begins at root
• open, next, close
• Propagate calls to children
• May call multiple child nexts
• Synchronous pipelining
• Minimize copies
• Efficient scheduling resource usage
• Can you think of alternatives and their benefits?

JoinPressRel.Symbol EastCoast.CoSymbol
JoinPressRel.Symbol Clients.Symbol
ProjectCoSymbol
SelectClient Atkins
Scan PressRel
Scan Clients
ScanEastCoast
7
The Simplest Method

• Iteration over tables
• Sequential scan
• Nested loops join
• Whats the cost? What tricks might we use to
  speed it up?
• Optimizations
• Double-buffering
• Overlap I/O and computation
• Prefetch a page into a shadow block while CPU
  processes different block
• Requires second buffer to prefetch into
• Switch to that when the CPU is finished with the
  alternate buffer
• Alternate the direction of reads in file scan

8
Speeding Operations over Data

• Three general data organization techniques
• Indexing
• Associative lookup synopses
• Sorting
• Hashing

9
Indices

• GiST and B Trees
• Alternatives for storage
• ltkey, recordgt ltkey, ridgt ltkey, ridsgt
• Clustered vs. unclustered
• Bitmapped index bit position for each value in
  the domain
• Requires a domain with discrete values (not
  necessarily ordinal)
• Booleans enumerations range-bounded integers
• Low-update data
• Efficient for AND, OR only expressions between
  different predicates

10
Usefulness of Indices

• Where are these structures most useful?
• Sargable predicates
• Covering indices
• In many cases, only help with part of the story
• Filter part of the answer set, but we still need
  further computation
• e.g., AND or OR of two predicates
• General rule of thumb
• Unclustered index only useful if selectivity is lt
  10-20

11
Sorting External Binary Sort

• Divide and conquer sort into subfiles and merge
• Each pass we read write every page
• If N pages in the file, we need dlog2(N)e 1
• passes to sort the data, yielding a cost of
• 2Ndlog2(N)e 1

Input file
3,4
6,2
9,4
8,7
5,6
3,1
2
PASS 0
1-page runs
1,3
2
3,4
5,6
2,6
4,9
7,8
PASS 1
4,7
1,3
2,3
2-page runs
8,9
5,6
2
4,6
PASS 2
2,3
4,4
1,2
4-page runs
6,7
3,5
6
8,9
PASS 3
1,2
2,3
3,4
8-page runs
4,5
6,6
7,8
9
12
General External Merge Sort

• How can we utilize more than 3 buffer pages?

• To sort a file with N pages using B buffer pages
• Pass 0 use B buffer pages. Produce dN / Be
  sorted runs of B pages each
• Pass 2, , etc. merge B-1 runs

INPUT 1
. . .
. . .
INPUT 2
. . .
OUTPUT
INPUT B-1
Disk
Disk
B Main memory buffers
13
Cost of External Merge Sort

• Number of passes 1dlogB-1 dN / Bee
• Cost 2N ( of passes)
• With 5 buffer pages, to sort 108 page file
• Pass 0 d108/5e 22 sorted runs of 5 pages each
  (last run is only 3 pages)
• Pass 1 d22/4e 6 sorted runs of 20 pages each
  (final run only uses 8 pages)
• Pass 2 d6/4e 2 sorted runs, 80 pages and 28
  pages
• Pass 3 Sorted file of 108 pages

14
Applicability of Sort Techniques

• Join
• Intersection
• Aggregation
• Duplicate removal as an instance of aggregation
• XML nesting as an instance of aggregation

15
Merge Join

• Requires data sorted by join attributes
• Merge and join sorted files, reading sequentially
  a block at a time
• Maintain two file pointers
• While tuple at R lt tuple at S, advance R (and
  vice versa)
• While tuples match, output all possible pairings
• Maintain a last in sequence pointer
• Preserves sorted order of outer relation
• Cost b(R) b(S) plus sort costs, if
  necessaryIn practice, approximately linear, 3
  (b(R) b(S))

16
Hashing

• Several types of hashing
• Static hashing
• Extensible hashing
• Consistent hashing (used in P2P well see later)

17
Static Hashing

• Fixed number of buckets (and pages) overflow
  when necessary
• h(k) mod N bucket to which data entry with key
  k belongs
• Downside long overflow chains

0
h(key) mod N
2
key
h
N-1
Primary bucket pages
Overflow pages
18
Extendible Hashing

• If a bucket becomes full split in half
• Use directory of pointers to buckets, double the
  directory, splitting just the bucket that
  overflowed
• Directory much smaller than file, so doubling it
  is much cheaper
• Only one page of data entries is split
• Trick lies in how hash function is adjusted!

19
Example
2
LOCAL DEPTH
Bucket A
16
4
12
32
GLOBAL DEPTH
2
2
Bucket B
13
00
1
21
5

• Directory is array of size 4.
• For rs bucket, take last global depth bits
  of h(r) we denote r by h(r)
• If h(r) 5 binary 101, it is in bucket
  pointed to by 01

01
2
10
Bucket C
10
11
2
DIRECTORY
Bucket D
15
7
19
DATA PAGES

• Insert If bucket is full, split it (allocate
  new page, re-distribute)

• If necessary, double directory. (As we will
  see, splitting a
• bucket does not always require doubling we
  can tell by
• comparing global depth with local depth for
  the split bucket.)

20
Insert h(r)20 (Causes Doubling)
2
LOCAL DEPTH
3
LOCAL DEPTH
Bucket A
16
32
GLOBAL DEPTH
32
16
Bucket A
GLOBAL DEPTH
2
2
2
3
Bucket B
1
5
21
13
00
1
5
21
13
000
Bucket B
01
001
2
10
2
010
Bucket C
10
11
10
Bucket C
011
100
2
2
DIRECTORY
101
Bucket D
15
7
19
15
19
7
Bucket D
110
111
2
3
Bucket A2
20
4
12
DIRECTORY
20
12
Bucket A2
4
(split image'
of Bucket A)
(split image'
of Bucket A)
21
Points to Note

• 20 binary 10100
• Last 2 bits (00) ? r belongs in A or A2
• Last 3 bits needed to tell which
• Global depth of directory Max of bits needed
  to tell which bucket an entry belongs to
• Local depth of a bucket of bits used to
  determine if an entry belongs to this bucket
• When does bucket split cause directory doubling?
• Before insert, local depth of bucket global
  depth
• Insert causes local depth to become gt global
  depth directory is doubled by copying it over
  and fixing pointer to split image page
• (Use of least significant bits enables efficient
  doubling via copying of directory!)

22
Comments on Extendible Hashing

• If directory fits in memory, equality search
  answered with one disk access else two
• Directory grows in spurts, and, if the
  distribution of hash values is skewed, directory
  can grow large
• Multiple entries with same hash value cause
  problems!
• Delete
• If removal of data entry makes bucket empty, can
  be merged with split image
• If each directory element points to same bucket
  as its split image, can halve directory

23
Relevance of Hashing Techniques

• Hash indices use extensible hashing
• Uses of static hashing
• Aggregation
• Intersection
• Joins

24
Hash Join

• Read entire inner relation into hash table (join
  attributes as key)
• For each tuple from outer, look up in hash table
  join
• Not fully pipelined

25
Running out of Memory

• Prevention First partition the data by value
  into memory-sized groups
• Partition both relations in the same way, write
  to files
• Recursively join the partitions
• Resolution Similar, but do when hash tables
  full
• Split hash table into files along bucket
  boundaries
• Partition remaining data in same way
• Recursively join partitions with diff. hash fn!
• Hybrid hash join flush lazily a few buckets at
  a time
• Cost lt 3 (b(R) b(S))

26
The Duality of Hash and Sort

• Different means of partitioning and merging data
  when comparisons are necessary
• Break on physical rule (mem size) in sorting
• Merge on logical step, the merge
• Break on logical rule (hash val) in hashing
• Combine using physical step (concat)
• When larger-than-memory sorting is necessary,
  multiple operators use the same key, we can make
  all operators work on the same in-memory portion
  of data at the same time
• Can we do this with hashing? Hash teams (Graefe)

27
(No Transcript)
28
What If I Want to Distribute Query Processing?

• Where do I put the data in the first place (or do
  I have a choice)?
• How do we get data from point A -gt point B?
• What about delays?
• What about binding patterns?
• Looks kind of like an index join with a sargable
  predicate

29
Pipelined Hash Join Useful for Joining Web Sources

• Two hash tables
• As a tuple comes in, add to the appropriate side
  join with opposite table
• Fully pipelined, adaptive to source data rates
• Can handle overflow as with hash join
• Needs more memory

30
The Semi-Join/Dependent Join

• Take attributes from left and feed to the right
  source as input/filter
• Important in data integration
• Simple method
• for each tuple from left send to right
  source get data back, join
• More complex
• Hash cache of attributes mappings
• Dont send attribute already seen
• Bloom joins (use bit-vectors to reduce traffic)

JoinA.x B.y
A
B
x
31
Wrap-Up

• Query execution is all about engineering for
  efficiency
• O(1) and O(lg n) algorithms wherever possible
• Avoid looking at or copying data wherever
  possible
• Note that larger-than-memory is of paramount
  importance
• Should that be so in todays world?
• As weve seen it so far, its all about
  pipelining things through as fast as possible
• But may also need to consider other axes
• Adaptivity/flexibility may sometimes need this
• Information flow to the optimizer, the runtime
  system

32
Upcoming Readings

• For Wednesday
• Read Chaudhuri survey as an overview
• Read and review Selinger et al. paper
• For Monday
• Read EXODUS and Starburst papers
• Write one review contrasting the two on the major
  issues
