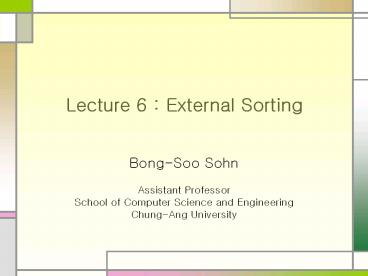

Lecture 6 : External Sorting

1
Lecture 6 External Sorting

• Bong-Soo Sohn
• Assistant Professor
• School of Computer Science and Engineering
• Chung-Ang University

2
External Sorting

• Sorting algorithm that can handle massive amounts
  of data (using external memory)
• Required when data does not fit into main memory
• out-of-core algorithm vs in-core algorithm

3
Motivation

• Sometimes the data to sort are too large to fit
  in memory (Why not virtual memory?)
• Use external memory (disk)
• Disk performance
• seek time (major factor)
• rotational latency
• Transfer
• Primary rule for disk access
• Minimize the number of disk accesses
• Assume external(secondary) memory is divided into
  equal sized blocks (ex. 1KB, 4KB, )
• Block unit where data is stored and retrived

4
External Merge Sort Idea

• EX) sorting 900MB of data using only 100MB of
  RAM
• Read 100 MB of the data in main memory and sort
  by some conventional method (usually quicksort).
• Write the sorted data to disk.
• Repeat steps 1 and 2 until all of the data is
  sorted in 100 MB chunks, which now need to be
  merged into one single output file.
• Read the first 10 MB of each sorted chunk (call
  them input buffers) in main memory (90 MB total)
  and allocate the remaining 10 MB for output
  buffer.
• Perform a 9-way merging and store the result in
  the output buffer. If the output buffer is full,
  write it to the final sorted file. If any of the
  9 input buffers gets empty, fill it with the next
  10 MB of its associated 100 MB sorted chunk or
  otherwise mark it as exhausted if there is no
  more data in the sorted chunk and do not use it
  for merging.

5
2-way merge sort

• of passes 5

W1
6
5-way merge sort
T1

• we can reduce of passes
