Title: 24 volts

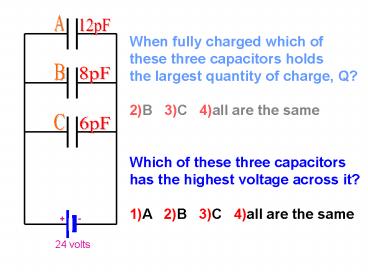

1
A
12pF
When fully charged which of these three
capacitors holds the largest quantity of charge,
Q? 2)B 3)C 4)all are the same
B
8pF
C
6pF
Which of these three capacitors has the highest
voltage across it? 1)A 2)B 3)C 4)all are
the same
-
24 volts
2
A
B
C
12pF
8pF
6pF
-
24 volts
When fully charged which of these three
capacitors holds the largest quantity of
charge, Q? 1)A 2)B
3)C 4)all are the same
Which of these three capacitors has the highest
voltage across it? 1)A 2)B
3)C 4)all are the same
3
A
12pF
Three identical capacitors CACBCC12pF are
connected in parallel. What is the total
effective capacitance of the combination?
B
12pF
C
12pF
1)36pF 2)12pF 3)4pF 4)3pF 5)1/4 pF
6)1/12 pF
4
A
B
C
12pF
12pF
12pF
Three identical capacitors CACBCC12pF are
connected in series. What is the total effective
capacitance of the combination?
1)36pF 2)12pF 3)4pF 4)3pF 5)1/4 pF
6)1/12 pF
5
The three capacitors are identical with
CACBCCC. What is the equivalent
capacitance,Ceq, of the combination shown below?

1) Ceq (3/2)C 2) Ceq (2/3)C 3) Ceq 3C 4)
Ceq (1/3)C
o
C
Ceq
C
C
o
6
The three capacitors are identical with
CACBCCC. When connected across a battery and
fully charged, which capacitor will hold the most
charge?
1) QAgt QBgt QC 2) QAgt QB QC 3) QBgt QA QC 4)
QB QCgt QC 5) QA QB QC
o
CB
CC
CA
o
7
The three capacitors are identical with
CACBCCC. What is the equivalent
capacitance,Ceq, of the combination shown below?

1) Ceq (3/2)C 2) Ceq (2/3)C 3) Ceq 3C 4)
Ceq (1/3)C
o
C
Ceq
C
C
o
8
The three capacitors are identical with
CACBCCC. When connected across a battery and
fully charged, which capacitor will hold the most
charge?
1) QAgt QBgt QC 2) QAgt QB QC 3) QBgt QA QC 4)
QB QCgt QC 5) QA QB QC
o
CA
Ceq
CC
CB
o
9
  • Inserting a dielectric material between two
    charged parallel conducting plates, originally
    separated by air and now disconnected from the
    battery, will
  • (1) Increase the charge on the plates.
  • (2) Increase the capacitance of the plates.
  • (3) Increase the voltage across the plates.
  • (4) None of the above.

10
Answers to the preceding slides
1)A 4)all are the same 4)all are the
same 3)C 1)36pF 3)4pF 1) Ceq (3/2)C 2) QAgt QB
QC 2) Ceq (2/3)C 2) QAgt QB QC (2) Increase
the capacitance of the plates.
