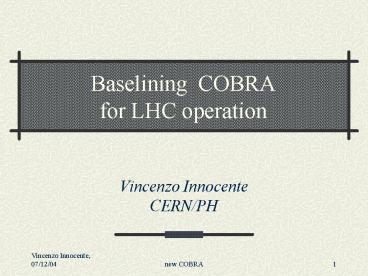

Baselining COBRA for LHC operation

1
Baselining COBRAfor LHC operation

• Vincenzo Innocente
• CERN/PH

2
Cobra status - History

• Cobra started as a place to experiment and
  prototype framework mechanisms
• Was expected to evolve and be re-engineered using
  the most adequate solution
• Instead
• Evolution of COBRA in last few years dominated by
  operation requirements
• Objy gt Pool
• Support of production and data-challenges
• backward compatibility
• New features just piled-up (often as work-around)
• No opportunity to fix very basic mistakes
• Impossible to abstract commonalities and avoid
  unnecessary duplications
• SimEvent,RecEvent,RawEvent,G3EventProxy
• SimApplication,RecApplication
• (P)RecDet, RecUnit and their variations

3
Cobra Long-Standing Issues

• Multiple event structures
• Too many ways to achieve (almost) the same result
• Multiple interfaces to the event
• Integration with configurations, conditions and
  data management
• Migration to foundation classes from IGUANA/SEAL
• Build system
• Core services (Geometry) are neither managed nor
  integrated into the framework
• Chaotic I/O due to forced evolution of persistency

4
Architecture Review

• Have been at the top of CMS to-do list for a long
  time
• Café, LCG/AA Blueprint, Naples-workshop
• Short-term urgency always deferred it
• Combination of
• Fresh look at CMS framework (LPC)
• New requirement from analysis (APROM)
• Window of opportunity before Physics TDR

5
Review Process

• Charged by PRS CCS to
• Make a list of important features needed based on
  RunII, part of a draft document
• Examine their presence in the CMS framework
• ?Extract a list of missing features
• (posted doc)
• Produce a list of desirable changes to CMS
  framework
• Present a possible work plan to implement the
  above
• (design doc by years end - i.e. next week)

6
Responses from Collaboration

• Following two weeks of work at FNAL
• Initial presentation to a special JTB mtg (VI,
  Nov)
• Main types of comments
• Not enough documentation in presentation
• Posted the first note and have an advanced draft
  of design note
• Questions of the why-now, why-do-we need-this
  varieties.
• Addressed in Paris presentation
• Specific technical questions for clarification
• Collected and will address each one

7
QA

• Detailed design doc will help address these and
  many additional ones
• Will try to address few recurring ones
• Reco-on-Demand
• Will be kept (in parallel with explicit
  pre-configured scheduling)
• Detector Oriented Reco
• No problem - in principle
• Issues with details of implementation
• Consistent configuration
• Storage of results
• Provenance tracking
• Core framework mechanisms
• Singletons and such will be replaced by SEAL
  services
• Access from ROOT and its implications
• Requirements from PRS and APROM are clear

8
Required Usage Patterns

• Bare Root. The stored form of objects has to be
  sufficiently simple to allow their use without
  class libraries or additional code.
• ROOT with a small set of libraries. This can use
  classes of type "basic elements". We want the
  classes of this second level to be defined by
  CMS. Analysis of data in this format shall not
  require access to external databases.
• ORCA-Lite. Within ROOT or Framework with a
  medium set of libraries. This can use classes of
  type "1" and also of type "2". Analysis of data
  in this format shall not require access to
  external databases.
• Full ORCA. Within the framework, using the full
  reconstruction program. This includes not only
  the software libraries but also includes full
  connectivity to any external resources.

9
What Does Use of Root Look Like?

• To figure out what the branch structure of the
  data should look like, we discussed what we want
  to use at the Root prompt (in case "1").
• Our example assumes a branch "ele" carrying
  electrons from one algorithm, and a branch "trk"
  carrying tracks from one algorithm.
• Our example is to plot the pt of the track
  associated with each electron in the electron
  collection
• t-gtDraw("trk.ptele.tk.id")
• Raw data is stored in a ROOT tree as well, but is
  not required to be transparent to Bare ROOT.

10
What will change

• One Event class (edmStore)
• Containing a flat list of event-data-products
• One super-type of event-data-product
  (edmProduct)
• Directly accessible from the event (ev.get() )
• Replace SimEvent substructs, RawData,
  Reconstructor
• Fully specializable by users
• Most common type (vectorltTgt, vectorltTgt) provided
  by edm
• Will replace RecCollection and its friends
• One super-type of event-data-producers
• Can produce multiple products
• Invoked by the scheduler or (in ROD) as a result
  of a ev.get()
• Replace EvSource, part of (P)RecDet, RecUnit
• Extend RecRef to all Products
• Simplified implementation
• Builders will use SealPlugins and factories

11
What will change (continue)

• There will be One type of Application
• Fully configured loading proper edmproducers
• Persistency will use Pool (more than now)
• COBRA persistency layer closer to native pool
• Stream objects in Root trees
• Try to modify pool to populate a tree not a
  grass-field
• Avoid updates (winter mode colder than in Minsk)
• Global Job data (metadata) will be streamed
• Either in the same file (different root-tree)
• Or in a SQLight file using Pool-RAL
• To be studies together with DM
• Data publishing (AttachRun) will be full
  responsibility of DM layer

12
What will change (configuration)

• Configuration will be read from an external
  source in form of ParamterSets
• No built in default
• ParameterSet will be identified uniquelly and
  globally
• Producers shall be configured by the Builder
  (seal Plugin) using a ParameterSet
• Producer are managed by the framework
• Sub-Algorithms (today ConfigAlgo) will be
  constructed and owned by the parent Producer (or
  sub-algo) using a ParameterSet derived by its own

• No specific super class for Sub-algo
• No global/shared ConfigAlgo
