Database Infrastructure

1

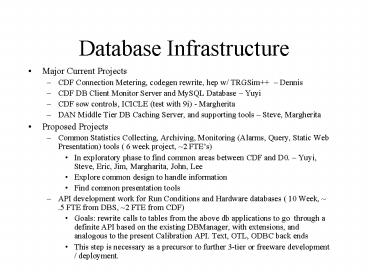

Database Infrastructure

• Major Current Projects
• CDF Connection Metering, codegen rewrite, hep w/
  TRGSim Dennis
• CDF DB Client Monitor Server and MySQL Database
  Yuyi
• CDF sow controls, ICICLE (test with 9i) -
  Margherita
• DAN Middle Tier DB Caching Server, and supporting
  tools Steve, Margherita
• Proposed Projects
• Common Statistics Collecting, Archiving,
  Monitoring (Alarms, Query, Static Web
  Presentation) tools ( 6 week project, 2 FTEs)
• In exploratory phase to find common areas between
  CDF and D0. Yuyi, Steve, Eric, Jim, Margharita,
  John, Lee
• Explore common design to handle information
• Find common presentation tools
• API development work for Run Conditions and
  Hardware databases ( 10 Week, .5 FTE from DBS,
  2 FTE from CDF)
• Goals rewrite calls to tables from the above db
  applications to go through a definite API based
  on the existing DBManager, with extensions, and
  analogous to the present Calibration API. Text,
  OTL, ODBC back ends
• This step is necessary as a precursor to further
  3-tier or freeware development / deployment.

2
Database Infrastructure

• Monitoring (Yuyi)
• The logging server design is done, server is
  working, based on Jims original design in
  document.
• Deliverables for server are complete, pending
  approval by CDF
• Web reporting layer is still being worked on.
• Dedicated server machine (fcdfcaf054) for running
  production monitor provided by CDF. Work
  completed on the machine to make it useable.
• Installed db monitor server and mysql db on this
  machine.
• We cannot move everything away from whcdf03
  until cdf has cut new release of client code,
  with new server address.
• CDF client (Dennis)
• Tested TRGSim from various CDF releases from
  4.8.0int2 through 4.9.1pms in an attempt to 'vet'
  DBManager/DBObjects connection code that has been
  ready for 4 months into a production release.
• Issues for cdf, version upgrades offline software
  are delayed, trigsim, Eric is helping as DBS
  advocate.

3
Freeware Database Infrastructure (1)

• General Dennis, Yuyi, Svetlana
• Testing scripts and procedures to map and
  automate ORACLE to MySQL, MySQL to ORACLE, and
  MySQL to MySQL transfers.
• Some testing of MySQL operation and performance
• Minos
• Still not completely sure of requirements.
• Want remote site to be operational even when
  network down.
• Need to have back up strategy.
• Prefer some kind of freeware solution.
• Plan to distribute database to university
  collaborators.
• No big hurry, run in 2 years, but would like to
  establish solution much sooner. Will talk with
  them and understand needs. Dennis has been the
  contact so far.

4
Database and Freeware DB Infrastructure

• January 28, 2002
• Lee Lueking CEPA/DBS

5
Freeware Database Infrastructure (2)

• CDF (Alan Sill)
• Goals Export at least some of the CDF database
  to remote institutions in a manner that will
  allow them to operate more or less independently
  from the CDF central servers if desired.
• People This was originally a bootleg project on
  the part of Richard Hughes and David Waters from
  the collaboration. Recently Svetlana Lebedeva
  has been working within Fermilab to understand
  and duplicate their efforts.
• Note this has been a high priority on the part of
  the collaboration for some time, at least in
  reviews, but support from the CD and from other
  members of the collaboration has not always been
  coherent or successful. Note also that this
  work does not have to compete in principle with
  a 3-tiered or multi-tiered architecture, as their
  goals are different.
• Status Richard and others within the
  collaboration have been able to make access
  successfully to the calibration portion of the
  database through modifications to the existing
  API. This is a clear lesson to us, I think, in
  the value of having a coherent API.
