Title: Project Report 3D Lung Model


1

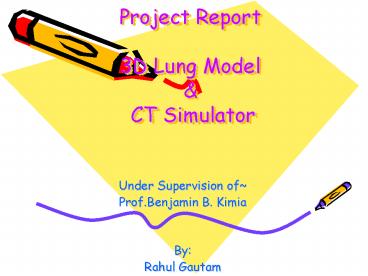

Project Report3D Lung Model CT Simulator
  • Under Supervision of
  • Prof.Benjamin B. Kimia
  • By
  • Rahul Gautam

2
How this began
  • The NIH Proposal 2003
  • Model-based Tomographic Reconstruction of
    Vessel Networks

3
Aims of the Proposal
  • Develop algorithms for the direct tomographic
    reconstruction of pulmonary vessel networks based
    on a 3-d representation of vessels and junctions
  • Demonstrate the accuracy of the reconstructed
    network for
  • x-ray CT using manual segmentation as
    ground truth.

4
Preparing the way
  • A search for good 3D Lung model...
  • Options?
  • ....Many
  • Chose
  • One of the best available

5
Our Choice
  • A three-dimensional model of the human airway
    tree
  • By Prof. Hiroko Kitaoka, Ryuji
    Takaki, and Béla Suki

6
The Reason
  • This algorithm generates geometric data of a
    three-dimensional human airway tree whose
    morphometric characteristics are in good
    agreement with those reported in the literature

7
The basic Principle
  • generation of the dimensions and directionality
    of two daughter branches is governed by the
    properties of the parent branch and the region
    the parent supplies
  • The terminal branches of the tree are
    homogeneously arranged within the organ

8
The Rules
  • The algorithm is composed of nine basic rules and
    four complementary rules.

9
Rules
  • Branching is dichotomous.
  • The parent branch and its two daughter branches
    lie in the same plane, called the branching
    plane.
  • The volumetric flow rate through the parent
    branch is conserved after branching that is, the
    sum of the flows in the daughter branches is
    equal to the flow in the parent branch.

10
RulesContinued
  • The region supplied by a parent branch is
    divided into two daughter regions by a plane
    called the "space-dividing plane." The
    space-dividing plane is perpendicular to the
    branching plane and extends out to the border of
    the parent region
  • The flow-dividing ratio is set to be equal to
    the volume-dividing ratio, defined as the ratio
    of the volume of the smaller daughter region to
    that of its parent.

11
Rules few more
  • The length of each daughter branch is assigned a
    value that is three times its diameter
  • If branching continues in a given direction, the
    daughter branch becomes the new parent branch,
    and the associated branching plane is set
    perpendicular to the branching plane of the old
    parent

12
Just a few more
  • The branching process in a given direction stops
    whenever the flow rate becomes less than a
    specified threshold or the branch extends beyond
    its own region.
  • THATS IT

13
So the first step
  • Applied the algorithm to generate 3D Lung data

14
The Result
15
OopsA Problem
  • Rough edges , abrupt at branching points.
  • Unrealistic if used to model a lung

16
The Solution
  • Generate a Volumetric model,

17
  • apply Gaussian Smoothing to it,
  • Use Marching cubes to extract surface..

18
The Outcome
19
Breaking News
  • Brown Eyes now has 3D Lung Model Generator

20
Mission 3D Lung Model
  • Accomplished

21
The Next Step
  • ...Mission CT
  • To obtain a CT Simulator
  • that performs CT scan on virtual 3D models and
    generate projection data

22
CT????
23
CT Computed Tomography
24
CT is
  • the general process of transmitting X-rays and
    creating cross-sectional or tomographic images
    from projections of the object at multiple angles
    and using a computer for image reconstruction

25
Projection measurement
26
Exponential attenuation of X-rays
Ni
No
m
Ni input intensity of X-ray No output intensity
of X-ray m linear X-ray attenuation
?x
Ni
No
??
??
??
x
Attenuatedmore
X-rays
27
Ray-Sum of X-ray Attenuation
Ni
No
?k
?x
Ray-sum
Line integral
28
Projection Sinogram
SinogramAll projections
ProjectionAll ray-sums in a direction
?
y
P(??t)
t
p
?
x
f(x,y)
t
X-rays
Sinogram
29
Scanning modes
30
First Generation
One detector Translation-rotation Parallel-beam
31
Second Generation
Multiple detectors Translation-rotation Small
fan-beam
32
Third Generation
Multiple detectors Translation-rotation Large
fan-beam
33
Fourth Generation
Detector ring Source-rotation Large fan-beam
34
Spiral/Helical Scanning
  • Simultaneous
  • Source rotation
  • Table translation
  • Data acquisition

35
Cone-Beam Geometry
36
Back to the Problem
  • ..Mission CT

37
Our Requirements...
  • Cone Beam CT
  • Should scan 3D phantom objects
  • Close to a real CT scanner

38
Here we go again
39
Event
  • .. Birth of CTSim
  • Specifications
  • Resolution .Variable
  • Magnification .Variable
  • Spot size detector. As desired
  • Spot size source..point
  • No beam hardening
  • No Quantum noise

40
The Outcome.
41
The Result
  • Too good to be Real

42
Keeping it Real.
  • Accounting for factors like
  • Photon statistics/quantum noise
  • Spot size
  • Beam Hardening

43
Quantum noise
44
The Outcome
  • Background Noise Comparison

45
Spot SizeSource
46
Outcome
47
Sinograms
48
Finally what we have
  • CTSim has found its new home in Brown eyes

49
(No Transcript)
50
CTSim In action
51
The Road ahead
  • Making CTSim more realistic by including
    effects like beam hardening.

52
Special thanks to these great guys
  • Amir
  • Vishal
  • Ming
  • Ozge

53
Last but not the least
  • Prof. Benjamin B. Kimia for guiding me all the
    way.

54
Easy questions Plz
55
Thank You
