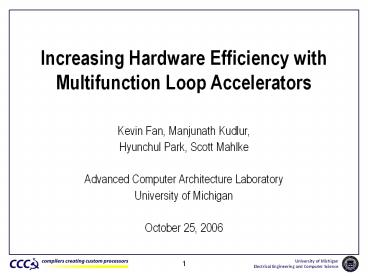

Increasing Hardware Efficiency with Multifunction Loop Accelerators

1
Increasing Hardware Efficiency with Multifunction
Loop Accelerators

• Kevin Fan, Manjunath Kudlur,
• Hyunchul Park, Scott Mahlke
• Advanced Computer Architecture Laboratory
• University of Michigan
• October 25, 2006

2
Introduction

• Emerging applications have high performance,
  cost, energy demands
• H.264, wireless, software radio, signal
  processing
• 10-100 Gops required
• 200 mW power budget
• Applications dominated by tight loops processing
  large amounts of streaming data

CPU
Accelerators
3
Loop Accelerators

• Order-of-magnitude performance and efficiency
  wins
• Viterbi 100x speedup vs. ARM9

4
Prescribed Throughput Accelerators

• Traditional behavioral synthesis
• Directly translate C operatorsinto gates

Operation graph
Datapath
5
Outline

• Loop accelerator schema and design flow
• Cost sensitive scheduling
• Designing multifunction accelerators
• Naïve
• Joint scheduling
• Datapath union
• Synthesis results

6
Loop Accelerator Template

• Hardware realization of modulo scheduled loop

• Parameterized execution resources, storage,
  connectivity

7
Loop Accelerator Design Flow
FU Alloc
FU
FU
.c
RF
C Code, Performance (Throughput)
Abstract Arch
8
Datapath Derived from Schedule

• Schedule to abstract architecture (FUs)
• Determine register and interconnect requirements
  from schedule

r1 Memr2 r3 r1 12
Source Code
9
Cost Sensitive Scheduling

• Traditional scheduling is hardware unaware
• Intelligent scheduling needed to reduce hardware
  cost

FU1
FU2
FU3
0
1
2
FU1
FU2
FU3
1
time
LD1
1
2
2
LD2
LD1
LD2

• 27 cost reduction with same performance MICRO
  05

10
Multifunction Accelerator

• Map multiple loops to single accelerator
• Improve hardware efficiency via reuse
• Opportunities for sharing
• Disjoint stages(loops 2, 3)
• Pipeline slack(loops 4, 5)

Loop 1
Frame Type?
Loop 2
Loop 3
Loop 4
Block 5

Application
11
Design Strategies

• Naïve method Design single function
  accelerators, place side by side
• Misses potential hardware sharing of FUs,
  storage, interconnect

Cost SensitiveModulo Scheduler
FU
FU
Loop 1
FU
FU
FU
FU
Cost SensitiveModulo Scheduler
FU
FU
Loop 2
Multifunction datapath
12
Joint Scheduling
Loop 1
JointCost SensitiveModulo Scheduler
Loop 2

• Loops are independent possible schedules
  exponential in of loops!
• Infeasible for modest problems

13
Multifunction Gate Costs
A
B
C
D
E
F
G
H
I
J

• 43 average savings over sum of accelerators

14
Datapath Union
Cost SensitiveModulo Scheduler
FU
FU
Loop 1
Cost SensitiveModulo Scheduler
Loop 2
FU
FU
15
Datapath Union

• Combine similar components? better hardware
  sharing? lower cost
• Trade off FU and register cost
• Combining dissimilar FUs can enable register cost
  savings
• ILP formulation minimizes FU and register cost

-
M
M
Accel 1
Accel 2

Multi- function accel
16
Multifunction Gate Costs
A
B
C
D
E
F
G
H
I
J

• Smart union within 3 of joint scheduling solution

17
Conclusion

• Multifunction accelerators highly effective in
  exploiting coarse grained hardware sharing
• Joint scheduling achieves 43 average cost
  savings, but is impractical
• Smart union of independent accelerators achieves
  40 average savings
• Compile times of 5 minutes 1 hour

18
Questions?
