Porting NANOS on SDSM

1

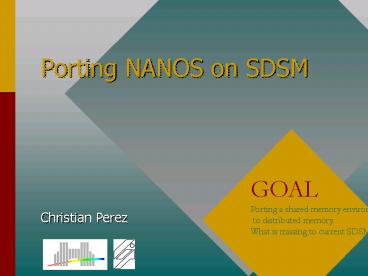

Porting NANOS on SDSM
GOAL Porting a shared memory environment to
distributed memory. What is missing to current
SDSM ?
Christian Perez
2
Who am i ?

• December 1999 PhD at LIP, ENS Lyon, France
• Data parallel languages, distributed memory, load
  balancing, preemptive thread migration
• Winter 1999/2000 TMR at UPC
• OpenMP, Nanos, SDSM
• October 2000 INRIA researcher
• Distributed programs, code coupling

3
Contents

• Motivation
• Related works
• Nanos execution model (NthLib)
• Nanos on top of 2 SDSM (JIAJIA DSM-PM2)
• Missing SDSM functionalities
• Conclusion

4
Motivation

• OpenMP emerging standard
• simplicity (no data distribution)
• Cluster of machines (mono or multiprocessors)
• excellent ratio performance / price
• OpenMP on top of a cluster !

5
OpenMP / Cluster HOW ?

• OpenMP paradigm shared memory
• Cluster paradigm message passing
• Use of software DSM system !
• Hardware DSM system SCI (write 2 ?s)
• specific hardware
• not yet stable

6
Related work

• Several OpenMP/DSM implementations
• OpenMP NOW!, Omni
• But,
• Modification of OpenMP semantics
• One level of parallelism
• Do not exploit high performance networks

7
OpenMP on classical DSM

• Compiler extracts shared data from stack
• Expensive local variable creation
• shared memory allocation
• Modification of OpenMP standard
• default should be private instead of being
  shared variables
• New synchronization primitives
• condition variables semaphores

8
OpenMP on classical DSM

• One level of parallelism (SPMD)

!omp parallel do do i 1,4 x(i) x(i)
x(i1) end do
call schedule(lb, up, ) do i lb, ub x(i)
x(i) x(i1) end do call dsm_barrier()
barrier
9
Omni compilation approach
Taken from pdplab.trc.rwcp.or.jp/pdperf/Omni/wgcc2
k/
10
Our goals

• Support OpenMP standard
• High performance
• Allow exploitation of
• multithreading (SMP)
• high performance networks

11
Nanos OpenMP compiler

• Convert an OpenMP program to a task graph
• Communications via shared memory

!omp parallel do do i 1,4 x(i) x(i)
x(i1) end do
i1,2
i3,4
12
NthLib runtime support

• Nanos compiler generates intermediate codes
• Communications still via shared memory

call nthf_depadd() do nth_p 1, proc
nth nthf_create_1s(,f,) done call
nth_block() subroutine f() x(i) x(i)
x(i1)
13
NthLib details

• Assumes to run on top of kernel threads
• Provides user-level threads (QT)
• Stack management (allocate)
• Stack initialization (argument)
• Explicit context switch

14
Nthlib queues

• Global/Local
• Thread descriptor
• Rich functionalities
• Work descriptor
• High performance

15
Nthlib Memory management
Nano-thread descriptor
Successors
Stack
Guard zone

• Mutal exclusion mmap allocation
• SLOT_SIZE stack alignment

16
Porting Nthlib to SDSM

• Data consistency
• Shared memory management
• Nanos threads
• JIAJIA implementation
• DSM-PM2 implementation
• Summary of DSM requirements

17
Data consistency

• Mutual exclusion for defined data structures
• ? Acquire/Release
• User level shared memory data
• ? Barrier

18
Data consistency

• Mutual exclusion for defined data structures
• ? Acquire/Release
• User level shared memory data
• ? Barrier

barrier
barrier
barrier
19
Shared memory management

• Asynchronous shared memory allocation
• Alignment parameter (gt PAGE_SIZE)
• Global variables/common declaration
• ? Not yet supported

20
Nano-threads

• Run-to-block execution model
• Shared stacks (father/sons relationship)
• Implicit thread migration (scheduler)

21
JIAJIA

• Developed at China by W. Hu, W. Shi Z. Tang
• Public domain DSM
• User level DSM
• DSM lock/unlock, barrier, cond. variables
• MP send/receive, broadcast, reduce
• Solaris, AIX, Irix, Linux, NT (not distributed)

22
JIAJIA Memory Allocation

• No control of memory alignment (x2)
• Synchronous memory allocation primitive
• ? Development of an RPC version
• Based on send/receive primitive
• Add of a user level message handler
• ? Problems
• Global lock
• Interference with JIAJIA blocking function

23
JIAJIA Discussion

• Global barrier for data synchronization
• ? Not multiple levels of parallelism
• No thread aware
• ? No efficient use of SMP nodes

24
DSM/PM2

• Developed at LIP by G. Antoniu (PhD student)
• Public domain
• User level, module of PM2
• Generic and multi-protocol DSM
• DSM lock/unlock
• MP LRPC
• Linux, Solaris, Irix (32 bits)

25
PM2 organization
DSM
MAD1 TCP PVM MPI SCI VIA SBP
MAD2 TCP MPI SCI VIA BIP
MARCEL MONO SMP ACTIVATON
PM2
TBX
NTBX
http//www.pm2.org
26
DSM/PM2 Memory Allocation

• Only static memory allocation
• ? Build dynamic memory allocation primitive
• Centralized memory allocation
• LRPC to Node 0
• ? Integration of alignment parameter
• Summer 2000 dynamic memory allocation ready !

27
DSM/PM2 marcel descriptor
Page boundary
marcel_t
(spMASK)SLOT_SIZE
NthLib requirement a kernel thread ? many
nano-threads
28
DSM/PM2 marcel descriptor
Page boundary
marcel_t
(spMASK)SLOT_SIZE
marcel_t
Page boundary
((spMASK)SLOT_SIZE)
29
DSM/PM2 Discussion

• Using page level sequential consistency
• no need of barrier (Multiple levels of
  parallelism)
• False sharing
• ? Dedicated stack layout

marcel_t
Page boundary
Pad
Page boundary
30
DSM/PM2 Discussion (cont)

• No alternate stack for signal handler
• ? Prefetch page before context switch O(n)
• ? Pad to next page before opening parallelism

Page boundary
Shared data
Pad
Page boundary
31
DSM/PM2 improvement

• Availability of an asynchronous DSM malloc
• Lazy data consistency protocol in evaluation
• eager consistency, multiple writer
• scope consistency
• Support for stack in shared memory (LINUX)

32
DSM/PM2 shared stack support
marcel_t
SEGV stack
(spMASK)SLOT_SIZE
33
DSM/PM2 shared stack support
marcel_t
SEGV stack
(spMASK)SLOT_SIZE
34
DSM/PM2 shared stack support
marcel_t
SEGV stack
SEGV stack
(spMASK)SLOT_SIZE
35
DSM/PM2 shared stack support
marcel_t
SEGV stack
SEGV stack
(spMASK)SLOT_SIZE
36
DSM/PM2 shared stack support
marcel_t
SEGV stack
SEGV stack
(spMASK)SLOT_SIZE
37
DSM/PM2 shared stack support
marcel_t
SEGV stack
(spMASK)SLOT_SIZE
38
DSM requirement

• Support of static global shared variables
• Efficient code
• remove one indirection level
• Enable use of classical compiler
• Support for common
• ?  Sharedization  of already allocated memory
• dsm_to_shared(void p, size_t size)

39
DSM requirement

• Support for multiple level of parallelism
• Partial barrier
• group management
• Dependencies support
• like acquire/release
• but without lock

40
DSM requirement

• Support for multiple level of parallelism
• Partial barrier
• group management
• Dependencies support
• like acquire/release
• but without lock

barrier
barrier
41
DSM requirement

• Support for multiple level of parallelism
• Partial barrier
• group management
• Dependencies support
• like acquire/release
• but without lock

barriers
barrier
42
DSM requirement

• Support for multiple level of parallelism
• Partial barrier
• group management
• Dependencies support
• like acquire/release
• but without lock

start(1)
start(2)
stop(1)
stop(2)
update(1,2)
43
Summary of DSM requirements

• Support of static global shared variables
• ?  Sharedization  of already allocated memory
• Acquire/release primitive
• Partial barrier
• ? group management
• Asynchronous shared memory allocation
• Alignment parameter to memory allocation
• Threads (SMP nodes)
• Optimized stack management

44
Conclusion

• Successfully port Nanos to 2 DSM
• ? JIAJIA DSM-PM2
• DSM requirement to obtain performance
• ? Support MIMD model
• ? Automatic thread migration
• Performance ?

45
Optimized stack management

• Virtual address range memory reservation
• Page creation (mmap) on demand
• Alternate stack for handler
• ? Minimize the number of created pages
• ? Reduce message size on thread migration
• ? Allow potential huge stacks
