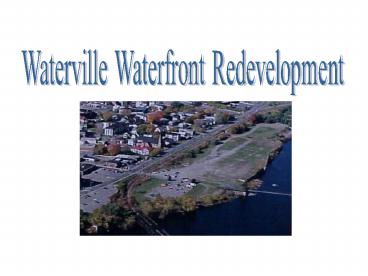

Waterville Waterfront Redevelopment

1
Waterville Waterfront Redevelopment
2
411 Consultants
3
Proposal

• Amphitheater
• Front Street Revitalization
• Road and Parking Throughout Site
• Environmental Concerns
• Permitting
• Playground Options

4
Playground Location
5
Play Mart Leathers and
Associates Cedar Works 100
recycled plastic Unique designs Local
company Easy installation Community
oriented Inexpensive Inexpensive Great customer
service Easy installation
6
Stage Design

• General Footprint
• 30 ft x 15 ft
• 2 Main Support Beams
• Cantilevered for Appearance
• Two Design Options
• Wood
• Steel/Concrete

7
Benefits of Each Design

• WOOD
• Less Expensive
• Easier to Build/ Contract Out
• Traditional Appearance

• STEEL/CONCRETE
• Modern Appearance
• Generally More Weather resistant
• Longer Life Span

8
Wood Stage

• Teak Decking
• 2 x 14 Braced Joists
• 5 x 15 Glulam Beams

9
Steel/Concrete Stage

• W10 x 19 Gr. 50 Steel Beams
• Concrete Decking
• Verco Manufacturing

10
Additional Considerations

• Enlarged Concrete Footing
• Convenient for Audio Equipment
• Fasteners/ Tie-downs
• Secure Lighting, Tarps, Props, etc.
• Permanent Lighting

11
Stage Options
Towers for the lights and speakers with stand
alone acoustic walls
Frame with hanging lights and hanging acoustic
walls
12
Amphitheater
13
Proposed Amphitheater Grades
14
Amphitheater Access Road
15
Access Road Profile
16
Front Street (South of Temple Street)
17
Front Street Cross Sections
18
Front Street (North of Temple)
19
Front Street
20
Example Pictures
21
Two Lanes vs. One Lane

• Current Two Lane Road
• High accident rate
• High speeding
• Unsafe to pedestrians crossing
• Unsaturated flow at all hours

• Proposed One Lane Road
• Lower Accident Rate
• Low speeding incidence
• Safer for increased pedestrian activity
• More congestion at peak hours

22
Current vs. Future Flows

• CURRENT
• 2-Lane 1-Way Road
• Average Flow
• 845 vehicles
• Saturation Flow
• 2353 vehicles

• PROPOSED
• 1-Lane 1-Way Road
• Average Flow
• 1993 vehicles
• Saturation Flow
• 991 vehicles

23
New Road Centerline Elevations Proposed and
Current
24
Retaining Wall
25
New Parking Lots
26
Parking Lot 1
Grading Cross Section
27
Parking Lot 2
Grading Cross Section
28
Grading Profile
1
1
29
Retaining Wall Profile
30
Retaining Wall Options
Cantilever Wall
Mechanically Stabilized Earth Wall
Gravity Wall
31
Required Parking
A
C
D
B
32
Required Parking
Parking Spaces Proposed 570
33
ADA Compliance
Parking Spaces Proposed 570
2 of 570 12 Proposed Spaces 19
34
Traffic Controlling
35
Traffic Controlling
36
Entrance
37
Minor Exit
38
Major Exit
39
Railroad Considerations
40
Environmental Concerns

• Site Assessment
• Based on SW Coles Phase I Brownfield Assessment

41
Environmental Concerns

• Potential Sources and Contaminants
• Petroleum Products
• Metals
• PAH

42
Environmental Concerns

• Results
• Detectable amounts of VOCs, SVOCs, fuels and
  some metals throughout site
• Mostly below acceptable limits
• PAH levels exceed EPA guidelines at former
  Lockwood location
• Groundwater tested within EPA MCLs

43
Environmental Concerns

• Solutions
• Further testing
• Baseline-2 remediation
• Soil capping
• Off-site disposal

44
Permitting

• Requirements
• Site Location of Development (Site Law)
• Natural Resources Protection Act (NRPA)

45
Permitting

• Building
• Small buildings
• Transportation
• Driveways and parking spaces
• Basic Electrical
• Commercial, wiring, appliances, transformers,
  intercom systems
• Site Safety
• Alarms, lighting
• Temporary Permits

46
Questions?
