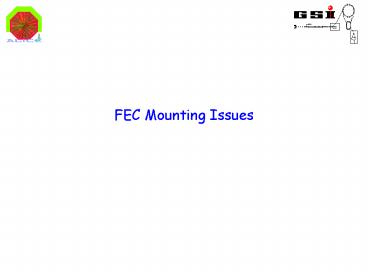

FEC Mounting Issues

1
FEC Mounting Issues
2
FEC Mounting Frame
3
Time Table FEC Frame
4
FEM SSW
ITS torque 500 kg x 1.1 m
5
FEM Layout
6
Deformation in Z (Vertical)
?z lt 0.08 mm
7
Deformation Y (Beam Direction)
?y lt 0.21 mm
8
Deformation X (Horizontal)
?x lt 0.06 mm
9
Worst Case Scenario - 5t ITS
10
FEC Cards
11
FEC Space Problem IROC
12
Noise

• OROC FEC 3.2

13
FEC ground bar
14
Ground cable
thin
bulky
15
w/o extra grounding
16
bulky ground cable
17
thin ground cable
