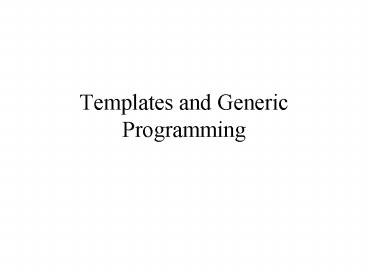

Templates and Generic Programming

1
Templates and Generic Programming
2
Motivating Problem

• Containers or data structures have behavior
  that is independent of the type of object
  contained within them.
• The code that implements a linked list is
  independent of whether integers or strings are
  stored in the list.
• Wed like to be able produce just one
  implementation of a linked list and re-use that
  implementation.

3
Parameterized Types(template classes)

• A parameterized type is a user-defined type whos
  properties are based in part upon parameters
• For a container, the parameter is the type of
  object to be stored inside the container.
• ADA and C are two examples of languages which
  provide support for parameterized types (Java
  does not have this feature).

4
Example of C Template Class

• template lttypename ElementTypegt
• class Vector
• ElementType array
• public
• explicit Vector(int size)
• ElementType operator(unsigned)
• const ElementType operator(unsigned) const
• The formal parameter ElementType can be used
  anywhere in the definition of the class.
• When the class is instantiated, an actual type
  (the argument), for example int or double will be
  bound to the formal parameter.

5
An Alternative

• Use a generic object type (e.g., void from C,
  or Object from Java).
• class List
• void value
• List next
• main()
• List myList
• myList.insert((int) 42)
• x (int) myList.remove()

6
Evaluation of Generic Object Containers

• Advantages
• Exactly one copy of source code and one copy of
  object code no matter how many times the
  container is re-used.
• Can be polymorphic (different types stored
  inside same container).
• Disadvantage
• No static type checking when objects are inserted
  or removed to/from the container

7
Macros, the poor mans Parameterized Type

• A second alternative involves defining a macro.
• An expansion of the macro produces the desired
  code for the container
• define List(X) \
• class ListX \
• X value \
• ListX next \
• List(int) // expand the macro for X int
• main()
• Listint myList // notice how name is formed
• Listint.insert(42)

8
Evaluation of Macros

• Advantage
• Requires no language support, can be used in any
  language
• Disadvantages
• Face it, this is a kludge, the syntax and use is
  ugly and error prone.
• No syntax checking of macros (until theyre
  expanded).
• Programmer must be careful to avoid expanding the
  macro the same way twice (and getting
  multiply-defined symbols).

9
Template Terminology

• Template Definition
• Specifying the template, including its parameter
  list and the definition of the class.
• Template Instantiation
• as a noun, this term refers to the resulting type
  (class) that is created by binding arguments to
  all of the type parameters for the template
• as a verb, this term refers to the process of
  creating the instantiated template.
• Template declaration
• rarely used. declares the name of the template
  and the parameter list but does not specify the
  class.

10
The Template Instantiation Process

• Template instantiation is performed statically
  (i.e., at compile time).
• Every distinct set of arguments results in a
  completely distinct instantiated class
• Each member function is recreated and compiled
  for each new type.
• Some compilers may even (mistakenly?)
  recreate/recompile member functions each time the
  template is instantiated (even if the arguments
  are the same!)

11
Textual Substitution

• It is usually adequate to visualize template
  instantiation as a textual expansion of the
  template with parameters replaced by arguments
  (like a macro).
• A good compiler will minimize the redundant code
  produced.
• Theres more error checking with templates than
  you could ever get with macros, however.

12
The .h file gotcha

• Template definitions need to go inside .h files,
  including definitions of all member functions.
• a .cc file consisting of function member function
  definitions for a template class will produce an
  empty .o file!
• the compiler does not use the template definition
  until a type is actually instantiated.
• your Vector.cc file cannot possibly instantiate
  all the types of Vectors I might ultimately
  decide to use in my application.

13
Example Using Templates

• template lttypename Fst, typename Sndgt
• class Pair
• public
• Fst first
• Snd second
• main(void)
• Pairltint, chargt aPair // binds Fst to int,
  Snd to char
• aPair.first 42
• aPair.second hello world
• Pairltdouble, chargt anotherPair // a different
  type!
• anotherPair aPair // error! different types!

14
Template Functions

• In addition to the parameterized-type feature,
  C also supports functions with type parameters
  (template functions).
• Note technically, the member functions in a
  template class are actually template functions.
• template lttypename ElementTypegt
• VectorltElementTypegtVector(int sz) size(sz)
• array new ElementTypesize

15
Useful Template functions

• template lttypename Tgt
• T min(const T x, const T y)
• if (y lt x) return y
• else return x
• template lttypename Tgt
• void swap(T x, T y)
• T t x
• x y
• y t
• These functions are in ltalgorithmgt
• The functions can be instantiated implicitly
  (more on this later) or explicitly swapltintgt(a,
  b)

16
How to write operator

• Now, we can use template functions to simplify
  the work of operator overloading.
• never (almost never) write an operator member
  function for your class.
• instead always (almost always) write an
  operator function.
• template lttypename Tgt
• T operator(const T x, const T y)
• T t(x)
• t y
• return t

17
Relationals

• Similarly, theres no reason to every write a !
  member function, or a gt member function.
• The standard include file ltfunctionalgt and
  ltalgorithmgt defines
• template lttypename Tgt
• bool operator!(const T x, const T y)
• return ! (x y)
• Greater than is defined using less than.
• You only need to write operatorlt and operator
  for your classes.

18
Templates in Templates

• The C standard allows a template class to have
  template functions inside it. This feature is
  very useful for type conversions
• template lttypename ElementTypegt
• class Vector
• template lttypename OtherElementTypegt
• Vector(const VectorltOtherElementTypegt v)
• copy(v)

19
Syntax for Member Templates

• template lttypename ElementTypegt
• template lttypename OtherElementTypegt
• void VectorltElementTypegtcopy(const
• VectorltOtherElementTypegt other)
• size other.getSize()
• array new ElementTypesize
• for (unsigned k 0 k lt size k 1)
• arrayk // other.arrayk oops!
• otherk
• NOTE you cannot access the private members of
  the other type!

20
Template Functions and Implicit Instantiation

• Recall that instantiation refers to the binding
  of type arguments to the template parameters and
  generating the actual C code.
• With functions (only) in C the binding of
  arguments to parameters can be implicit.
• The basic rule is that the compiler must be able
  to figure out what the arguments would be.
• The technical rule is all implicitly determined
  template parameters must appear in the parameter
  list (function parameters) of the function.

21
Implicit Instantiation Examples

• template ltclass Tgt
• T safe_dereference(T ptr)
• if (ptr 0) throw null_ptr_exception()
• else return ptr
• int p
• safe_derefence(p) 42 // OK, T is bound to int
• This template can be instantiated implicitly
  because the type param (T) can easily be
  determined from the function param (p). Since p
  is int, then T must be int

22
Implicit Instantiation Again

• template lttypename Tgt
• T nil(void)
• return 0
• int p nil() // sorry, no dice.
• int q nilltintgt() // OK like this, tho.
• By contrast, this re-implementation of the nil
  template (as a function, rather than as a class)
  cannot be instantiated implicitly. The return
  type is not sufficient for the compiler to guess
  T.
• The reason for this rule is the same as the
  reasons behind the function overloading rule.
  Do you remember what that reason is?

23
Mixing Implicit and Explicit

• It is possible to mix explicit and implicit
  instantiation with templates.
• template lttypename NewType, typename CurrTypegt
• NewType static_cast(CurrType p)
• return (NewType) p
• int p
• char q static_castltchargt(p)
• The implicit params must be at the end of the
  parameter list (CurrType in this example).
• Normal rules apply for implicit params.

24
Non-Type Template Parameters

• Template parameters can be objects as well as
  types.
• The argument bound to these parameters must be a
  constant expression of the appropriate type.
• Including pointers to functions (or even pointers
  to member functions) can be used.

25
Non-Type Example

• template lttypename T, int sizegt
• class FixedArray
• T arraysize
• public
• T operator(unsigned k)
• if (k lt size) return arrayk
• else throw stdout_of_range()
• FixedArrayltint, 100gt x

26
Default Arguments for Template Parameters

• There is no need for default arguments for
  template functions because we have overloading
• template lttypename X, typename Ygt
• void is_same(const X x, const Y y)
• cout ltlt x and y are different\n
• template lttypename Tgt
• void is_same(const T x, const T y)
• cout ltlt x and y are the same\n

27
Defaults Arguments for Template Classes

• Since there is no overloading of classes,
  template parameters can have default arguments in
  template classes.
• template lttypename T, int size100gt
• class FixedArray
• T arraysize
• public
• T operator(unsigned k)
• if (k lt size) return arrayk
• else throw stdout_of_range()
• FixedArrayltintgt x // 100 elements

28
Generic Programming

• Objectives
• Produce a library of algorithms and data
  structures.
• Generic with respect to element type.
• Generic w.r.t container type.
• Predictable time complexity.
• Competitive performance with customized code.

29
Representing a Data Structure

• The C and the Java library illustrate the two
  leading ways to abstract a container.
• Java uses the traditional abstract container
  approach
• C uses sequences of cursor objects.
• In C we use an auxiliary class object called an
  iterator. Each container type should have a
  companion iterator.

30
Iterators Are Like Pointers

• Iterators are generalizations of pointers.
• The iterator for an array container is actually a
  pointer (not a class).
• The fundamental operations on a pointer are
• dereference
• increment
• compare for equivalence
• decrement
• add an integer (increment multiple)
• calculate difference of two iterators (subtract)

31
Forward, Bidirectional, and Random Access
Iterators

• Not all data structures permit all pointer
  operations to be implemented efficiently.
• Linear time to add multiple in linked list.
• Linear time to decrement in singly-linked list.
• Some algorithms (e.g., binary search) may require
  more capabilities than others (e.g., sort).
• Binary search should be O(logN), but will only
  happen if all pointer ops are implemented with
  constant time.
• When defining a data structure, you are
  responsible for identifying whether your iterator
  is forward, bidirectional or random access.

32
Naming Conventions for Iterators

• To represent a container we use two iterators,
  one that points to the first element and one
  that points to the first position after the
  last element.
• Every container (i.e., data structure) must
  define two functions one called begin() and one
  called end().
• Ever container must define a nested type called
  iterator (note lower case) for the iterator.

33
A Simple Example

• For the simplistic Vector example, all we need is
  to typedef ElementType to iterator.
• typedef ElementType iterator
• typedef const ElementType const_iterator
• iterator begin(void) return array0
• iterator end(void) return
• arraynum_elements
• const_iterator begin(void) const return
• array0
• const iterator end(void) const return
• arraynum_elements

34
Generic Bubble Sort

• template lttypename FIgt
• void bubbleSort(FI begin, FI end)
• if (begin end) return
• for (FI i begin i ! end i)
• FI j i
• FI k j
• k
• while (k ! end)
• if (j gt k) swap(j, k)
• j
• k

35
Success?

• Note that the generic bubble sort can be invoked
  on VectorltTgt for any T.
• Also on T for any T or LinkedListltTgt for any T!
• Provided our optimizing compiler will inline all
  the iterator operations (, , etc)
• Should be just as fast as customized code!
  (almost).

36
Achieving Greater Customization

• Note that our sort function required that the
  ElementType in the container define an
  operatorlt().
• What if there is no natural lt operator?
• What if there could be more than one way to sort
  the elements?
• Wed like to be able to override the default
  comparison and define our own.
• Pointer to function would work, but would be WAY
  SLOW!

37
Function Objects

• We get inlining with templates because
  instantiation is done at compile time.
• If we want performance, we want the comparison
  function to somehow be a template parameter (not
  a function parameter).
• What about an object type that has a known
  method?
• In C the convention is to use a class object
  that defines the method called operator().
• Such an object is called a function object.

38
Custom Sorting

• template lttypename FI, typename LTFuncgt
• void bubbleSort(FI begin, FI end, LTFunc f)
• if (begin end) return
• for (FI i begin i ! end i)
• FI j i
• FI k j
• k
• while (k ! end)
• if (f(j, k)) // j less than k
• swap(j, k)
• j
• k

39
Achieving the Default with Overloading

• template lttypename Tgt
• class default_LT
• public
• bool operator()(const T x, const T y)
• return x lt y
• template lttypename FIgt
• void sort(FI b, FI e)
• sortltFI, Tgt(b, e, default_LTltTgt())
• Uh OH! How do we know what T is?

40
Conventional tags for iterators

• Every iterator type should define the following
  nested types (usually typedefs)
• value_type
• iterator_category
• (there are other types as well, but these two are
  the most useful).
• Given an iterator FI we know that the element
  type is FIvalue_type

41
Using the nested types

• template lttypename FIgt
• void sort(FI b, FI e)
• typename FIvalue_type comp_func
• sort(b, e, comp_func) // implicit templ args
• The typename keyword was added to the language to
  eliminate a source of ambiguity.
• ideally, wed like the compiler to syntax check
  template definitions (before the template is
  actually instantiated).
• FIvalue_type could be a member function, a
  static variable or a nested type. Without
  knowing what FI is, the compiler cannot syntax
  check the template.

42
Whoops! What about Pointers?

• One of the strengths of the C std library is
  that all of the functions can be invoked on
  arrays (the Java library for example does not
  have this property).
• We just broke this! Consider if FI is int and
  the container is an array of ints.
• Fortunately, there is another way to determine
  the element type that will work with both
  pointers (base types) and iterators (classes).

43
Template Specialization

• Template specialization is a very powerful
  feature that approximates overloading
• except for classes rather than for functions.
• Consider the problem of defining a template class
  that would return a representative value of a
  any type.
• T x representativeltTgt()
• For most classes, we can use the no-arg
  constructor to get a representative object.

44
General Case

• template lttypename Tgt
• class Representative
• public
• operator T(void) const
• return T()
• T x representativeltTgt()
• But what about ints? Or pointers?
• We can define specialized templates for these.

45
Specialization for int

• / specialization for int /
• template ltgt
• class Representativeltintgt
• public
• operator int(void) const return 42
• Note the syntax, we are not defining a new
  template, just defining a specialization of an
  existing template.
• Could do the same thing for double, short, etc.
• But what about the infinite number of pointer
  types!

46
Specialization for any pointer

• Specializations can be defined for broad classes
  of template args. For example we can define a
  specialization for RepresentativeltTgt for any
  kind of T
• template lttypename Tgt
• class RepresentativeltTgt
• public
• operator T(void) const
• void p operator new(sizeof(T))
• new (p) T(RepresentativeltTgt())
• return static_castltTgt(p)

47
Iterator Traits

• Back to our iterator problem. Recall that we
  wanted to be able to determine the element type
  for any iterator argument (including base-type
  pointers).
• In addition to requiring all iterators to define
  a nested type for value_type we will provide a
  template class (and some specializations) called
  iterator_traits

48

• struct forward_iterator_tag
• struct bidirectional_iterator_tag
• struct random_access_iterator_tag
• template lttypename Igt
• class iterator_traits
• public
• typedef typename Ivalue_type value_type
• typedef typename Iiterator_category
• iterator_category
• template lttypename Tgt
• class iterator_traitsltTgt
• public
• typedef T value_type
• typedef random_access_iterator_tag
  iterator_category

49
Using Iterator Traits

• Now we can write our default sort
• template lttypename FIgt
• void sort(FI b, FI e)
• typedef typename iterator_traitsltFIgtvalue_type
  T
• default_LTltTgt comp_func
• sort(b, e, comp_func) // implicit templ args
• Will work for any sequence, even if FI is a
  pointer!

50
Using iterator_category

• For some problems a faster solution may exist for
  random access iterators than for forward
  iterators.
• We can use the iterator_category tag to
  automatically select which algorithm to use.
• We write a wrapper function that takes the
  begin/end iterators (as normal).
• We write two (overloaded) functions with the same
  name.
• One takes begin, end and an object of type
  random_access_iterator_tag,
• the other takes begin, end and an object of type
  forward_iterator_tag

51

• template lttypename Iteratorgt
• int length(Iterator b, Iterator e)
• typename iterator_traitsltIteratorgtiterator_cat
  egory
• tag
• real_length(b, e, tag)
• template lttypename Iteratorgt
• int real_length(Iterator b, Iterator e,
• random_access_iterator_tag)
• return e - b
• template lttypename Iteratorgt
• int real_length(Iterator b, Iterator e,
• forward_iterator_tag)
• int c 0
• while (b ! e)
• c 1

52
Fast/Lazy Copy

• The C programming language (and associated
  style) tends to result in making lots of copies
  of objects.
• For container objects
• Wastes memory
• Wastes time
• We only really need to copy the object to
• avoid delete problems
• make the objects appear independent (if one
  changes, the other does not change).

53
Lazy Copy for Containers

• With template containers, it is sufficient to use
  reference counting for garbage determination.
• for container C and element type T, you know that
  CltTgt ! T and thus we cant have cycles.
• The rest of the work simply is to ensure that we
  copy at least as often as we have to.
• e.g., at least when an object is about to be
  changed and the reference count is gt1.

54
Lazy copy for Vectors

• Copy constructor should not actually copy
  elements
• increment reference count and match pointers
• Mutating functions are
• push_back, pop_front, etc.
• operator (non-const)
• front, back (non-const)
• You have your option on
• begin/end

55
Watch the Iterators!

• Iterators and lazy copy dont usually get along
  very well together.
• Vectorltintgt v // initialized somehow
• Vectorltintgtiterator p v.begin()
• Vectorltintgt w v // lazy copy
• p 42 // MUST NOT CHANGE w0!!!
• w0 17
• cout ltlt v0 ltlt endl // must print 42
• cout ltlt p ltlt endl // must print 42
• cout ltlt w0 ltlt endl // must print 17
