Univariate Visualization

1

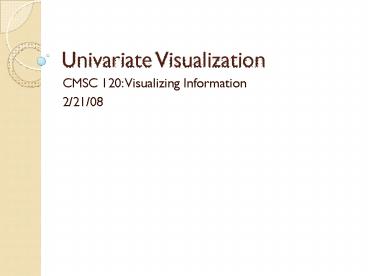

Univariate Visualization

• CMSC 120 Visualizing Information
• 2/21/08

2
Types of Data

• Qualitative pertaining to fundamental or
  distinctive characteristics
• Nominal unordered (e.g., names, types)
• Ordinal ordered (e.g., cold, warm, hot)
• Quantitative pertaining to an amount of anything
• Discrete isolated intervals
• Continuous unbroken, immediate connection

3
Univariate Data

• A single attribute

4
Weather Conditions 2/17/08
5
Univariate Data

• A single attribute
• Temperature quantitative
• Condition qualitative
• Characterize Observations
• Number
• Type
• Similarity

6
The Raw Data A Dot Plot
n 20

• Distance between individual points
• Emphasize clusters, gaps, outliers
• Reveal frequency of each observation

7
Frequency Table

• Groups observations by class
• Quantitative an interval or part of the range of
  the sample
• Qualitative a potential value
• Frequency number of observations that fall into
  a class
• Relative Frequency frequency / sample size

8
Frequency Table
9
Frequency Table
10
Stem and Leaf Plots
15 N 150

• Separate each number into a stem (class) and a
  leaf
• Group numbers with the same stems

11
Pie Charts

• Useful for qualitative data
• Must sum to 100

12
Histograms

• Pictorial representation of a Frequency Table
• Set of boxes whose area represents relative
  frequency of observations per class
• Total Area of all boxes 100
• Shape of histogram determined by box
• Number number of classes
• Width class interval
• Height

13
Histogram
14
Histogram
15
Patterns

• Outliers observations well away from main body
  of data
• Number of peaks (modes) most popular values
• Abrupt Changes

16
Shape
Mode
Mean

• Central Values where data appear to be centered
• Spread how spread out the points are
• Symmetry (Skew)

17
How to Lie Aggregation

• Process of putting data into groups
• Allows user to compare among groups
• Hides differences between groups
• Too little noise of individual data overwhelms
  overall pattern
• Too much important patterns are hidden within
  groups

18
Interval Size 7 Degrees
19
Interval Size 14 Degrees
20
Shape of Shell Aperture
21
Shape of Shell Aperture
22
Shape of Shell Aperture
23
Shape of Shell Aperture
24
Shape of Shell Aperture
25
(No Transcript)
26
The 5 Number Summary

• Continuous, Quantitative Data
• Order data from lowest value to highest
• Minimum lowest value
• Lower Quartile cuts off ¼ of the data
• Median middle value
• Upper Quartile cuts off ¾ of the data
• Maximum highest value

27
25 25 26.1 26.1 27 28 28.9 30.9 35.6 37 39.9 42.1
44.6 44.6 45 45 46 46.4 46.4 46.9 46.9 46.9 48 48.
2 48.9 48.9 48.9 57.9 60.1
Minimum 25
Lower Quartile 30.9
Median 45
Upper Quartile 46.9
Maximum 60.1
28
Box and Whisker Plot
Maximum 60.1
Outlier
Largest Non-Outlier
Upper Quartile 46.9
Median 45
50 of Data
Lower Quartile 30.9
Smallest Non-Outlier
Minimum 25
29
Shell Shape
