Network Isolation Card NIC

1

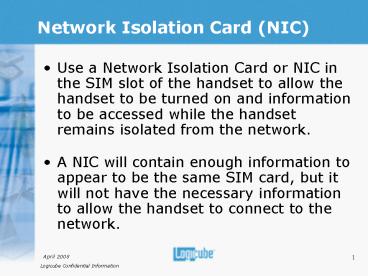

Network Isolation Card (NIC)?

• Use a Network Isolation Card or NIC in the SIM
  slot of the handset to allow the handset to be
  turned on and information to be accessed while
  the handset remains isolated from the network.
• A NIC will contain enough information to appear
  to be the same SIM card, but it will not have the
  necessary information to allow the handset to
  connect to the network.

2
Network Isolation Card (NIC)?

• NICs work with 2G and 3G handsets and are
  reusable.
• They isolate the handset from its normal service
  making it impossible to receive SMS messages,
  calls voicemail reminders etc.
• If the target SIM Card has an unknown PIN lock it
  will not be possible to generate a NIC for use in
  the handset. An alternate form of isolation may
  be necessary.
• Remember, dont turn the handset on without first
  creating and reinserting the NIC.

3
Network Isolation Card (NIC)?

• Enabling NIC Functionality
• Insert the NIC into the SIM card reader.
• In the main menu select System Setup.
• Select Extraction.
• A new option will appear in list Create
  Network Isolation Card after SIM extraction.
• Click the Create Network Isolation Card box.
• Click Apply then OK to return to the main
  menu.
• You will be prompted to decide whether to make
  these the default settings, or apply them for
  this time only.

4
Network Isolation Card (NIC)

• Using the NIC
• When performing a SIM examination, the CellDEK
  Software will ask you if you require a NIC.
• Select Yes if you require a NIC
• You will be prompted for the SIM card
• Insert the SIM card and click OK
• You will then be prompted for the NIC
• Insert a NIC and click OK
• The NIC will then be formatted and the
  necessary data copied
• When this is complete click OK
