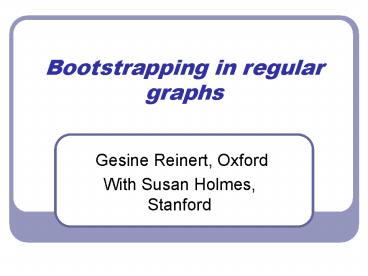

Bootstrapping in regular graphs

1
Bootstrapping in regular graphs

• Gesine Reinert, Oxford
• With Susan Holmes, Stanford

2
What is the bootstrap?

• Efron (1979), Bickel and Freedman (1981), Singh
  (1981)
• Resampling procedure, used to construct
  confidence intervals and calculate standard
  errors for statistics

3
The bootstrap procedure

• Have random sample of size n, say
• Draw M observations out of the n, with
  replacement
• Calculate the statistic of interest for this
  sample of size M
• Repeat many times
• Use the standard deviation in these samples to
  estimate standard deviation in the population

4
Example median

• Suppose we would like to estimate the median of a
  population from a sample of size n
• Sample Mn observations with replacement from the
  observed data,
• Take the median of this simulated data set
• Repeat these steps B times B simulated medians
• These medians are approximately draws from the
  sampling distribution of the median of n
  observations
• Calculate their standard deviation to estimate
  the standard error of the median

5
When does the bootstrap work?

• The underlying idea is that of Russian dolls
  the bootstrap samples should relate to the
  original sample just as the original sample
  relates to the unknown population
• (Count the freckles on the faces of Russian
  dolls)

6
Empirical measures

• Each observation can be represented by a point
  mass in space
• The average of these point masses is called
  empirical measure a random quantity taking
  values in the set of measures

7
Limits of empirical measures

• This empirical measure will converge to a limit
  if the conditions are right just like the law of
  large numbers
• Just like for real-valued random quantities, for
  independent identically distributed observations
  an approximation by a Gaussian measure holds
• We say that the bootstrap works when the
  bootstrap empirical measure can be approximated
  by a Gaussian measure centred around the true
  measure

8
Conditions for validity?

• The theoretical arguments proving that the
  bootstrap works rely on large independent samples

• But in dependent observations the standard
  deviation would be estimated wrongly
• In time series blockwise bootstrap Kuensch
  (1989), Carlstein et al. (1998) sample a whole
  block of observations in the time series, use the
  block to approximate the standard deviation

9
Dependency graphs

• For random variables we can construct a graph
  with the random variables as the vertices
• Two vertices are linked by an edge if and only if
  the corresponding random variables are dependent
• The set of all neighbours of a vertex is then the
  set of all random variables which are dependent
  on the vertex random variable

10
Bootstrapping in such graphs

• To capture the dependence structure, we bootstrap
  not isolated vertices but whole neighbourhoods of
  dependence together with the vertex
• Have to weight and re-scale observations

11
Regular graph

• If all dependency neighbourhoods have the same
  size, i.e. every vertex has the same degree, then
  we have a regular graph
• If the dependency neighbourhoods are small, then
  the bootstrap works (have numerical bound)

12
Re-weighting

• If the graph is not only regular, but also all
  pairwise intersections of dependency
  neighbourhoods have the same size, g, say, then
  adjust the variance estimate by multiplying with
  M and then divide by (n-g), where M is the size
  of the bootstrap sample, and n is the original
  sample size
• Same weights as above also if intersections are
  all empty

13
Weights in K-nearest neighbour graphs

• Place vertices on a circle, connect each vertex
  to its k nearest neighbours to the left and to
  the right so each vertex has degree 2k
• Have to multiply variance estimator by M and
  divide by n-2k
• But also have to weight covariance part
  differently, depending on the size of dependency
  neighbourhood overlaps

14
Example Bucky ball
15
Weighted network

• For each edge simulate i.i.d. standard normals
• Fix a random orientation of the edge
• For each vertex add the normals for edges going
  into the vertex, and subtract the normals going
  out of the vertex
• Sampling distribution for the variance?

16
Realisation
17
Dependency bucky graph
18
Variances
19
Numerical values
20
Summary

• Dependency graph bootstrapping from graphs, when
  edges indicate dependence, works when the graph
  is (reasonably) regular, provided that the
  variance estimates are multiplied by the
  correction factor
• Independent bootstrapping may lead to wrong
  standard error estimates

21
Reference

• S. Holmes and G. Reinert Steins method for the
  bootstrap. In Steins Method Expository
  Lectures and Applications. P. Diaconis and S.
  Holmes, eds, IMS, Hayward, 2004.
• http//www.stats.ox.ac.uk/reinert/papers/steinboo
  tstrap.pdf
