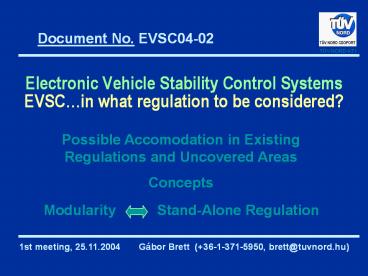

Electronic Vehicle Stability Control Systems
EVSCin what regulation to be considered?
Document No. EVSC04-02
TÜV NORD-KTI
Possible Accomodation in Existing Regulations and
Uncovered Areas Concepts
Modularity
Stand-Alone Regulation

1st meeting, 25.11.2004 Gábor Brett
(36-1-371-5950, brett_at_tuvnord.hu)
2
2.
Document No. EVSC04-02
TÜV NORD-KTI
What should be accomodated in what? (desired
output and main contentual components)
Approval of systems (which systems?) / whole
vehicles Scope (passenger car heavy
vehicle combination)


EVSC specific definitions
Full functionality
Design requirements of systems
Performance requirements of systems

Interconnection of systems
Failure modes
Performance requirements of vehicles
Test methods of systems (HIL etc)
ISO methods
(x-y-z coordinates)
Test methods of vehicles
1st meeting, 25.11.2004 Gábor Brett
(36-1-371-5950, brett_at_tuvnord.hu)
3
3.
Document No. EVSC04-02
TÜV NORD-KTI
Possible Accomodation in Existing Regulations
vehicle approval
system approval
Focusing to systems
Reg.13/09 (Braking)
YES - brake approval
test report poss.
Reg.79/01s3 (Steering)
YES - steering appr.
test report poss.
Focusing to whole vehicle performance
STABILITY (static)
Reg.107/01 (Buses, under reconsideration)
minor aspect
Reg.111/00 (Tank vehicle rollover stability)
major aspect
CAN PROVIDE THE ARBITRARY BASIS FOR A STAND-ALONE
EVSC REGULATION, SCOPE MAY BE CHANGED. A TOTAL
REDRAFTING IS NECESSARY
1st meeting, 25.11 2004 Gábor Brett
(36-1-371-5950, brett_at_tuvnord.hu)
4
4.
Document No. EVSC04-02
TÜV NORD-KTI
Where to modify?
Reg.13/09 (Braking)
Reg.79/01s3 (Steering)
2. Definitions 3. Application for approval 5.
Specifications Annex 2. Communication Annexes NE
W Annex 16. or 21.? Special requirements for
vehicles equipped with EVSC
2. Definitions 3. Application for approval 5.
Construction provisions 6. Test provisions Annex
1. Communication NEW Annex 7.? Special
requirements for vehicles equipped with EVSC
MAKES A SEPARATE EVSC REGULATION SUPERFLUOUS?
1st meeting, 25.11 2004 Gábor Brett
(36-1-371-5950, brett_at_tuvnord.hu)
5
5.
Document No. EVSC04-02
TÜV NORD-KTI
Uncovered Areas
Systems acting directly for stability enhancement
other systems
interaction
driver assistance
braking
pre-crash system
steering
suspension
ACC
powertrain...
etc.
Functions of systems
ANY FUNCTION RESULTING FROM THE COOPERATION OF
SYSTEMS
1st meeting, 25.11 2004 Gábor Brett
(36-1-371-5950, brett_at_tuvnord.hu)
6
6.
Document No. EVSC04-02
TÜV NORD-KTI
Concepts
Approaches from minimal to maximal
no special EVSC approval
special EVSC approval possible
extension of brake and steering approvals as far
as these systems are concerned (like in slide 4)
EVSC definitions, vehicle performance, CEL,
references... any other system appr.
VERTICAL
MODULAR
Reg. CEVCS ? (GRRF 56. I-25)
HORIZONTAL
growth of
STAND-ALONE EVSC APPROVAL for
complexity
vehicle types
systems
1st meeting, 25.11.2004 Gábor Brett
(36-1-371-5950, brett_at_tuvnord.hu)
7
7.
Document No. EVSC04-02
TÜV NORD-KTI
A New Horizontal Regulation?
Like Reg.10/02 (EMC), Complex Electronic Vehicle
Control System concept
For vehicle type approval may be omitted in the
first phase.
Brake, steering extended functionality
Composition of single approvals
(Supplementary EVSC vehicle approval)
(CEVSC approval)
For EVSC system approval desirable.
The composition of single approvals, granted to
the vehicle, is not appropriate test reports
based on provisions of single regulations may be
utilized, if they are modified accordingly.

1st meeting, 25.11 2004 Gábor Brett
(36-1-371-5950, brett_at_tuvnord.hu)
8
8.
Document No. EVSC04-02
TÜV NORD-KTI
