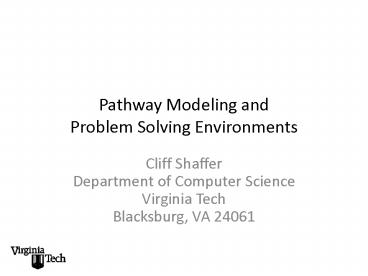

Pathway Modeling andProblem Solving Environments

• Cliff Shaffer
• Department of Computer Science
• Virginia Tech
• Blacksburg, VA 24061

2
The Fundamental Goal of Molecular Cell Biology
3
ApplicationCell Cycle Modeling

• How do cells convert genes into behavior?
• Create proteins from genes
• Protein interactions
• Protein effects on the cell
• Our study organism is the cell cycle of the
  budding yeast Saccharomyces cerevisiae.

4
G1
cell division
S
DNA replication
M (mitosis)
G2
5
Mcm1
Cdh1
Cdc20
Cln2 Clb2 Clb5
Mitosis
Mad2
growth
APC-P

unaligned chromosomes

Mcm1
Cdc20
Cdh1
Clb2
APC
Inactive trimer
Cdc14
and
Cln3
Swi5
CDKs
SCF
P
Cdc14
Bck2
Inactive trimer
?
MBF
Clb5
DNA synthesis
Clb2
SBF
Cln2
Budding
6
Modeling Techniques

• One method Use ODEs that describe the rate at
  which each protein concentration changes
• Protein A degrades protein B
• with initial condition A(0) A0.
• Parameter c determines the rate of
  degradation.
• Sometimes modelers use creative rate laws to
  approximate subsystems

7
Mathematical Model
8
Simulation of the budding yeast cell cycle
mass
CKI
Cln2
Clb2
Cdh1
Cdc20
Time (min)
9
(No Transcript)
10
Experimental Data
11
Tysons Budding Yeast Model

• Tysons model contains over 30 ODEs, some
  nonlinear.
• Events can cause concentrations to be reset.
• About 140 rate constant parameters
• Most are unavailable from experiment and must set
  by the modeler

12
Fundamental Activities

• Collect information
• Search literature (databases), Lab notebooks
• Define/modify models
• A user interface problem
• Run simulations
• Equation solvers (ODEs, PDEs, deterministic,
  stochastic)
• Compare simulation results to experimental data
• Analysis

13
Modeling Lifecycle
14
Our Mission Build Software to Help the Modelers

• Typical cycle time for changing the model used to
  be one month
• Collect data on paper lab notebooks
• Convert to differential equations by hand
• Calibrate the model by trial and error
• Inadequate analysis tools
• Goal Change the model once per day.
• Bottleneck should shift to the experimentalists

15
Another View

• Current models of simple organisms contain a few
  10s of equations.
• To model mammalian systems might require two
  orders of magnitude in additional complexity.
• We hope our current vision for tools can supply
  one order of magnitude.
• The other order of magnitude is an open problem.

16
JigCell

• Current Primary Software Components
• JigCell Model Builder
• JigCell Run Manager
• JigCell Comparator
• Automated Parameter Estimation (PET)
• Bifurcation Analysis (Oscill8)
• http//jigcell.biol.vt.edu

17
Model Builder
Parameter Values
Run Manager
Comparator
Parameter Optimizer
18
JigCell Model Builder

• From a wiring diagram

19
JigCell Model Builder

• to a reaction mechanism

N.B. Parameters are given names, not numerical
values!
to ordinary differential equations
(ode files, SBML)
20
Mutations

• Wild type cell
• Mutations
• Typically caused by gene knockout
• Consider a mutant with no B to degrade A.
• Set c 0
• We have about 130 mutations
• each requires a separate simulation run

21
Run Manager

• Inheritance patterns

22
JigCell Run Manager
23
Phenotypes

• Each mutant has some observed outcome
  (experimental data). Generally qualitative.
• Cell lived
• Cell died in G1 phase
• Model should match the experimental data.
• Model should not be overly sensitive to the rate
  constants.
• Overly sensitive biological systems tend not to
  survive

24
Comparator

• Visualize results

Kumagai1
Kumagai2
25
Comparator
