Title: Node Identity Internetworking Architecture


1

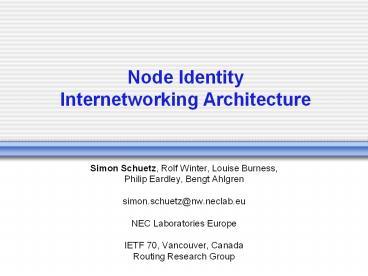

Node IdentityInternetworking Architecture
  • Simon Schuetz, Rolf Winter, Louise Burness,
  • Philip Eardley, Bengt Ahlgren
  • simon.schuetz_at_nw.neclab.eu
  • NEC Laboratories Europe
  • IETF 70, Vancouver, Canada
  • Routing Research Group

2
What it is not!
  • It is not purely a routing architecture
  • It is not an ITR-ETR based approach
  • It is not transparent for end-hosts
  • It is not an incremental update to BGP
  • It is not unifying the network layer

3
What it is!
  • a new Internetworking architecture
  • ID/loc-split based approach
  • a framework for new routing approaches
  • accepting the existence of different networking
    technologies (IPv4, IPv6 or even 3G, etc.)

4
Overview
  • There are nodes
  • Nodes have (crypto) identities (NIDs)
  • Nodes are interconnected
  • Nodes have locators
  • Nodes are grouped in locator domains (LDs)
  • NID routers (NRs) bridge between LDs

5
Key Features
  • ID/loc split
  • Node Identities (NIDs) are the public part of a
    randomly, self-generated public/private key pair
  • Node Identity Forwarding Tag (NIFT) is a
    fixed-length hash of the NID
  • Global network separated into locator domains
    (LDs)
  • Having a single networking technology
  • Having a consistent internal routing mechanism
  • One (or a few) rather static core LD
  • Other LDs hanging from the core
  • Assumption Mobility happens rather at the egdes
  • Two-level routing
  • Technology-dependent intra-LD routing (e.g.
    IP-based)
  • Technology-independent inter-LD routing (e.g.
    based on NIDs)
  • Registration-based default routing mechanism
  • Open to other routing schemes

6
Effects of LD concept
  • No need to unify networking technology
  • IPv4, IPv6, etc. can co-exist
  • Locators within one LD have no meaning outside
    their LD
  • No need for globally unique locators
  • Hides LD-internal structure
  • Intra-LD (networking technology-dependent)
    routing invisible to outside
  • Mobility events can be localized
  • E.g. LD-internal mobility is invisible to outside

7
Default Routing Overview
  • Can be separated into 3 phases
  • Up to the core-LD using default path
  • Through the core-LD
  • Down to the edges using registration information
  • Shortcuts are possible
  • i.e. dont have to go through core LD

2
3
1
8
Registration-based Default Routing
  • Default Routing in NIIA is based on registration
    state
  • Nodes register their NID/NIFT
  • to all NRs along a path from the local LD to the
    core LD
  • Registration path serves as default route towards
    the core LD
  • Reverse-path serves as default route from core to
    destination node

9
Registration Example
  • Node 9 registers up to node 4

10
Registration Protocol Options 1/2
  • Recursive
  • Node sends registration only to first-hop NID
    router
  • NID router recursively forwards registration
  • Easy for the registering node
  • Minimizes message round-trips
  • Requires some sort of authorisation

Register(ID 9)
Register(ID 9)
OK
OK
11
Registration Protocol Options 2/2
  • Iterative
  • Node iteratively registers at all NRs
    individually
  • NR can return next upstream NR
  • More control by the registering node

Register(ID 9)
OK (next ID 4)
Register(ID 9)
OK
12
Registration-based Routing Tables
  • NRs construct NID routing tables based on
    registration information

Routing table for node 4
Routing table for node 8
Routing table for node 5
13
Routing towards core LD
  • Use routing tables
  • E.g. send from node 9 to node 10

14
Routing across Core LD 1/2
  • NIIA defines a Routing hint
  • A tag primarily used to identify the core NR
    responsible for a destination node
  • Used as a partial source route
  • In a simple case, routing hint is a core NR NIFT
  • E.g. Node 5s NIFT is routing hint for node 10
  • Within core LD every packet for node 10 goes to
    node 5

15
Routing across Core LD 2/2
  • Routing hint needs to be mapped to a locator
  • Option 1 all core NRs know all other core NRs
  • Option 2 all core NRs are entered in a lookup
    system
  • Continuing example
  • Node 4 looks up dstHint
  • Forwards to ID 5

Lookup System
16
Routing towards Destination
  • Use again routing table

Lookup System
17
Forwarding Options
  • Stateless approach
  • No per-session or per-communication-pair state
  • Requires a NID header being present in every
    packet
  • Stateful approach
  • Install per-session or per-communication state in
    the network
  • Data packets dont have to include a NID header
  • Signalling exchange required at communication
    setup time
  • Similar example
  • HIP uses base exchange to setup state, data
    packets only carry ESP header
  • HIP SPINAT multiplexes based on SPI values

IPv4 Header
NID Header
dstLoc
dstNIFT
...
srcLoc
dstHint
srcNIFT
srcHint


18
Other Routing Approaches
  • Not specified in draft-schuetz-nid-arch-00
  • Should be specified in additional drafts
  • Some options
  • registration-based LD routing
  • Each LD is assigned an LD identifier (LDID)
  • Nodes register in local LD only
  • NRs register LDIDs instead of NIDs/NIFTs
  • Routing hint is LDID, not core NR NIFT
  • LDID based routing protocol
  • Similar, but running a BGP-like protocol between
    NRs instead of registering LDIDs
  • Creating structured routing hints to allow
    aggregation
  • Based on LD-structure

19
Global Naming System
  • In NIIA, source node needs to lookup
  • Destinations NIFT
  • Destinations hint
  • Both must be stored in a global naming system
  • Open question whether needs to be the same naming
    system
  • Could use DNS

20
Node Mobility
  • Remember Mobility expected rather at the egdes
  • Intra-LD mobility can be handled inside the LD
    (either by re-registration or LD-internal
    mobility solution, e.g. MobileIP)
  • Inter-LD mobility requires re-registration of the
    node
  • But registration can be stopped when hitting a
    NR of the previous registration path
  • ?Mobility events get localised
  • NR within the core LD can serve as home agent

21
Network Mobility
  • Requires NR(s) of the moving network to
    re-register
  • Also need to update included nodes registration
    information
  • Easy in recursive scheme
  • Could be done in a batch mode
  • Again, can terminate registration process when
    hitting old registration path

22
Example Network Mobility
  • LD 3 moves
  • NR 8 re-registers

ID 8
ID 9
23
Multihoming
  • No details yet
  • Node Multihoming
  • Idea Nodes register along multiple paths
  • Network Multihoming
  • Idea NRs within multihomed network exchange
    registration information
  • NRs having multiple entries per node can perform
    Traffic engineering
  • Details solutions partially depend on chosen
    implementation options

24
Open Design Issues
  • Remember
  • NIIA is not a routing protocol as such
  • It is a framework for new routing protocols
  • Routing Hint
  • NIFT
  • LDID
  • Structured/hierarchical hint
  • Routing hint lookup system
  • Depending on the nature of the routing hint
  • Depending on the number of core NRs
  • Global naming system
  • DNS
  • Something else?
  • Registration protocol
  • Recursive
  • Iterative
  • Forwarding approach
  • Stateless

25
Prototype
  • Small scale prototype implementing
  • Recursive NID registration
  • Stateful packet forwarding
  • Based on HIP implementation (Hip4inter.net)
  • NID registration in form of HIP parameters
  • NID router as modified HIP SPINAT implemenation
  • Current features
  • Recursive NID registration at NRs
  • NID routing table setup
  • End-to-end connection setup across multiple
    locator domains
  • Bridging across heterogenous networking
    technologies
  • Supporting IPv4 and IPv6, local and global
    address spaces

26
Summary
  • Current draft -00
  • describes the architecture
  • Based on ID/loc split
  • Node IDs are cryptographic
  • Nodes are grouped in locator domains
  • Node Identity Routers bridge between locator
    domains
  • depicts one possible routing approach
  • Registration-based routing
  • Routing hint is generic
  • In current draft a core NRs NIFT, but
  • could be many other things (e.g. LDID, structure
    locator, )
  • Other routing approaches can be plugged into the
    architecture
  • Additional drafts are required to
  • Describe routing approaches in detail
  • Define the protocols

27
Pointers
  • Node Identity Internetworking Architecture. S.
    Schuetz, R. Winter, L. Burness, P. Eardley, B.
    Ahlgren. draft-schuetz-nid-arch-00 (work in
    progress), Sept. 2007
  • A Node Identity Internetworking Architecture.
    Bengt Ahlgren, Jari Arkko, Lars Eggert and Jarno
    Rajahalme. 9th IEEE Global Internet Symposium,
    Barcelona, Spain, April 28-29, 2006.
  • Ambient Networks project http//www.ambient-netwo
    rks.org

28
Thank you! Question?
