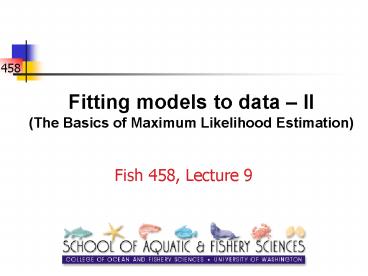

Fitting models to data

1
Fitting models to data II(The Basics of
Maximum Likelihood Estimation)

• Fish 458, Lecture 9

2
The Principle of ML Estimation

• We wish to select the values for the parameters
  so that the probability that the model generated
  (is responsible for) the data is a high as
  possible.
• Taken another way if we have two candidate sets
  of parameters and the probability that one
  generated the data is ten times the other, we
  would naturally prefer the former.
• OK, so how to we define this probability.

3
The Likelihood Function

• What we need to compute is the likelihood
  function
• If we have a discrete set of hypotheses / set of
  parameter vectors, then

4
A First Example

• We observe Y6 and know that the observation
  process is based on the equation
• Given Y6, the likelihood function is normal

5
A First Example - II
Y4
Y6
Note the parameter and not the data we are
given the data
6
Multiple Data Sources

• If we have multiple data sources (CPUE and survey
  data for Cape Hake), we can establish a
  likelihood for each data source. The likelihood
  for the two data sources combined is the product
  of the likelihoods for each data source
• Note We often work with the logarithm of the
  likelihood function, i.e.

7
Likelihood Estimation

• Identify the questions.
• Identity the data sources.
• Select alternative models.
• Select appropriate likelihood functions for each
  data source.
• Find the values for the parameters that maximize
  the likelihood function (hence Maximum Likelihood
  Estimation).

8
Finding the Maximum Likelihood Estimates
The best estimate is 6, because this value of ?
leads to the maximum likelihood
9
Therefore.
We need to know which probability density
functions to use for which data types.

• The probability distributions encountered most
  commonly are
• Normal / multivariate normal
• t
• Log-normal
• Poisson
• Negative binomial
• Beta
• Binomial / multinomial

You need to know when to use each distribution
and its functional form (up to any normalizing
constants).
10
The Normal and t-distributions

• The density functions for the normal and
  t-distributions are
• ? is the mean
• ? is the standard deviation ( for the t)
• k is the degrees of freedom.
• We use these distributions when the data are the
  sum of terms. The t-distribution allows account
  to be taken of small sample sizes (?lt30).

11
The Normal and t-distributions
12
Key Point with Normal Likelihood
Let us say we wish to fit the model
assuming normally distributed errors, i.e.
The likelihood function is therefore
Taking logarithms and multiplying by -1 gives
This is implies that if you assume
normally-distributed errors, the answers will be
identical to those from least squares.
13
Time for an Example!

• We wish to fit the Dynamic Schaefer model to the
  bowhead census data.
• q is assumed to be 1 here because the surveys
  provide absolute indices of abundance.
• We have information on the trend in abundance
  from 1978-93 (increase of 3.2 per annum (SD
  0.76) based on 8 data points).
• We have an estimate of abundance for 1993 of 7800
  (SD 564).

14
How to Deal with this Example!

• The model
• The likelihood function is the product of a
  normal likelihood (for the abundance estimate)
  and a t-likelihood (for the trend). Ignoring
  constants independent of the model parameters
• We take logs, multiply by minus one and minimize
  to find the estimates for K and r.
• Note that we can ignore any constants why?
• The t-distribution is chosen for the slope why?

15
The Outcome
B19937710 Slope78-932.95
16
The Lognormal distribution

• The density function
• ? is the median (not the mean)
• ? is the standard deviation of the logarithm
  (approximately the coefficient of variation of
  x).
• The lognormal distribution is used extensively in
  fisheries assessments because x is always larger
  than zero this is true for most data sources
  (CPUE, survey indices, estimates of death rates,
  etc.)

17
The Multivariate Normal-I

• The density function
• is the vector of means.
• is the variance-covariance matrix.
• d is the length of the vector.
• This isnt nearly as bad as it looks.

18
The Multivariate Normal-II

• We use the multivariate normal when the data
  points are correlated (e.g. surveys with common
  correction factors). For example for bowheads

19
Readings

• Hilborn and Mangel (1997) Chapter 7
• Haddon (2001), Chapter 4
