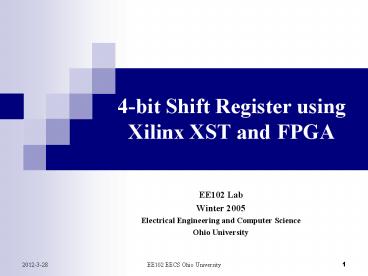

4-bit Shift Register using Xilinx XST and FPGA

1
4-bit Shift Register using Xilinx XST and FPGA

• EE102 Lab
• Winter 2005
• Electrical Engineering and Computer Science
• Ohio University

2
Outline

• 4-bit shift register
• Prototype system Spartan-3
• Sample design overview
• Lab Procedure
• Testing
• Schedule

3
4-bit shift register
4
Prototype system Spartan-3
5
Sample design overview

• 4-bit shift register
• Reset button Btn0
• Preset button Btn1
• Clock button Btn2
• Input bit switch 7
• Preset data switch 3-0

• Three functional modules
• 4-bit shift register
• Controller controlling the state of reset, load
  or shift
• I/O interface

6
Procedure
1. Creating project and adding source
7
Procedure
2. Creating one-bit register symbol
8
Procedure
3. Building 4-bit shift register in Schematic
Editor
9
Procedure
3. Building 4-bit shift register in Schematic
Editor
10
Procedure
3. Building 4-bit shift register in Schematic
Editor
11
Procedure
4. Adding design constraints
12
Procedure
5. Synthesize the design
13
Procedure
6. Generate the bit programming file
14
Procedure
7. Download the bit file to FPGA chip
15
Procedure
8. Test the design
16
Schedule

• Webpage
• http//www.ent.ohiou.edu/webcad/ee102
• Please print out the instruction before the lab
• Schedule
• A01   03/08 Tuesday 1PM3PAM
• A02 03/10 Thursday 8AM10AM
• A03 03/10 Thursday 1PM3PM
• Rm 306, Stocker Center

17
Thank you
18
HDL(Hardware description language)

• VHDL Very high-speed integrated circuits
  Hardware Description Language a higher level of
  abstraction to capture designs.
• Xilinx XST Xilinx Synthesis Tools take these
  HDLs and automatically translate them into
  schematics, map them as gates and switches on
  FPGA chip.
