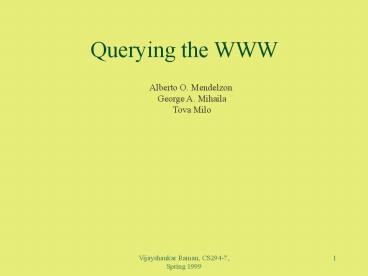

Querying the WWW

1
Querying the WWW
Alberto O. Mendelzon George A. Mihaila Tova Milo
2
Scenarios...

• Find about PCs from IBM
• query IBM personal computer price
• can we restrict search to www.ibm.com ?
• Find a good music store
• should I ask yahoo or hotbot or lycos or ?
• Find pages about databases within 2 links from
  Joes webpage
• Find recent web pages with title Bobs Music
  Store

3
Problems

• Queries dont exploit structure of data
• Queries dont exploit link topology of data
• Source selection hard
• different search engines have different
  functionalities, idiosyncratic behaviour
• different search engines good at different tasks

4
Outline

• Motivation
• WebSQL
• Nuts and Bolts
• Query Locality
• Good, Bad and Ugly

5
WebSQL

• Integrate structure/topology constraints with
  textual retrieval
• Virtual graph model of document network
• Need to combine navigation and querying

• Query Language that utilizes documents structure
  and can accept constraints on link topology

6
Data Model

• Relational
• Each web object is a tuple in a Document
• url, title, text, type, length, modification
  info
• Hyperlinks are tuples in Anchor
• base, href, label
• interior links ( )within same document
• local links ( ) within same server
• global ( ) across servers

7
Examples

• SELECT x.url, x.title, y.url, y.titleFROM
  Document x SUCH THAT
  x MENTIONS Computer Science,
  Document y SUCH THAT x y
  -- docs within 2 links from something on CS.
• SELECT d.url, d.titleFROM Document d SUCH THAT

  http//www.cs.toronto.edu
  dWHERE d.title CONTAINS database -- docs
  within 2 links of CS homepage.
• MENTIONS search engine, CONTAINS checked
  locally

8
More examples

• from Toronto
• Job Opportunities for Software Engineers SELECT
  e.url FROM Document d SUCH THAT
  d MENTIONS "Career Opportunities" , Document e
  SUCH THAT d - e WHERE e.text CONTAINS
  "Software Engineer
• this query is useful, but ...

9
Outline

• Motivation
• WebSQL
• Nuts and Bolts
• Query Locality
• Good, Bad and Ugly

10
Nuts and bolts

• SELECT Fields(x1, x2, , xn)FROM Obj x1 SUCH
  THAT A1 Obj x2 SUCH THAT A2
  WHERE Condition(x1, x2, xn)
• nested loops join algorithm for all x1 such
  that A1 is true for all x2 such that A2 is
  true

11

• each atomic condition A1 Am is of form
• Path( from_node, path_expression, to_node)
• x5 (-) x7
• enumerate links to check these
• NodePredicate(node)
• CONTAINS Bobs Coffee Place (x5)
• query a customizable set of known search
  engines
• what queries are computable?
• those that dont have to explore the entire web
• safe queries every variable must be
• either directly solvable in some atomic
  condition, OR
• directly derivable from another in some atomic
  condition

12
Query Locality

• distinguish between access to local and remote
  documents
• model communication cost of a query based on
• expected number of results from search engines
• expected size of documents
• expected number of exterior, interior, remote
  links per document
• expected cost of network access
• can identify potentially expensive components of
  a query and warn user

13
The Good

• Idea of using structure in answering queries
• topologies can be useful, with a better
  interface...
• can be used for link maintenance

14
The Bad

• Too complicated (especially syntax)
• easy to write queries that explore the entire
  web.
• does end user care for topology
  constraint,besides domain constraint?
• Remote accesses cause huge slow down
• check topology constraints at search engine?
• availability

15
The Ugly

• How to avoid back links?
• Fuzzy queries
• find me good, inexpensive Chilean restaurants
  that are close by

16
Issues

• What kinds of path based queries are useful,
  intuitive?
• How to check the path constraints at the search
  engine?
• Can hypertext links be viewed as yet another kind
  of link in a semi-structured model

17
Other Work

• Other, generic intra-document structure can be
  useful
• Topology, structure can be used by system
  (instead of by end user)
• use links to determine quality of site content
• authority sites -- find www.harvard.edu for query
  on harvard
• classification -- Cha-Cha
• Store links at search engine for proximity
  searches
• can generalize to arbitrary links in a directed
  graph model --- Goldman et. al 98
• get see also info
