PHY138 Waves, Lecture 3 Todays overview

1

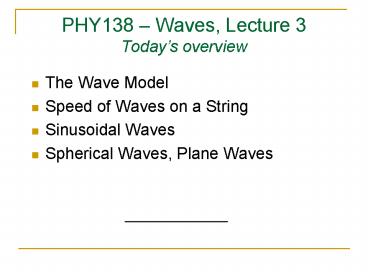

PHY138 Waves, Lecture 3Todays overview

• The Wave Model
• Speed of Waves on a String
• Sinusoidal Waves
• Spherical Waves, Plane Waves

2
Reading Assignment

• This weeks reading assignment from the text by
  Knight is Chapter 20, Sections 20.1-20.7
• There is also an article on Medical Ultrasound
  available on the web-page for Wednesdays Lecture
  (Waves Lecture 4).
• Suggested Chapter 20 Exercises and Problems for
  Practice 1, 25, 35, 39, 53, 69, 71, 79, 82 (79
  is funny!)

3
Transverse versus Longitudinal
4
Snapshot Graph
5
History Graph
6

• A string of beads are connected by a set of tiny
  springs. At the instant the clock starts (t0), a
  pulse is moving to the right on the beads and the
  snapshot graph looks like this

Which of the following history graphs tracks the
position for the bead marked with a red arrow as
a function of time?
7
The graph at the top is the history graph at x
4 m of a wave traveling to the right at a speed
of 2 m/s. Which is the history graph of this wave
at x 0 m?
(A) (B) (C)
8
Sinusoidal Waves
9
What is the frequency of this traveling wave?
A. 10 Hz B. 5 Hz C. 2 Hz D. 0.2 Hz E. 0.1
Hz
10
What is the phase difference between the maximum
of a wave and the adjacent minimum? (crest to
trough)
A. 0 B. p /4 C. p /2 D. 3 p /2 E.
p
11
Sinusoidal Wave Snapshot Graph

• k 2p/? is the wave number

12
Sinusoidal Wave History Graph

• ?2p/T is the angular frequency

13
