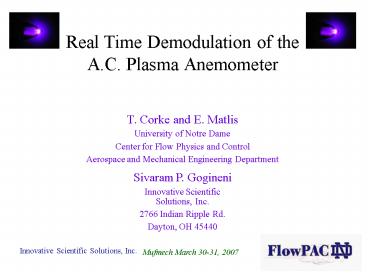

Real Time Demodulation of the A.C. Plasma Anemometer

1
Real Time Demodulation of the A.C. Plasma
Anemometer

• T. Corke and E. Matlis
• University of Notre Dame
• Center for Flow Physics and Control
• Aerospace and Mechanical Engineering Department

Sivaram P. Gogineni Innovative Scientific
Solutions, Inc. 2766 Indian Ripple Rd. Dayton,
OH 45440
2
Objectives - Develop robust, high-bandwidth
sensor based on a.c. glow-discharge. -
Develop calibration procedure for high enthalpy
flows. - Acquire and process signal in
real-time. - Demonstrate Wireless
Transmission.
3
Probe Fixture
H.V. 350 Vrms
Electrode Gap 0.002
Nylon Locking Screw
Ground
Platinum-Iridium Tips
Plastic Probe Holder
4
Mechanism for Flow Sensitivity (Mettler, 1949)
For D.C. Glow

• Flow convects charge-carrying ions downstream.
• Loss of current increases internal resistance
  increases voltage output.
• Mechanism has no dependence on temperature.
• Native frequency response.
• Robust, small spatial volume.

5
A.C. Carrier A.M. Approach
Fc 3 MHz
fm
Velocity Fluctuations
U
A.C. Carrier
Modulated Carrier
Spectral Domain
fc
Carrier rms Gives Mean
Side-Band rms Give Fluctuations
6
Closed-Loop Feedback

• Current used to maintain plasma independent of
  flow velocity.
• Real time demodulation

GnuRadio
7
Wireless Acquisition and Real-Time Processing
Raw FFT 3 MHz Carrier, 1 kHz modulation
Demodulated FFT Spectrum converted to baseband
Received wirelessly!
Demodulated Time Series
8
1 - 2 kHz blade passing frequency
9
Plasma Boundary Layer Probe in Mach 1.4 Tunnel
10
Frequency Response Cylinder Wake200 kHz
Response at Mach 0.9
254 m/s
11
Plasma Sensor Mean Calibration
Mach 1.4 Boundary Layer Profile
12
Calibration Hot-wire vs Plasma Sensor
- Hotwire rms fluctuations depend non-linearly on
mean flow calibration.
Ec
U ao a1V a2V2 a3V3 a4V4
Plasma Sensor
Em
m modulation index Em/Ec
- Fluctuations are linear ratio to mean.
13
Wireless Transmission For Turbo-Machinery
Applications
(Surface-mount)
Inductive Pick-Up (Magneto)
14
ND Transonic Compressor Facility

• 400 hp.
• Tip Mach 1.1
• Inlet Mach 0.45

Stream Measurements
Plasma Probe Locations
Supported by AFOSR DURIP
15
MEMS Plasma Sensor

• Advantages
• Smaller size
• Greater spatial resolution
• Reduced power required
• Improved dimensional tolerances
• Single piece design

16
Summary

• Plasma probe shows excellent potential for high
  speed time-
• resolved velocity measurements.
• - Offers extremely high frequency response
  without
• compensation.
• - Robust capable of measurements from Mach
  1 5 .
• - Low noise.
• - Calibration model possible.
• - Temperature independent.
• - Real time processing and wireless
  transmission.
• - Miniaturization through MEMS process.

17
Plasma Fluidic Response

• Flow causes convection of ions in gap.
• Voltage output increases with velocity.
• Mechanism independent of temperature.

18
Proposed for Phase II

• Develop laboratory plasma anemometer for
  distribution.
• Develop surface mount sensors for velocity,
  shear stress,
• and acoustic measurements.
• Develop wireless transmission.
• Integrated sensor and plasma actuators.
• Micro-sensor packaging.
• Applications Turbo-jet Engines, Pulsed
  Detonation,
• High Enthalpy and
  Ionized Gas Tunnels.

19
Laboratory Plasma Anemometer
mmodulation coef.
20
Modulation Coefficient Metric
Sample m1
Example from plasma sensor Too large gap (m1)
21
Cavity Flow Mach 5 WPAFB Rarified Air Tunnel
22
A.C. Carrier A.M. Approach
Fc 3 MHz
fm
Velocity Fluctuations
U
NL
A.C. Carrier
Modulated Carrier
Spectral Domain
Carrier rms Gives Mean
Side-Band rms Give Fluctuations
23
Comparison to H.W.
6.6 m/s
Plasma Probe Fm3242 Hz.
24
Comparison to H.W.
20.7 m/s
Plasma Probe Fm12.4kHz.
H.W. Probe F12.4kHz.
25
Comparison to H.W.
30 m/s
Plasma Probe Fm18kHz.
H.W. Probe F18kHz.
26
Plasma Probe Mean Flow Response
Hysteresis Test
Decreasing Velocity
Increasing Velocity
27
Plasma Probe Electrodes Tips
28
Cylinder Wake Mach 5 WPAFB Rarified Air Tunnel
35kHz
29
Voltage-Current Flow Dependence
Current
Voltage
30
Closed-Loop Feedback

• - Current used to maintain plasma independent of
  flow velocity.

Wireless Transmission
5 Watt 3 MHz
R
Sensor Current
error
power
reference
Amplifier

-
31

• A.C. Glow Discharge Plasma Sensor
• - Frequency response 1MHz.
• - Low power 5 Watt.
• - Use in high-enthalpy flows.
• - Independent of temperature.
• - Robust, no moving parts.
• - NATIVE high frequency response up to
  carrier
• frequency!
• - Capable of wireless transmission.

32
Current-Voltage Power Dependence
Voltage
Saturation
Current
33
Plasma Sensor Starting Hysteresis
Power Consumed Voltage (rms)
Begin start sequence
Operating Point
Input Power (Gain)
34
Frequency Response Cylinder Wake
Fm27 54 kHz.
190 m/s
Fm24 48 kHz.
Fm21 42 kHz.
U
Fm18 36 kHz.
Fm17 34 kHz.
120 m/s
35
Mach 1.4 Turbulent B.L.Mean Profile
Mean Response
fc
36
Mach 1.4 Turbulent B.L.Fluctuation Profile
Fluctuation Response
fc
