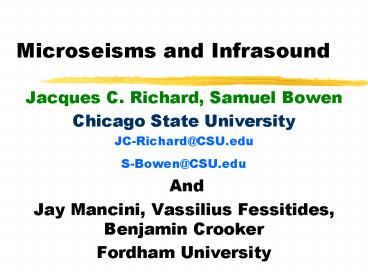

Microseisms and Infrasound

1
Microseisms and Infrasound

• Jacques C. Richard, Samuel Bowen
• Chicago State University
• JC-Richard_at_CSU.edu
• S-Bowen_at_CSU.edu
• And
• Jay Mancini, Vassilius Fessitides, Benjamin
  Crooker
• Fordham University

2
Overview

• Microseisms and infrasound
• Infrasonic wave, microseism detection
• Previous analyses
• Current models
• Different storms
• Conclusion and future work

3
Microseisms and Infrasound

• Infrasonic noise generated by storms, etc.
• Microseismic signals due to storms pounding on
  the ocean and seabed.
• Just below hearing.

4
Microseisms and Infrasound
5
Variety of Infrasonic Signal Types Vs. Period
Range
6
Wavelength Vs. Signal Period
7
Spectral Intent of an Infrasonic Signal Vs. Time
8
Microseisms and Infrasound

• Infrasonic noise generated by storms, etc.
• Microseismic signals due to storms pounding on
  the ocean and seabed.
• Just below hearing.

9
Long Range Meteor Detection by Single Infrasonic
Observatory
10
Micro-seisms and Infra-sound

• Fordham observed microseisms closely associated
  with cyclones passing over water
• Key storms cyclonic nature - no significant
  microseisms associated with linear waves

11
Hurricane Bonnie
12
Previous Work

• Longuet-Higgins (L-H) showed possible mechanisms
  for microseism generation using
• Bernoulli's principle,
• linearized hydrodynamic equations and
• Impact of waves moving across water surface
• Only linear wave structure that could generate
  microseisms was a standing wave

13
Previous Work

• Standing waves provided spatially coherent and
  persistent, oscillating pressures for microseism
  generation
• Standing waves kinetic energy gives rise to
  microseisms with twice its frequency

14
Previous Work

• Tabulevich suggested
• Wind waves before a moving storm and those
  following, perhaps moving in opposite directions,

• Then combining to form standing waves - even when
  these two winds are not present at the same point
  at the same time
• Others proposed complex non-linear higher order
  interactions as source of microseisms

15
Our Model

• Linear theory based on Bernoulli's principle more
  deeply examined
• Wave forms, other than linear standing waves,
  give rise to microseisms

16
Hurricane Bonnie
17
Hurricane Bonnie
18
Hurricane Bonnie
19
Hurricane Bonnie
20
Resonance Model

• Predicts frequency w g/v
• But frequency does not respond as such for low
  velocities
• Amplitude probably too small to be observed in
  seismometers

21
Slowly Moving Hurricane Stress Flow Theory

• Follows principles of mass, momentum and energy
  conservation
• Shear balance between air and water
• Result

22
Cylindrical Shear Flow Model and Bonnie
23
Cylindrical Shear Flow Model and Bonnie
24
Noreaster

• Cyclonic storm over Atlantic ocean near
  Northeastern coast of USA
• Microseisms from one such storm 1/98

25
Noreaster Track Coincides Bonnies
26
Cylindrical Shear Flow Model and a Noreaster
27
Conclusion

• Predicted average frequencies of microseisms and
  their dependence on environmental variables
• Most microseism effects well characterized by
  linearized hydrodynamic approximation using
  Bernoulli principle

28
Future Work

• Other peaks in microseism power spectra
• Fluctuations from mean motion
• Lifetime broadening of microseisms
• Microseisms with short wave trains less than ten
  cycles
• Infrasound near large bodies of water as storms
  pass over them
