INFO1200

1

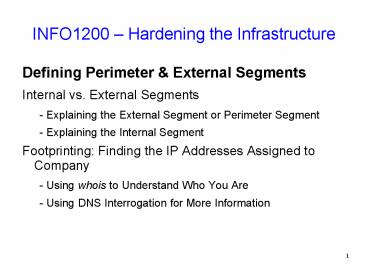

INFO1200 Hardening the Infrastructure

• Defining Perimeter External Segments
• Internal vs. External Segments
• - Explaining the External Segment or Perimeter
  Segment
• - Explaining the Internal Segment
• Footprinting Finding the IP Addresses Assigned
  to Company
• - Using whois to Understand Who You Are
• - Using DNS Interrogation for More Information

2
INFO1200 Hardening the Infrastructure

• Internal vs External Segments
• External Segment or Perimeter Segment
• - any network that exists in a low security zone
  of your environment
• eg. network that is attached to the external
  interface of your ISP's router
• - can extend to other network segments such as
  DMZ
• - Perimeter network or device
• 1. serves content to the Internet
• 2. can be pinged or connected to by anyone
• - WAP's extend perimeter of network also
  potentially allow untrusted user access to network

3
INFO1200 Hardening the Infrastructure

• Internal vs External Segments
• Internal Segment
• - any network that resides in the secured portion
  of your environment and provides resources and
  services that are only for internal use
• - must assign network device criticality to
  plan how to handle security patches, network
  recovery, continuity
• ie. some internal segment are more important than
  others
• - must also have accurate and up-to-date
  inventories of network device assets and
  owners/maintainers

4
INFO1200 Hardening the Infrastructure

• Footprinting Finding the IP Addresses Assigned
  to Company
• Using whois to Understand Who You Are
• - ICANN defines Address supporting Organization
  (ASO) which maintains databases of assigned
  public IP addresses
• - Databases broken down into Regional Internet
  Registries (RIR) each geographic region has an
  organization which administers RIR for that
  region
• ie. ARIN for North South America
• - RIRs can be queried using IP address or domain
  name using UNIX whois or by using web sites such
  as
• www.network-tools.com or www.dnsstuff.com

5
INFO1200 Hardening the Infrastructure

• Footprinting Finding the IP Addresses Assigned
  to Company
• Using DNS Interrogation for More Information
• - If you don't know all of domains or IP
  Addresses of company can use SEC's utility
  EDGAR to search for subsidiaries
• - With info on subsidiaries, can use NSLOOKUP to
  search for info on various possible domains of
  subsidiaries
• ie subsidiary.com, subsidiary.net etc.
• - Once verified through NSLOOKUP, can go to
  ARIN's web site to find IP addresses

6
INFO1200 Hardening the Infrastructure

• Assessing Your Current Networks
• Monitoring Traffic
• Looking at Logical Layouts
• Performing Security Audits
• Remediation
• Examining the Physical Security

7
INFO1200 Hardening the Infrastructure

• Assessing Your Current Networks
• Monitoring Traffic
• Sniffer Basics
• Sniffing Challenges
• Sniffer Applications
• Sniffing the air
• Network Counters

8
INFO1200 Hardening the Infrastructure

• Monitoring Traffic
• Sniffer Basics
• -can give valuable insight into performance
  bottlenecks in your network
• -will copy packets that enter NIC to the screen
  in format which can be understood
• -can also provide packet header info protocol
  decodes

9
INFO1200 Hardening the Infrastructure

• Monitoring Traffic
• Sniffing Challenges
• - Unless NIC is set to promiscuous mode only
  see packets destined for your PC
• - Can only sniff packets in your collision domain
  Thus if using switches will only see packets
  destined for your PC on the switch can be
  solved by using hub but not desirable
• - Using a managed switch provides solution by
  using feature called port mirroring

10
INFO1200 Hardening the Infrastructure

• Monitoring Traffic
• Sniffer Applications
• - Ethereal
• - TcpDump/WinDump
• - Snort
• - Microsoft Network Monitor
• - eEye Iris
• - TamoSoft CommView
• - WinPackets Etherpeek
• - Network Associates Netasyst

11
INFO1200 Hardening the Infrastructure

• Monitoring Traffic
• Sniffing the Air
• - need specialized software and hardware
• - Some vendors of Wired sniffing tools provide
  wireless tools ie. WildPackets
• - may need special wireless NIC as some apps will
  only work with NICs having PRISM3 chipset or only
  certain models of NIC
• - applications include Net Stumbler, Air Snort
  etc.

12
INFO1200 Hardening the Infrastructure

• Monitoring Traffic
• Network Counters
• - Statistical knowledge of network traffic can be
  obtained through use of counters available in
  network devices or OSs like Win 2003
• - Useful info can include No. of runts or
  oversized packets
• - Some examples of sources of counters are
• Routers - ie. Cisco routers
• SMNP counters
• Windows 2003 Performance Monitor

13
INFO1200 Hardening the Infrastructure

• Assessing Your Current Networks
• Looking at Logical Layouts
• Bus, Ring and Mesh Topologies
• Network Mapping
• using
• - Vulnerability Assessment Tools
• - Mapping-Only Tools

14
INFO1200 Hardening the Infrastructure

• Assessing Your Current Networks
• Performing Security Audits
• Vulnerability Assessment
• - Local Application
• - Free tools
• - Managed Vulnerability Assessment

15
INFO1200 Hardening the Infrastructure

• Assessing Your Current Networks
• Remediation
• Delegate Tasks
• Patch Management
• Follow-up

16
INFO1200 Hardening the Infrastructure

• Assessing Your Current Networks
• Examining the Physical Security
• Securing Your NOC
• Using Layering Methods for Physical Security
• Monitoring Current on Equipment
• Disabling Extra Ports
• Using Conference Room DMZ

17
INFO1200 Hardening the Infrastructure
