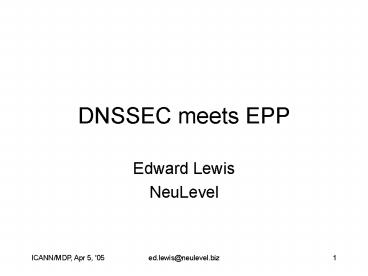

DNSSEC meets EPP

1
DNSSEC meets EPP

• Edward Lewis
• NeuLevel

2
Agenda

• What DNSSEC means to registries
• Why a DNSSEC extension to EPP
• Short demo
• Illustrate the concept
• The tools can be made

3
DNSSEC in a Nutshell
The data I seek www.neulevel.biz. 1800 IN A
209.173.53.163 www.neulevel.biz. 1800 IN A
209.173.57.163
The protection www.neulevel.biz. 1800 IN RRSIG
A ... by 55751 neulevel.biz.
Key to "prove it" neulevel.biz. 1800 IN
DNSKEY key id 55751
Why should I believe the key is right, and how
can this be done in a scaleable way? Via "DS
records" in registries (the TLD .biz in this
example.)
4
DNS tree and DNSSEC
Root zone "." SOA, DNSKEY biz. NS, DS
NeuLevel TLD
dot-BIZ zone biz. SOA, DNSKEY neulevel.biz. NS, DS
NeuLevel Office Zone neulevel.biz. SOA, DNSKEY
5
NS (DNS) vs DS (SEC)

• NS records "chain" servers
• DS records "chain" keys
• The noticeable differences
• DS records change more often
• Change is in steps, "graceful"
• DS records imply more security

6
DNSSEC to Registries

• Need to register DS records as aspect of a domain
• Elements of DS are documented
• Optionally, look at the DNSKEY record
• Additional detail
• DNSSEC signatures have "lifetimes"
• Need to limit lifetime of DS signatures

7
EPP

• Extensible Provisioning Protocol
• Provides a standard platform for providing
  services
• Registrars and Registries can intermix
• Extensions above the minimum are easy
• Gives registries more exposure
• Lessens cost to registrars when adding new
  services

8
EPP Registrations
EPP?
9
DNSSEC extensions to EPP

• Primary goal enable registration of DNSSEC data
  in EPP registries
• gTLDs, others are considering EPP
• Why in EPP?
• Existing service framework
• Minimize software investment
• "Market" can be defined

10
"Prototype"
From Sunday's Dilbert Cartoon, words of wisdom...
..."act" is the important word
11
Demo

• TLD DNS(SEC) server, dynamic update
• Registrant DNS, signed
• EPP Client to submit delegation
• EPP Server to accept delegation
• DNS Update Client to change zone
• Note missing registry "database"

12
Window layout
EPP Client
EPP Server
EPP
Log File
CutPaste
DNS Update Client
Registrant DNS "work directory"
Dynamic Update
TLD Server Running
13
Clean-up

• Discussion?
• Reference Documents
• DNSSEC RFC 4033, 4034, 4035
• EPP-DNSSEC
• draft-hollenbeck-epp-secdns-.txt
• current version (March 29, 2005)
• http//www.ietf.org/internet-drafts/draft-hollenbe
  ck-epp-secdns-07.txt
