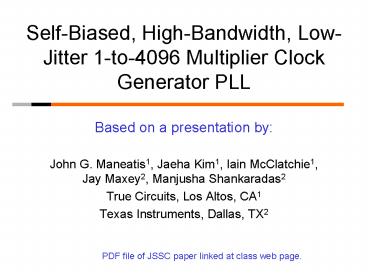

Title: SelfBiased, HighBandwidth, LowJitter 1to4096 Multiplier Clock Generator PLL


1
Self-Biased, High-Bandwidth, Low-Jitter 1-to-4096
Multiplier Clock Generator PLL
  • Based on a presentation by
  • John G. Maneatis1, Jaeha Kim1, Iain
    McClatchie1,Jay Maxey2, Manjusha Shankaradas2
  • True Circuits, Los Altos, CA1
  • Texas Instruments, Dallas, TX2

PDF file of JSSC paper linked at class web page.
2
Clock Generator PLLs for ASICs
  • Most ASICs PLLs for clock generation, but
  • Use different frequencies and multiplication

3
Optimal PLL Design
  • For each FOUT and N, one must adjust loop
    parameters for both minimum jitter and stability
  • For clock generators (track input clocks) (wREF
    2pFOUT/N)
  • Loop bandwidth wN wREF/20
  • Damping ratio z 1
  • Third-order pole wC wREF/2
  • Circuit parameters (e.g. ICH, R) must vary with
    FOUT and N!

4
Addressing Diverse Specifications
  • Designing a different PLL for each ASIC
  • Easier to meet the specification, but
  • Verifying all designs is difficult and costly
  • Our Goal One PLL design for all ASICs
  • Only one design needs verification, but
  • Loop parameters must adjust automaticallyto
    satisfy wide range of FOUT and N

5
Challenges
  • Self-biased PLLs Maneatis 96 adjust for FOUT
  • Achieve fixed wN/wREF and z indep. of PVT
  • But, Self-Biased PLLs do NOT adjust for N
  • wN/wREF and z vary with N (want fixed)
  • wC/wREF varies with N (want fixed)
  • This talk extends Self-Biased PLLs for wide
    ranges of N with a new loop filter network

6
Outline
  • Introduction
  • Review of Self-Biased PLLs
  • Pattern Jitter Issues
  • Loop Filter Architecture
  • Implementation of Key Circuits
  • Measured Results
  • Conclusions

7
Second-Order PLLs

8
Second-Order PLLs

Oscillation frequency is supposed to be
controlled by VCTL, that is by ICH/CS ICHR. In
Ring Oscillators, frequency is more easily
controlled by current, through tail biasing
voltage. ? want tail current to have two
components ICH/CS ICHR.
9
Self-Biased PLLs
VBN biases the tail current in Ring Oscillator
buffer stages.
So want ID to have components
10
Self-Biased PLLs
Op Amp adjust VBN so that NMOST ID matches
currents in 1/gm and that from top charge
pump. Notice VCTL VDD ICH / sC1 d ID (VDD
VCTL)gm ICH-ff ICH (1/sC1 1)
Hence VBN will generate I-tail proportional to
ICH (1/sC1 1)
11
Maneatis self bias generator
From 1996 Maneatis paper, which is very widely
reference. PDF file linked at web page.
12
Self-Biased PLLs
  • With Self-Biased PLLs
  • wN/wREF and z are constant with FOUT,BUT not
    with N

13
Pattern Jitter / Spurious Noise
  • Phase corrections every rising reference edge can
    cause disruptions to nearby output cycles
  • Periodic noise pattern repeats every ref. cycle
    or N output cycles
  • Typical causes
  • Charge pump imbalances or leakage
  • Jitter in reference clock (aperiodic result)

14
Shunt Capacitor
  • Use third-order pole to extend disturbance with
    reduced amplitude over many output cycles
  • Problem with varying N using fixed capacitor
  • Extended number of cycles NOT function of N
  • Too few for large N ? Pattern jitter
  • Too many for small N ? Instability

15
Proposed Loop Filter
  • Use switched capacitor filter network to
  • Output scaled amplitude error signal with N
    output cycle duration Maxim 01
  • Want a simple solution using this approach that
    is compatible with Self-Biased PLLs

16
Original Filter Network
  • Only need to filter feed-forward path

17
Sampled Feed-Forward Network
  • Sample phase error and generate proportional
    current that is held constant for NTOUT
  • Sampled error is reset at end of ref. cycle
  • Need VRST VCTL as zero bias level

18
Complete Filter Network
  • Reset C2 to VCTL directly
  • Eliminates C1 charge pump
  • Equivalent feed-forward control gain
  • QO N QI

19
Loop Dynamics
  • With this new loop filter network we achieve
  • Need to keep wN/wREF and z constant with N
  • Just scale charge pump current with 1/N (x)
  • More detailed analysis will show
  • Both are independent of FOUT, N, and PVT!

20
Complete Self-Biased CGPLL

21
Self-Biased Filter Network

22
Filter Network Reset Switches
  • Can switch to VCTL independent of voltage level

23
Filter Network Reset Switches
D
C
A
B
  • When un-selected, sel 0, sel_B 1 (VDD). V_B
    VDD, V_D VDD V_CTL, V_A 0, V_C V_BR
    V_CTL.
  • V_CA charged to V_CTL

24
Filter Network Reset Switches
D
C
A
B
  • When selected, sel_B 0, sel 1 (VDD). V_A
    VDD, V_C VDD V_CTL, V_B 0, V_D V_BR.
  • V_DB charged to V_BR or V_CTL

25
Inverse-Linear Current Mirror
  • Need to generate ICH ID / N
  • Use switches to adjust device size on input side
  • For N14096, need 12 binary weighted legs
  • Need size range of 20481 ? Too much area!

26
Multi-Stage Linear CM
  • Solution to size problem with LINEAR control
  • Use multiple device groups operating at different
    but ratioed current densities
  • Can have large ranges using small devices

27
Multi-Stage Inverse-Linear CM
  • Just diode connect multi-stage linear current
    source and use as input side of current mirror
  • Can output gate bias of any device group
  • Stable as long as gain blocks reduce currents

28
Complete Current Mirror

29
Voltage-Controlled Oscillator

30
Buffer Tail Node Matching

31
Modified VCO

32
Static Supply Sensitivity

32
33
PLL Implementation

34
Measured Jitter vs N (240MHz)

35
PLL Jitter Measurement Summary
36
Conclusions
  • Proposed PLL achieves wide N and FOUT range
  • PLL is self-biased with constant loop dynamics
    (wN/wREF, z ), independent of N, FOUT , and PVT
  • Sampled feed-forward network suppresses pattern
    jitter with effective wC that tracks wREF
  • Achieves relatively constant period jitter of
    less than 1.7 as N is scaled from 1 to 4096

37
References
  • J. Maneatis et al., Self-biased high-bandwidth
    low-jitter 1-to-4096 multiplier clock generator
    PLL, in IEEE Int. Solid-State Circuits Conf.
    Dig. Tech. Papers, Feb. 2003, pp. 424425.
  • J. Maneatis, Low-jitter process-independent DLL
    and PLL based on self-biased techniques, IEEE J.
    Solid-State Circuits, vol. 31, pp. 17231732,
    Nov. 1996.
  • A. Maxim et al., A low-jitter 1251250 MHz
    process-independent 0.18 m CMOS PLL based on a
    sample-reset loop filter, in IEEE Int.
    Solid-State Circuits Conf. Dig. Tech. Papers,
    Feb. 2001, pp. 394395.
  • T. C. Lee and B. Razavi, A stabilization
    technique for phase-locked frequency
    synthesizers, in Symp. VLSI Circuits Dig. Tech.
    Papers, June 2001, pp. 3942.
  • J. Maneatis and M. Horowitz, Precise delay
    generation using coupled oscillators, IEEE J.
    Solid-State Circuits, vol. 28, pp. 12731282,
    Dec. 1993.
