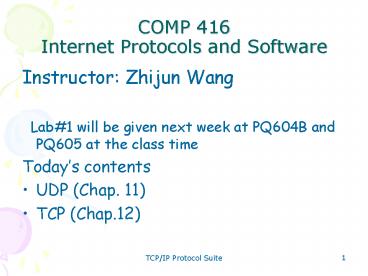

COMP 416Internet Protocols and Software

• Instructor Zhijun Wang
• Lab1 will be given next week at PQ604B and
  PQ605 at the class time
• Todays contents
• UDP (Chap. 11)
• TCP (Chap.12)

2
Key thinks

• What are the major differences between UDP and
  TCP?
• Where are the application domains for UDP and
  TCP?
• Why does TCP work well?
• What are the disadvantages of UDP and TCP?

3
Chapter 11
User DatagramProtocol
Objectives

• Be able to explain process-to-process
  communication
• Know the format of a UDP user datagram
• Understand the operation of UDP
• Know when it is appropriate to use UDP

4
Figure 1 Position of UDP in the TCP/IP
protocol suite
5
Figure 2 UDP versus IP
UDP (User Datagram Protocol) is a connectionless,
unreliable transport protocol. UDP is a simple
protocol using a minimum overhead.
6
Figure 3 Port numbers
UDP uses port number to identify processes. A
port number has 16 bits, the range is from 0 to
65,535. The client process defines itself with a
port number, called ephemeral port number which
is recommended to be greater than 1023. The
server process also defines itself with a port
number which is a well-known port number in the
range 0-1023.
7
Figure 4 IP addresses versus port numbers
IP addresses identify devices Port numbers
identify processes
8
Figure 5 ICANN ranges
ICANN International Corporation for Assigned
Names and Numbers
Well-known ports the ports ranging from 0 to
1023 are assigned and controlled by
ICANN. Registered ports the ports ranging from
1024 to 49,151 are not assigned and
controlled by ICANN. They can only be registered
with ICANN to prevent duplication. Dynamic
ports the ports ranging from 49,152 to 65,535
are neither controlled nor registered. They
can be used as temporary or private numbers
9
Table 1 Well-known ports used with UDP
10
Socket address
Socket address a combination of IP address and a
port number
11
Example 1
An SNMP client residing on a host with IP address
132.23.43.31 sends a message to an SNMP (Port
161) server residing on a host with IP addresses
32.23.2.1. What is the pair of sockets used in
this communication? Solution In the client, the
socket address is IP address combined with an
ephemeral ports X, (132.23.43.31, X). In the
server, the socket address is (32.23.2.1, 161).
12
Figure 6 User datagram format
UDP packets are called user datagrams and have a
fixed-size header of 8 bytes.
Error check for the user datagram
13
Figure 7 Encapsulation and decapsulation
UDP connectionless service User datagrams are
not numbered No relationship between different
user datagrams even if they are coming from the
same user.
UDP unreliable service No flow and error control
14
Figure 8 Queues in UDP
There are one outgoing and one incoming queues
used for sending and receiving datagrams. The
queues usually are identified by the port numbers.
15
Applications of UDP

• UDP is suitable for a process that requires
  simple-response communication with little concern
  for flow and error control
• UDP is suitable for a process with internal flow
  and error-control mechanism, e.g., Trivial File
  Transfer Protocol (TFTP).
• UDP is a suitable transport protocol for
  multicasting.
• UDP is used for management processes such as
  SNMP.
• UDP is used for route updating protocols such as
  Routing Information Protocol (RIP).

16
Congestion Control of UDP

• DCCP Datagram Congestion Control Protocol
• RFC4340 http//www.read.cs.ucla.edu/dccp/rfc4340
  .txt
