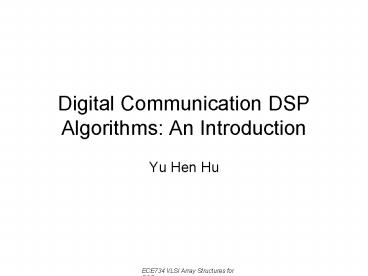

Title: Digital Communication DSP Algorithms: An Introduction


1
Digital Communication DSP Algorithms An
Introduction
  • Yu Hen Hu

2
Outline
  • Digital Modulation
  • Linear Modulation QPSK
  • Constant Envelope Modulation GMSK
  • Combined LM and CEM QAM
  • Direct Sequence Spread Spectrum (DS-SS)
  • Frequency Hopped Spread Spectrum (FH-SS)
  • Channel Equalization
  • Linear equalizer
  • Decision feed-back equalizer
  • Maximum Likelihood Sequence Estimation (MLSE)
    equalizer
  • Channel Coding
  • Block code Reed-Solomon code
  • Convolutional Code Viterbi decoding

3
Digital Modulation
  • Modulation is the process to translate a
    base-band message signal into a high frequency
    band-pass modulated signal to facilitate
    efficient transmission.
  • Analog modulation examples include AM (amplitude
    modulation), FM (frequency modulation).
  • In digital communication, the message is a
    sequence of symbols, each representing n-bit
    information.
  • Each symbol will be mapped into a modulation
    signal selected from finite set of them (M2n)
  • S s1(t), s2(t), , sM(t)
  • Types of digital modulation
  • Linear modulation
  • Constant envelope modulation
  • Combined LM and CEM
  • Spread spectrum modulation
  • Direct sequence
  • Frequency hopping

4
Linear Modulation QPSK
  • Linear Modulation
  • s(t) ReA m(t) exp(j?ct)
  • For Quadrature Phase Shift Key (QPSK)
  • sk(t) A cos?ct k?/2
  • K 0, 1, 2, 3
  • Source sequence broken into odd and even entries,
    low-pass filtered and then modulated with two
    carriers with 90o phase shift s0, s2 and s1,
    s3

LPF
X
Oscillator
odd
QPSK signal
Serial to Parallel
BPF
?
m(t)
90o
even
LPF
X
Carrier frequency Base-band
QPSK Transmitter
5
QPSK (Receiver)
  • AMPS, USDC (IS-54) wireless systems use ?/4 DQPSK
    modulation
  • Decision circuits
  • Channel equalization
  • Channel decoding

LPF
X
Decision Circuit
Carrier Recovery Circuit
Symbol Timing Recovery
m(t)
Multiplex
BPF
QPSK signal
90o
Decision Circuit
LPF
X
Carrier frequency Base-band
QPSK Receiver
6
Constant Envelope Modulation
  • The amplitude of modulated waveform is constant.
  • A Gaussian Minimum Shift Key (GMSK) modulation is
    used in GSM (global system for mobile) digital
    cellular system.
  • GMSK transmitter consists of a Gaussian LPF and
    an analog FM transmitter!
  • GMSK receiver can be realized with simple digital
    circuits and a VCO (voltage controlled
    oscillator).

7
LM CEM QAM/OFDM
  • QAM Quadrature amplitude modulation
  • 0 ? t ? T
  • ai,bi are grid points of a square in a 2D
    signal constellation. E.g 16QAM
  • OFDM Orthogonal frequency division multiplexing
  • 0 ? t ? T
  • M transmitted signals are equal energy, equal
    duration, off-set by frequency of 1/2T Hz.
  • DFT may be applied for demodulation.

8
Spread Spectrum Technology
  • In conventional modulation methods, the overall
    band-width of modulated signal is minimized so
    that more channels can transmit simultaneously.
  • Spread spectrum, on the other hand, spread the
    modulated signal to a wide-band signal.
  • Spread spectrum was developed for military
    application for its anti-jamming capability.
  • In a multiple access system, spread spectrum
    techniques, in theory, allows more users to share
    the same band-width in the same region due to its
    tolerance to jamming characteristics.

9
DS-SS Direct Sequence Spread Spectrum
s(t)
Baseband BPF
m(t)
X
X
  • m(t) ?1 over symbol time Ts
  • p(t) ?1 over chip time Tc is the pseudo-random
    sequence. p(t) can be generated using a linear
    feedback shift register clocked by the chip
    clock.
  • Ts n Tc
  • To demodulate, multiply sss(t) by p(t) at
    receiver. Since p2(t) 1, the signal is
    recovered. Note that receiver must know p(t) and
    correct timing information.

PN Code Generator
Oscillator fc
DS-SS Transmitter
r(t)
m(t)
X
X
cos(?ct?)
p(t)
DS-SS Receiver
10
FH-SS Frequency Hopping Spread Spectrum
m(t)
s(t)
Modulator
X
FH-SS Transmitter
Oscillator
Frequency Synthesizer
p(t)
m(t)
s(t)
Wideband Filter
Bandpass Filter
X
Demodulator
Frequency Synthesizer
Synchronization System
FH-SS Receiver
p(t)
