Writing Graphic Applications

1

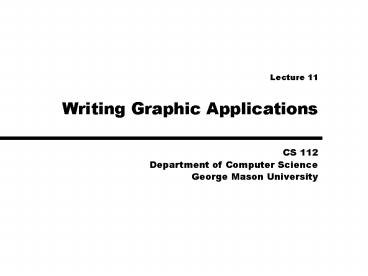

Writing Graphic Applications

• Lecture 11

2
Simplest Graphic Application

• Import the java.swing. for the JFrame
• A public class that has a main method
• The main method has
• A JFrame declared, created
• One content pane is requested
• A label is added to the contentpane
• The frame is made visible

3
SIMPLE GRAPHICS APPLICATION

• import javax.swing.
• public class simplegraphics
• public static void main(String args)
• //declaring and creating a frame and label
• JFrame framenew JFrame(I am a frame)
• JLabel label new JLabel(I am a label)
• //getting a pane for the frame and adding the
  label to the pane.
• frame.getContentPane().add(label)
• //make the frame visible when the program
  executes
• frame.setVisible(true)
• Simple.java -Simple Graphics Program

4
adding components

• Other components can be added directly to the
  ContentPane of the frame. Jpanel objects and
  other components can be created in main and added
  to the content pane,
• Alternatively an object of a custom panel can be
  created in main and write the custom panel class.
  The other components will be created here and
  added to the panel.
• For either option, if interactive components,
  such as buttons are used, an implementation of
  the ActionListener interface is required. This
  means an actionPerformed method either
• in the class where the buttons and textfield are
  created or
• write a new class with this method in it, and
  declare an object of this class where the buttons
  and textfield are created.

5
The option we have usually used

• We have usually had a separate class for the
  panel and components
• One class with main, in which you declare and
  create a frame, and declare and create a custom
  panel (instead of a plain JPanel, its a MyJPanel
  which extends JPanel and is defined in another
  class), and add the panel to a ContentPane of
  the frame
• We then have a second custom panel class. This
  class extends Jpanel. In this class we create
  and add components.
• We also declare and create a custom
  actionlistener or have the the listener method
  (e.g. actionPerformed) in this class. If we
  declare a custome listener, then a third class is
  written for our custom actionlistener either as
  an inner class or as a separate class. It
  implements ActionListener interface and has only
  one method, the actionPerformed method
• Why?

6
It makes the program cleaner

• Without a separate panel class, everything is
  done in the main method.
• The frame is created, a contentpane is gotten
• If there is a panel, it is declared and created
• The buttons and textfields and actionlisteners
  are declared and created
• The buttons and textfields are added to the panel
  or frame
• The actionlisteners are added to the buttons and
  textfields
• The custom actionlistener is declared and created
  or the actionPerformed is written in the same
  class.
• When more components are added, main becomes long
  and complicated, harder to maintain or modify.

7
The programs that follow will have at least two
classes

• One class will have the main method. In this
  method, a frame will be created, and one or more
  custom panel objects will be created and added to
  the frame.
• Another class will extend JPanel, will have a
  constructor method, in which components (such as
  buttons) will be created and added to the panel,
  custom actionlistener object(s) will be created
  and added to the components. This class may also
  override the paintComponent() method (which
  paints the screen) to provide repainting of the
  screen at particular. If the program has
  components,
• The custom panel class will also ll implement
  ActionListener or other Listeners and will
  contain the methods that the listener interfaces
  require, such as actionPerformed
• More classes will be added If the programs use
  objects of other classes, which have to be
  defined.

8
Menu

• Given this structure how would you use
• Control Structures
• Arrays
• Additional classes representing objects
• Class concepts, such as inheritance, interfaces
• Dialog boxes
• Timer class for animation
• String methods

9
Control Structures

• Drawing different shapes with radio button
  options
• ControlMain11 (class with main)
• ControlPanel11 (custom JPanel class)
• Notice the use of the switch structure
• Notice the set up of radio buttons in groups
• Notice the use of Random() to get pixel sizes and
  locations
• Random Circles fitting into 400x400 panel
• RandomCirclesMain (class with main)
• RandomCirclesPanel (custom panel)
• Note that this is only one simple method of
  insuring circle is inside panel..

10
Additional Class

• Candy Machine Representation -restocking and
  selling
• CandyMachine (class for candy machine object)
• UseMachine (class with main)
• CPanel (custom panel class)

11
Arrays and Layouts

• Keypad that displays last number pressed and can
  be reset
• OOMain11 (class with main)
• OOPanel11 (custom panel)
• Note the use of the grid layout on a panel that
  is placed in the Center of a Border Layout
• Note the two statements that are necessary to
  create a JButton array. The array must be
  declared and then the Jbutton constructor must be
  called for each element

12
Arrays and Additional Class

• Skyline at night -Using additional classes
• ClassMain11 (class with main)
• ClassPanel11 (custom JPanel class)
• Notice that the buildings move everytime you
  resize the frame. This is because the
  paintComponent method is called to redraw the
  screen and it resets the x, y locations of the
  buildings.
• What would you do to make 50 buildings instead of
  20?
• Suppose you wanted to also have round buildings?

13
Control Structures and Arrays

• Checkerboard with checkers
• ArrayMain11 (class with main)
• ArrayPanel11.java ( custom JPanel class)
• Notice that the array is in the main method and
  it is a two dimensional array to draw the
  checkerboard.
• The checkers areare drawn in paintComponent each
  time a square(panel )is created . A random
  number is called to determine whether to draw a
  checker,another to determine if it should be red
  or black.
• Up to 5 red checkers are drawn and up to 8 black
  checkers. The numbers of checkers drawn must be
  static, to keep the count the same for each
  panel.

14
Mouse Events and Arrays

• Draws Lines with Mouse and remembers them
• RubberLines.java (class with main)
• RubberPanel.java (panel with mouse listeners
  which draws line)
• This shows the use of the MouseListener
  Interfaces and the methods that must be included.
  Some are empty but still must be included.

15
Dialog Boxes

• Dialog Boxes Program
• DialogBoxMain.java (dialog boxes in main method)
• Using Dialog box to do input and output

16
Graphics with arrays and additional class

• Draw a box of crayons
• CrayonMain11.java (class with main)
• CrayonPanel.java (custom panel) with crayon and
  color arrays
• Crayon.java (class defining a crayon)
• Notice that paintComponent(Graphics g) is called
  everytime you resize the screen. That means that
  you must set up your loops in paintComponent and
  in the draw method in Crayon so that they repeat.
  If you used a while loop that kept adding to the
  index, it would be out of bounds on the first
  resize.

17
Graphics with Other Classes and Arrays

• Bank Account-open account, deposit and withdraw
• ManageAccount.java(with main method)
• AccountPanel.java (setting up textfields and
  buttons for GUI and creating an array of bank
  accounts, blank ones to be used as users ask for
  new accounts
• BankAccount.java (class representing a bank
  account) contains name, address (of Address
  class) and balance
• Address.java (class has all address fields)
• Note the use of nested classes, Address class
  object is a variable of the BankAccount class

18
Images and Timer class for animation

• The real Turtle moves in a wave motion
• ImageMain11.java (class with main)
• ImagePanel11.java (custom panel class) where
  turtle image is added, implementing
  ActionListener
• Note that image is added by using ImageIcon
  object
• Note that if you do not check for x, y and change
  direction, you may never see the turtle because
  if x, and y just increase never decrease resizing
  may put them off the frame.

19
Arrays and String methods and the String
Tokenizer class

• Program to translate sentences into piglatin
• PigLatinMain.java (class with main, frame)
• PigLatinPanel.java (custom panel class)

20
Additional class and complex actionPerformed

• Lotto Game-guess numbers or let computer pick
  numbers and win
• Project3.java (class with main)
• LottoPanel.java (custom panel class)sets up radio
  buttons and textfields and implements
  ActionListener (has actionPerformed method which
  directs the game activities)
• Lotto.java (class representing game)- a Lotto
  object is created when the program is run, the
  methods set up games, pick numbers and determine
  winners and jackpots.

21
Special Topic The Event Thread

• In our previous example
• import javax.swing.JFrame // trust us
• import javax.swing.JButton // trust us
• public class Example
• public static void main(String args)
• JFrame frame new JFrame("Button Example")
• frame.getContentPane().add(new JButton("Press
  me!"))
• frame.show()
• ... if you run the program, notice that the
  window stays up with the button. The program
  doesn't quit.
• But isn't the program supposed to quit after the
  last statement in main has been executed?

22
Special Topic The Event Thread

• Yes and no.
• When you create a GUI widget (like a JFrame or a
  JButton), Java fires up the GUI's event thread.
• Now you have two things "running" in your
  program your main thread (created when you
  started main() ) and the GUI's event thread.
• A program won't quit until all threads have quit.
  Even if your main thread has exited, the GUI
  event thread is still going. So your program
  will continue to run.
